YASKAWA DX100 Operator's Manual

3 Teaching
3.2 Teaching Operation
3-17
155507-1CD
RE-CSO-A037
DX100

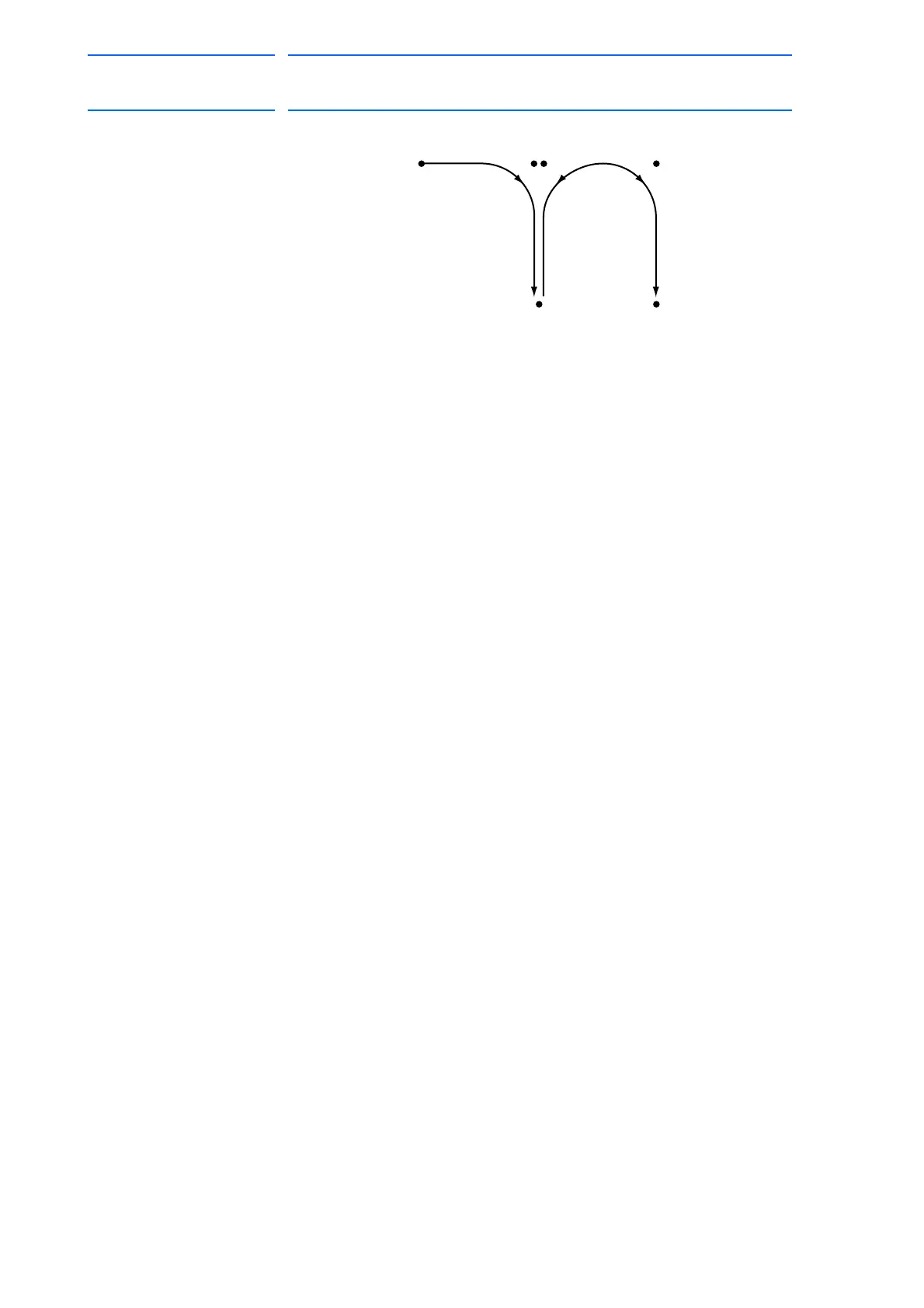

For example, to perform the movement steps shown below, set as follows:
Steps P2, P4, and P5 are simple passing points, and do not require
accurate positioning. Adding PL=1 to 8 to the move instructions of these
steps moves the manipulator around the inner corners, thereby reducing
the cycle time.
If complete positioning is necessary as P3 or P6, add PL=0.
<EXAMPLE>
Passing points P2, P4, and P5:
MOVL V=138 PL=3
Positioning point P3 and P6:
MOVL V=138 PL=0
P1 P2 P4
P3
P5
P6
100 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
