YASKAWA DX100 Operator's Manual

1-1
155507-1CD
RE-CSO-A037
DX100
1 Introduction
1.1 DX100 Overview
1Introduction
1.1 DX100 Overview
The main power switch and the door lock are located on the front of the
DX100 controller. The emergency stop button is installed in the upper
right corner of the cabinet door and the programming pendant hangs from
a hook below the button.
For information on setup, installation, and connection of the DX100
system, refer to the “DX100 INSTRUCTIONS”.

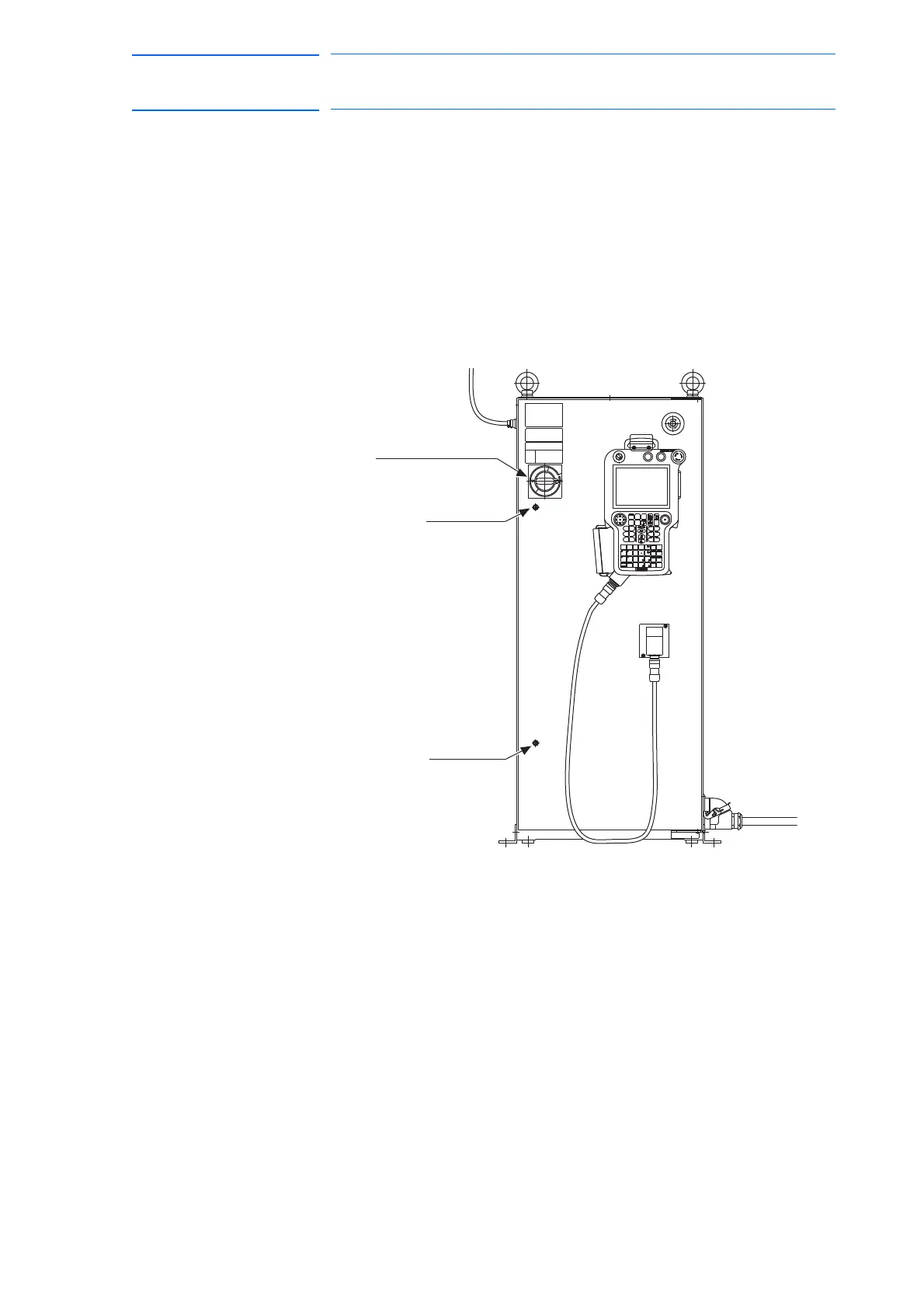

Fig. 1-1: DX100 Front View
Main power switch
Door lock
Door lock
29 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
