6 Convenient Functions
6.1 One-touch Operation “Direct Open”
6 Convenient Functions
6.1 One-touch Operation “Direct Open”
The direct open function immediately shows the JOB CONTENT window
or condition file contents of a job called by the CALL instruction. Move the
cursor to the desired job name or condition file name and simply press the
direct open key to display the contents of the file. This function can
be used for the following window: 
• JOB CONTENT window for a job name directly specified by a CALL
instruction
• CONDITION FILE window for a file name directly specified by a work
instruction
• COMMAND POS window for a move instruction
• I/O window with an I/O instruction (when I/O numbers are specified)

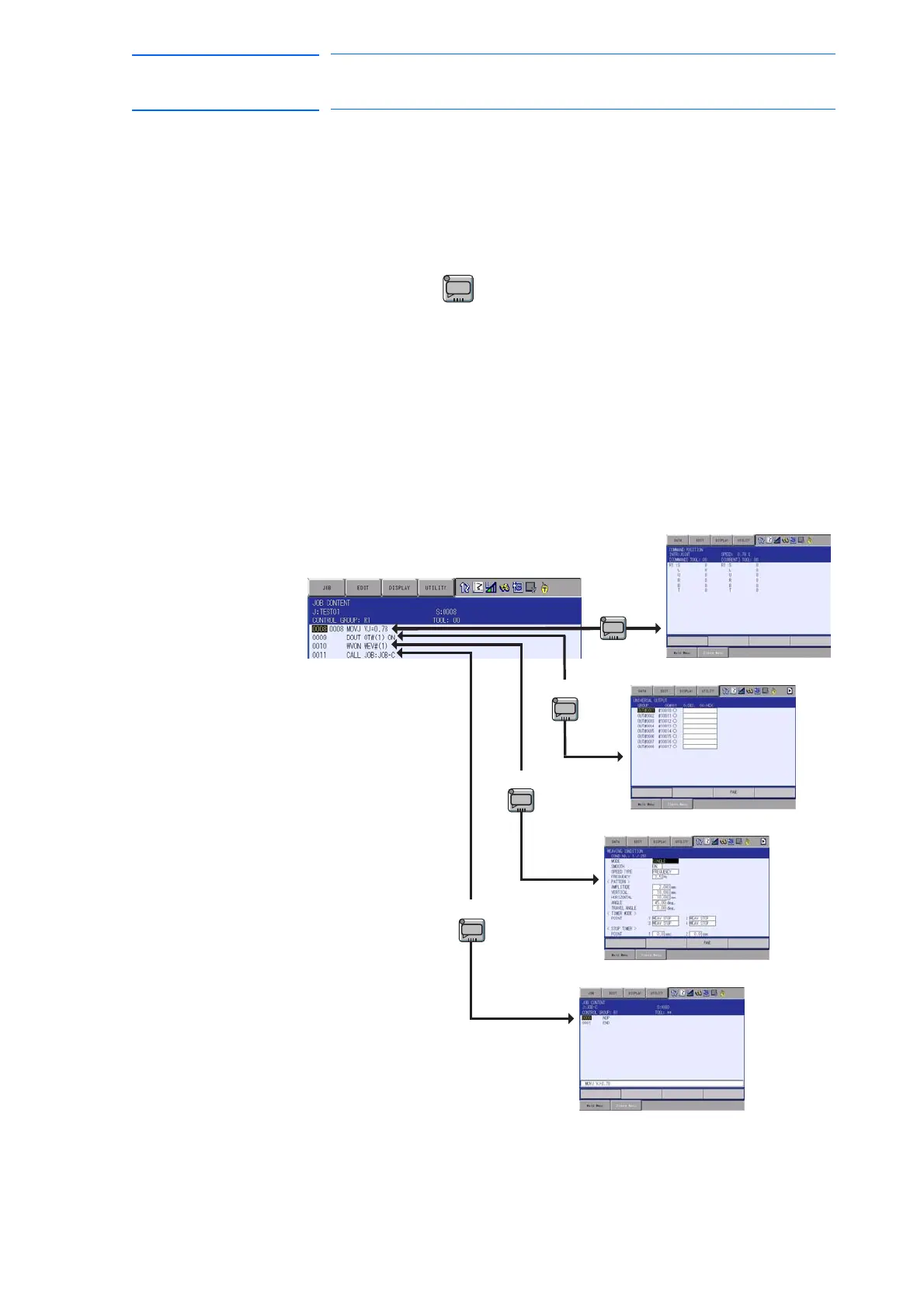

<Example> Example Using Direct Open
DIRECT
OPEN
DIRECT
OPEN
COMMAND POS window
USER OUTPUT window
WEAVING CONDITION window
JOB CONTENT window for "JOB-C"
In the 8th line
In the 9th line
In the 10th line
In the 11th line
DIRECT
OPEN
DIRECT
OPEN
DIRECT
OPEN
DIRECT
OPEN
DIRECT
OPEN
DIRECT
OPEN
DIRECT
OPEN
DIRECT
OPEN
