YASKAWA DX100 Operator's Manual

6 Convenient Functions
6.7 Multi Window Function
6-72
155507-1CD
RE-CSO-A037
DX100
6.7.4.2 Switching of Active Window
Switch the active window in the multi window displaying mode.
1. Set the mode of the general-purpose displaying area to multi window
mode.
2. Key Operation:
Press [MULT] key

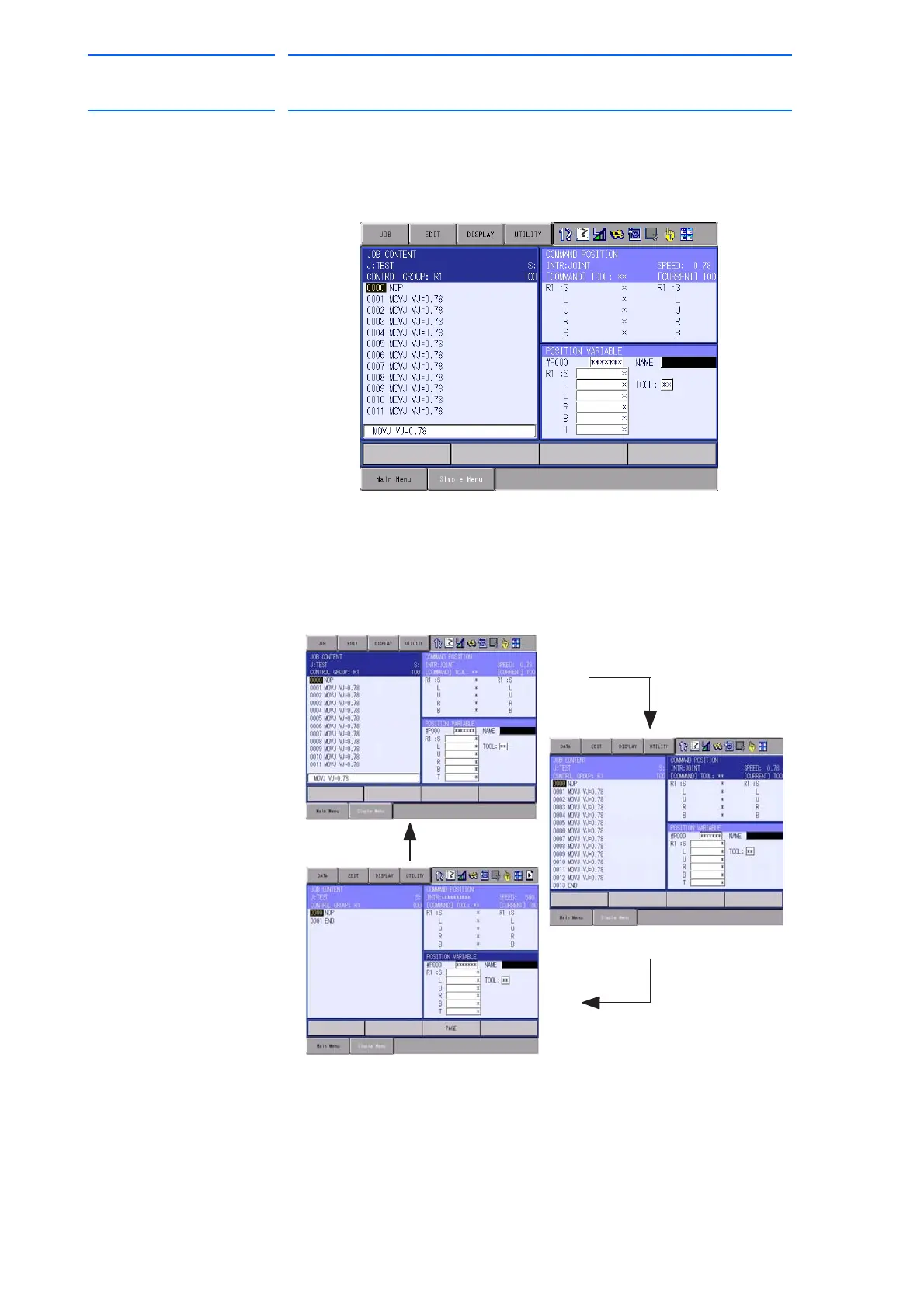

– The window to be active shifts. The active window shifts in the order
mentioned in section 6.7.2 “Setting the Dividing Pattern of the
General-Purpose Display Area” on page 6-63.
(1
2341······)
3. Touching Operation:
Touch the window to be active.
– The touched window becomes active.
312 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
