3 Teaching

3.3 Checking Steps

3.3.1.2 Selecting Manual Speed

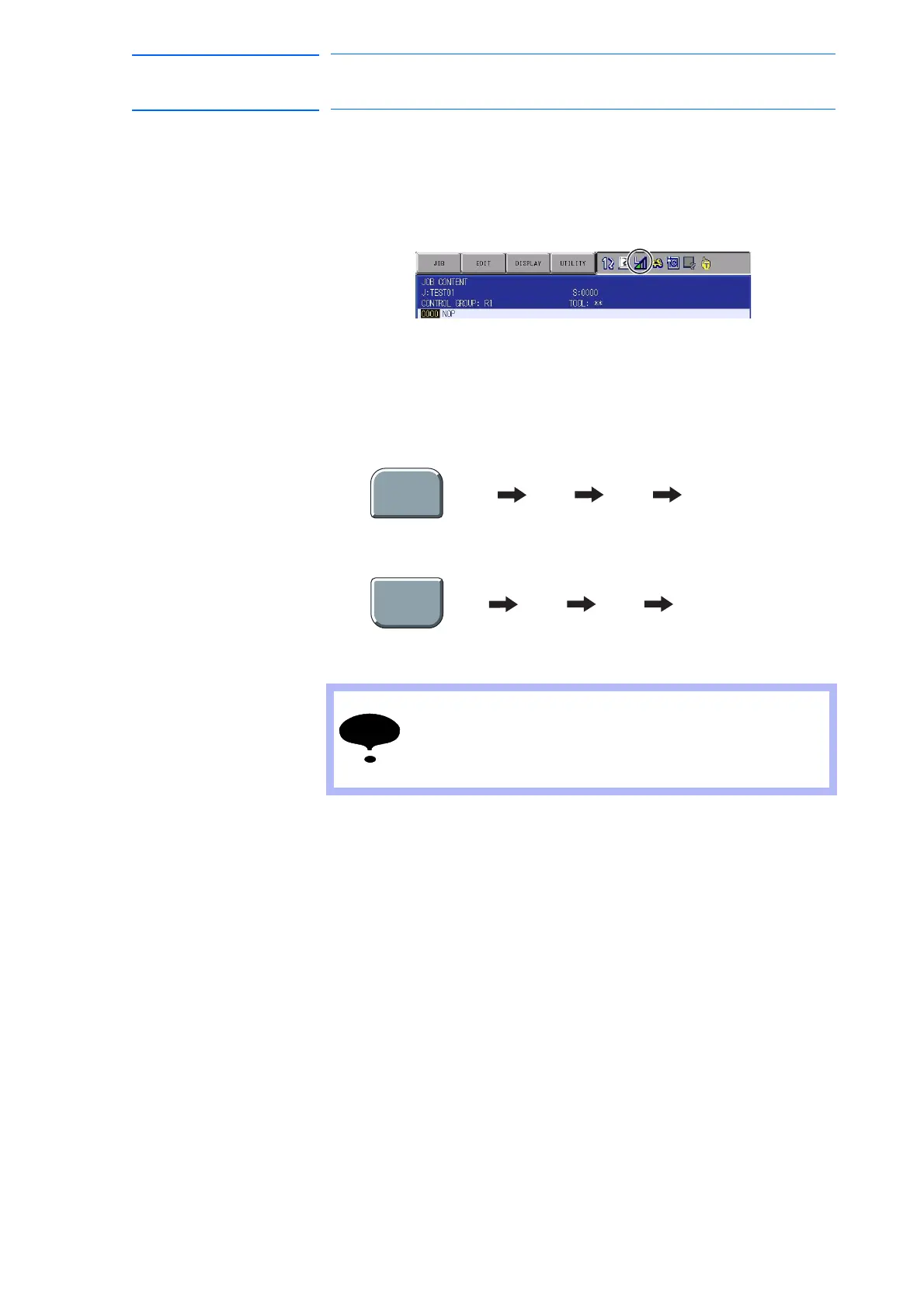

When [FWD] or [BWD] is pressed, the manipulator moves at the

manual speed selected at that time. Selected manual speed can

be checked by the manual speed indication on the programming

pendant.

Manual speed is set with [FAST] and [SLOW]. FWD operation can be

performed at a high speed by pressing [HIGH SPEED]. Follow these

procedures to select a manual speed.

• Each time [FAST] is pressed, the speed switches in the order of

“INCH”

”SLOW””MED””FAST”. 

INCH SLW MED FST

• Each time [SLOW] is pressed, the speed switches in the order of

“FAST”

“MED”“SLOW”“INCH”. 

FST MED SLW INCH 

NOTE

• FWD/BWD operation is performed with SLW speed even if

INCH is selected.

• [HIGH SPEED] is available only for the FWD operation but

not for BWD operation.

FAST

SLOW
