YASKAWA DX100 Operator's Manual

3 Teaching
3.9 Other Job-editing Functions
3-83
155507-1CD
RE-CSO-A037
DX100
3.9.4.4 Displaying Position Variables

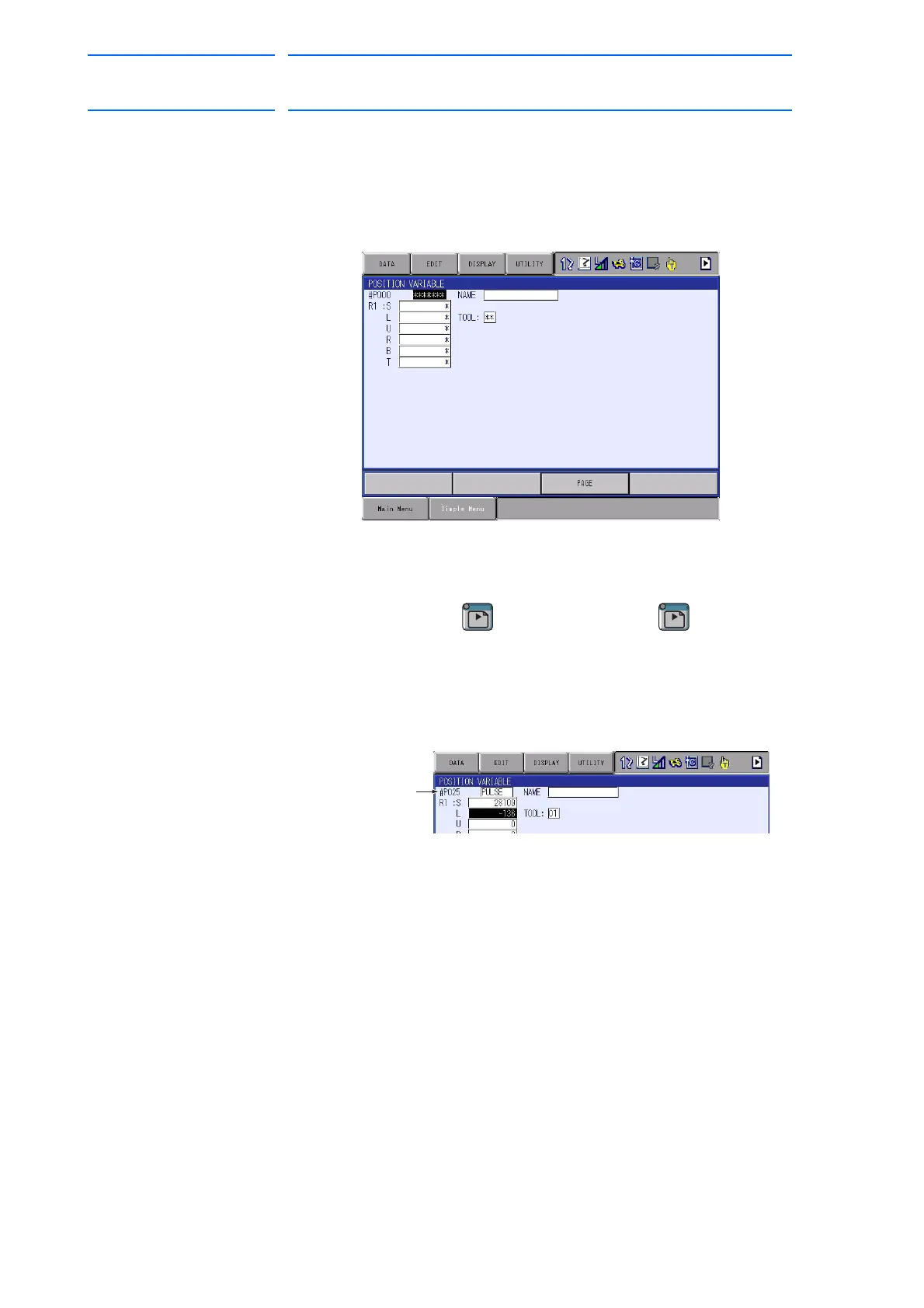

1. Select {VARIABLE} under the main menu.
2. Select desired position variable type.
– The POSITION VARIABLE window of desired type among robot
type, base type, and station type appears.
3. Move to a page with the objective variable number.
– When the desired variable number is not displayed, move the cursor
with either of the following operations.
• Press the page key or [SHIFT] + page key .
• Press page button, then input the variable No. using the Numeric
keys and press [ENTER].
• Move the cursor to the menu area and select {EDIT}  {SEARCH}.
Then input the variable No. with the Numeric keys and press
[ENTER].
PAGE
GO BACK
PAGE
GO BACK
PAGE
GO BACK
PAGE
GO BACK
Move to desired
variable number
page.
166 of 554
