YASKAWA DX100 Operator's Manual

6 Convenient Functions
6.11 Energy-Saving Function
6-118
155507-1CD
RE-CSO-A037
DX100

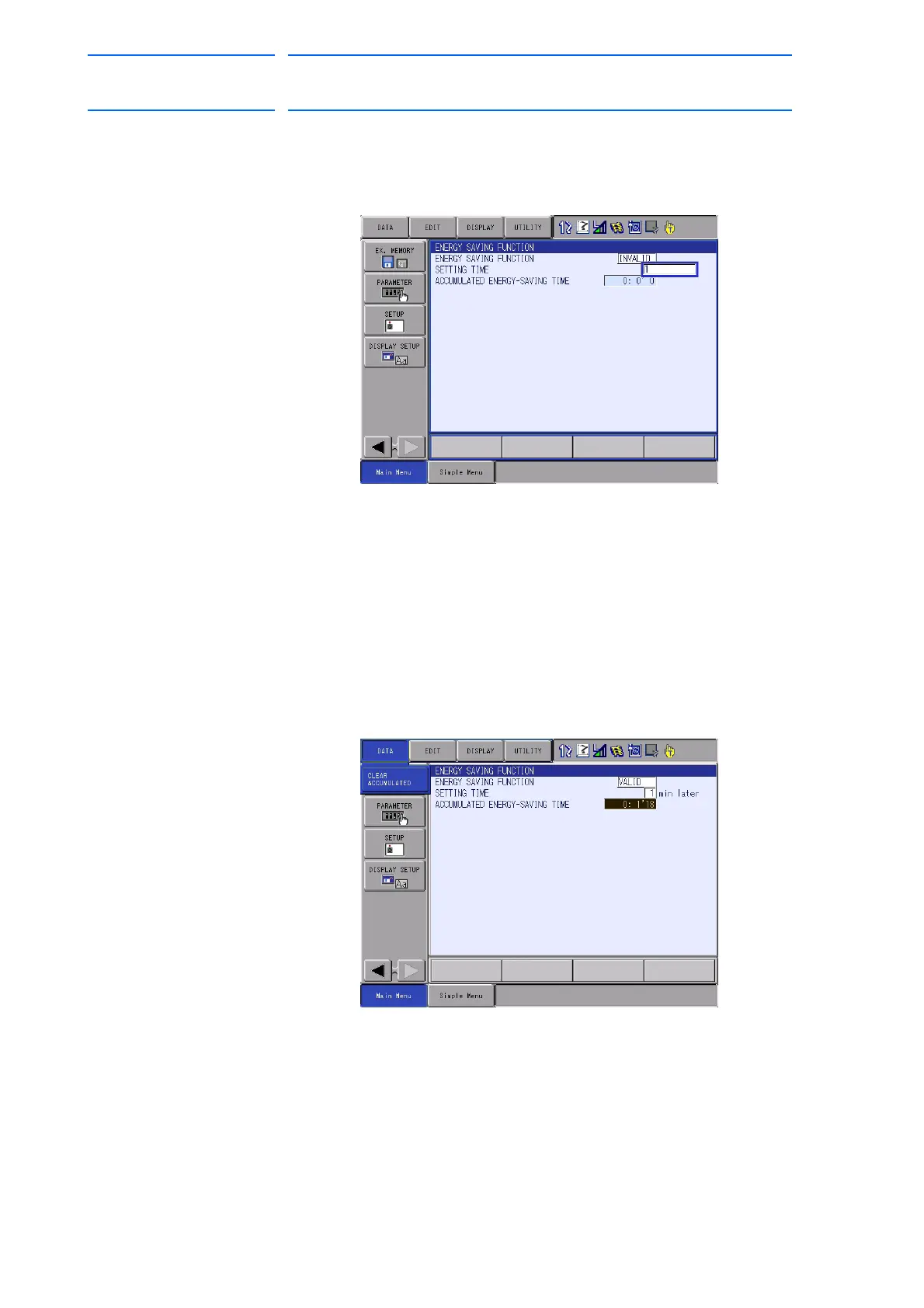

4. Move the cursor key to {SETTING TIME} and press [SELECT] key.
– Input the time you want to start energy-saving after the robot is
stopped into {SETTING TIME} section (unit: min.). The initial value
is set to 10 min. and the range of the inputting value is from 1 to 60.
6.11.2.2 Accumulated Energy-Saving Time Clearance
1. Select {SETUP} under main menu.
2. Select {ENERGY SAVING FUNCTION}.
– Energy-saving function window appears.
3. Move the cursor key to {ACCUMULTED ENERGY-SAVING TIME}.
4. Move the cursor key to {DATA} and press [SELECT] key.
– “CLEAR ACCUMULTED” appears in the pull-down menu.
358 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
