6 Convenient Functions
6.4 Parallel Shift Job Conversion Function
6.4.3 Executing the Parallel Shift Job Conversion

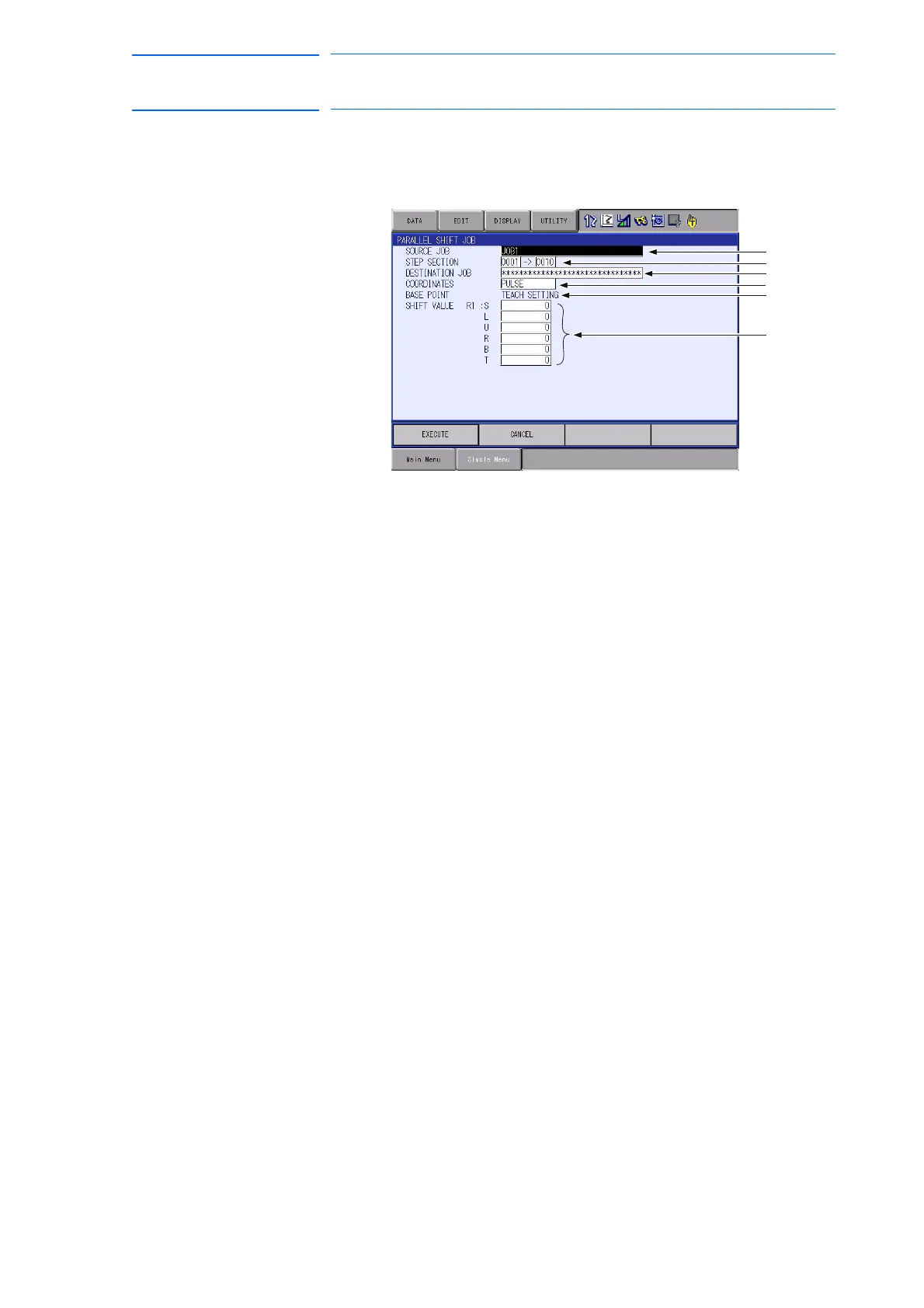

6.4.3.1 Window Display
A. SOURCE JOB
Selects the job before conversion. The job which is shown in the JOB
CONTENT window is set initially. To change the job, perform the
following procedure.
Move the cursor to the job name and press [SELECT]. The JOB LIST
window appears. Select the desired job.
B. STEP SECTION (Start Step End Step)
Specifies the step section of the source job. All the steps are set initially.
If there is no step in the source job, “***” is displayed. To change the
section, perform the following procedure.
Move the cursor to the step section indication and press [SELECT].
The input buffer line appears. Input the step number and press
[ENTER].
C. DESTINATION JOB
Specifies the converted job. If this is not specified ( “********” is
displayed), the source job is overwritten with a job after conversion. If
the converted job is specified, the source job is copied and converted.
To change the job, perform the following procedure.
Move the cursor to the converted job name indication and press
[SELECT]. The character input line appears. The source job name is
displayed in the input line. To enter a job name without using the source
job name, press [CANCEL] and then input a job name.
D. COORDINATES
Selects the conversion coordinates. Move the cursor to the coordinates
name and press [SELECT]. The selection dialog box appears. Select
the desired coordinates.
When the user coordinates are selected, the input buffer line appears.
Input the desired user coordinate number and press [ENTER].
E. BASE POINT
Calculates the difference by the two teaching points as a shift value.
