6-79
155507-1CD
RE-CSO-A037
DX100
6 Convenient Functions
6.8 Simple Menu Function

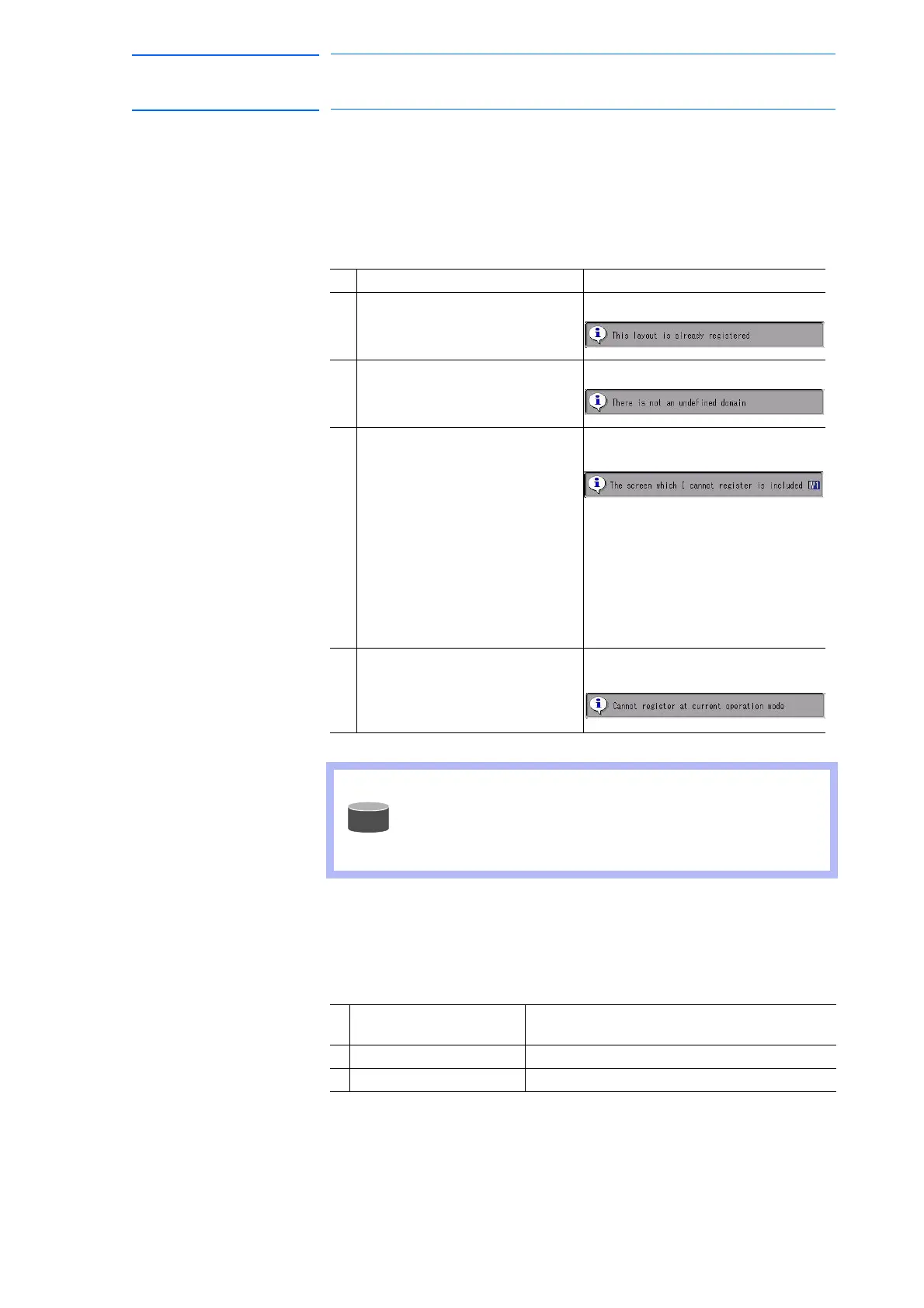

6.8.2.3 Conditions to Register the Layout
There are some cases that the layout patterns cannot be registered to
“USER DEFINITION” menu.
Followings are the conditions and the messages that the layout is refused
to register.
6.8.2.4 The Displayed Layout Name
After a layout pattern is registered to “USER DEFINITION” menu, it is
named in accordance with the status of the general-purpose display area
when the layout pattern is created.
Refer to the followings for the details.
It is possible to change the name even after the name is registered. Refer
to section 6.8.4.3 “Change the Name of Registered Layout Name” on
page 6-84.
Condition Message
1 when the layout is already
registered.
This layout is already registered.
2 when eight layouts are already
registered.
There is not an undefined domain.
3 When the registering layout
includes the window which cannot
be started up from the main menu.
The screen which I cannot register is
included [W1W2W3W4]
(The number W1 to W4 indicates the
windows which are actually displayed
on the general-purpose display area,
however, the highlighted numbered
window cannot be registered.
*For the layout of 1 to 4,refer to Table
6-3 "Display the dividing Pattern" on
page 6-63.
4 When a single window is displayed
under the multi window mode.
Cannot register at current operation
mode.
The screens which cannot be started up from the main menu
are impossible to register.
Also, the layout of the screens that are called up from {FD/
PC CARD} or ladder editor (optional function) cannot be
registered.
Status of general-
purpose display area
Name registered to “USER DEFINITION”
Menu
1 Single window mode (Same as the sub menu in main menu)
2 Multi window mode Layout -n (“n” should be a number from 0 to 7)
To Next Page
