6 Convenient Functions
6.12 Instruction Displaying Color Setting Function
6.12 Instruction Displaying Color Setting Function
6.12.1 Setting the Instruction Displaying Color on the Job Window
1)
With this function, each instruction can be displayed on a color to color
basis on the job window.
The following instructions are the subject of this function.
• Move instruction
• DEVICE instruction
• Comment instruction
• Label instruction
• Macro instruction (when the macro function is effective)
• I/O instruction
• All the instructions other than listed above
The color of each instruction in the job window can be set on the DISPLAY
COLOR CONDITION SETTING window.

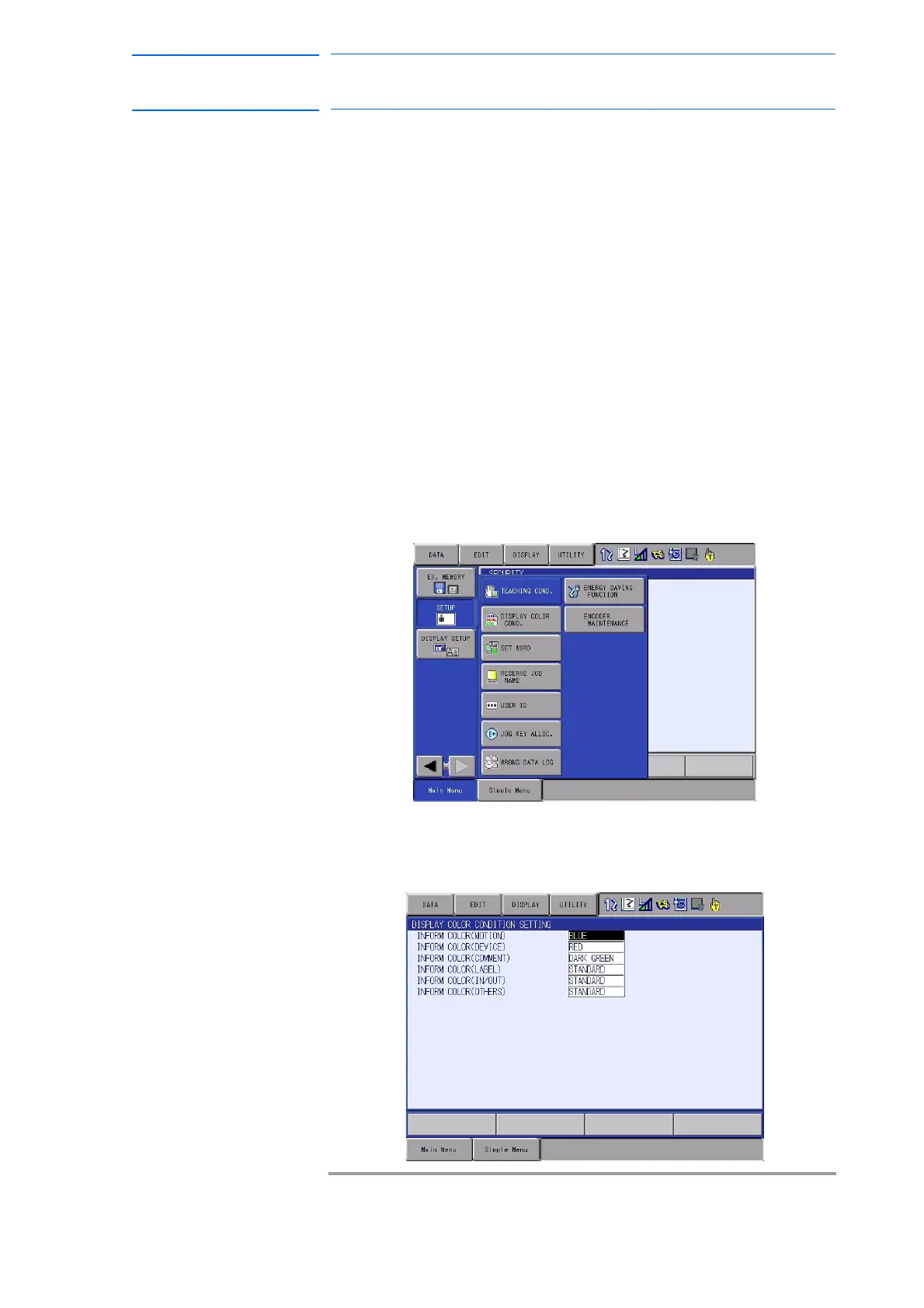

1. Select {SETUP} under the main menu.
2. Select {DISPLAY COLOR CONDITION SETTING}.
– The display color condition setting window appears.
1 Instruction displaying color setting function on the job window is available from
version DS2.00-00.
361 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
