6.8.2.2 Register by Key Operation
Use the programming pendant keys to register the layout patterns to
“USER DEFINITION” menu.
1. Press [SHIFT] + [SIMPLE MENU] keys while the layout pattern to be
registered is on the general-purpose display area.

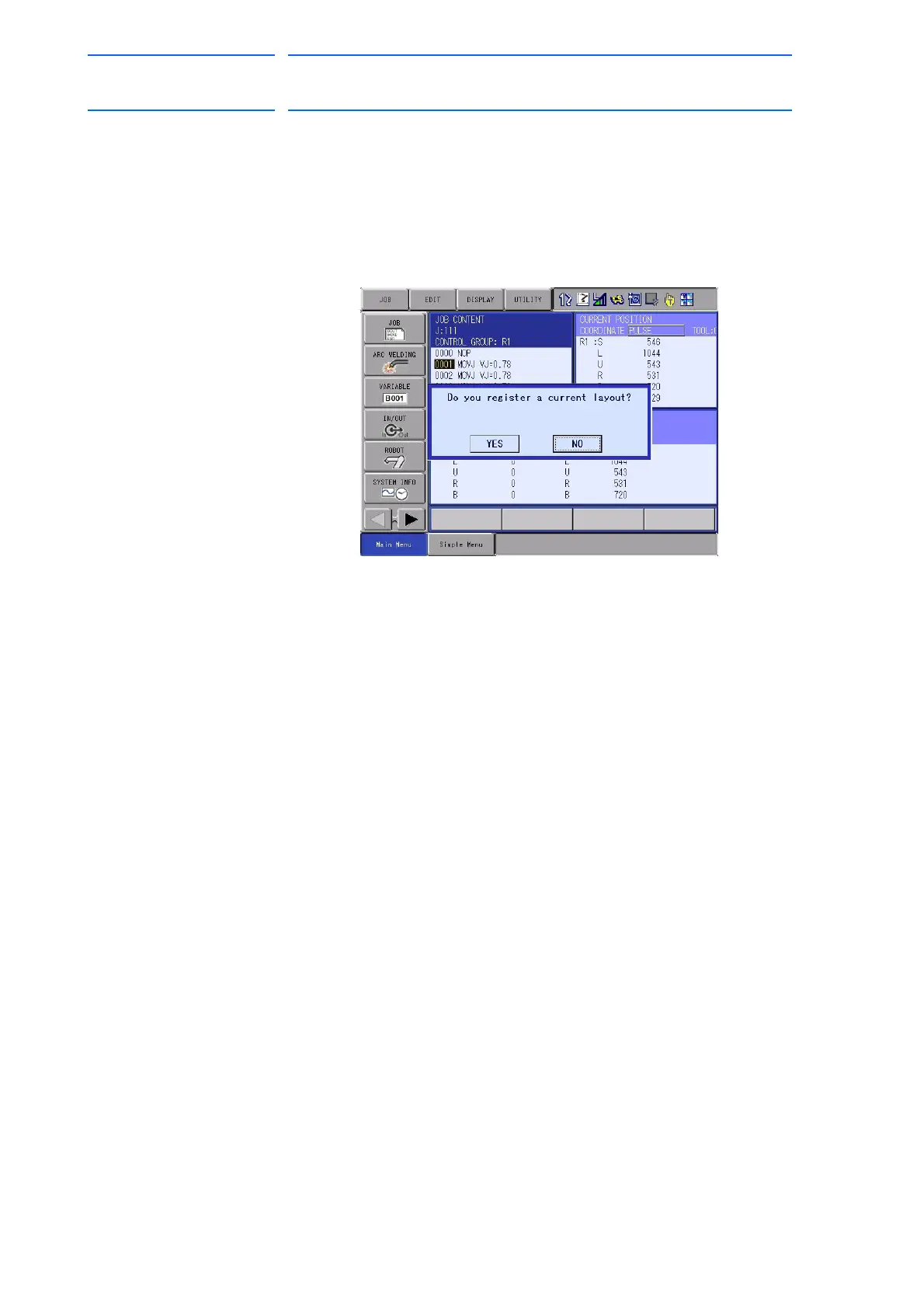

– The message “Do you register a current layout?” appears in the
confirmation dialog box.
2. Select {YES}.
– The layout is registered and the dialog box closes.
*It will not be registered when {NO} is selected.
