YASKAWA DX100 Operator's Manual

6 Convenient Functions
6.8 Simple Menu Function
6-84
155507-1CD
RE-CSO-A037
DX100
6.8.4.3 Change the Name of Registered Layout Name
The registered layout names can be changed.

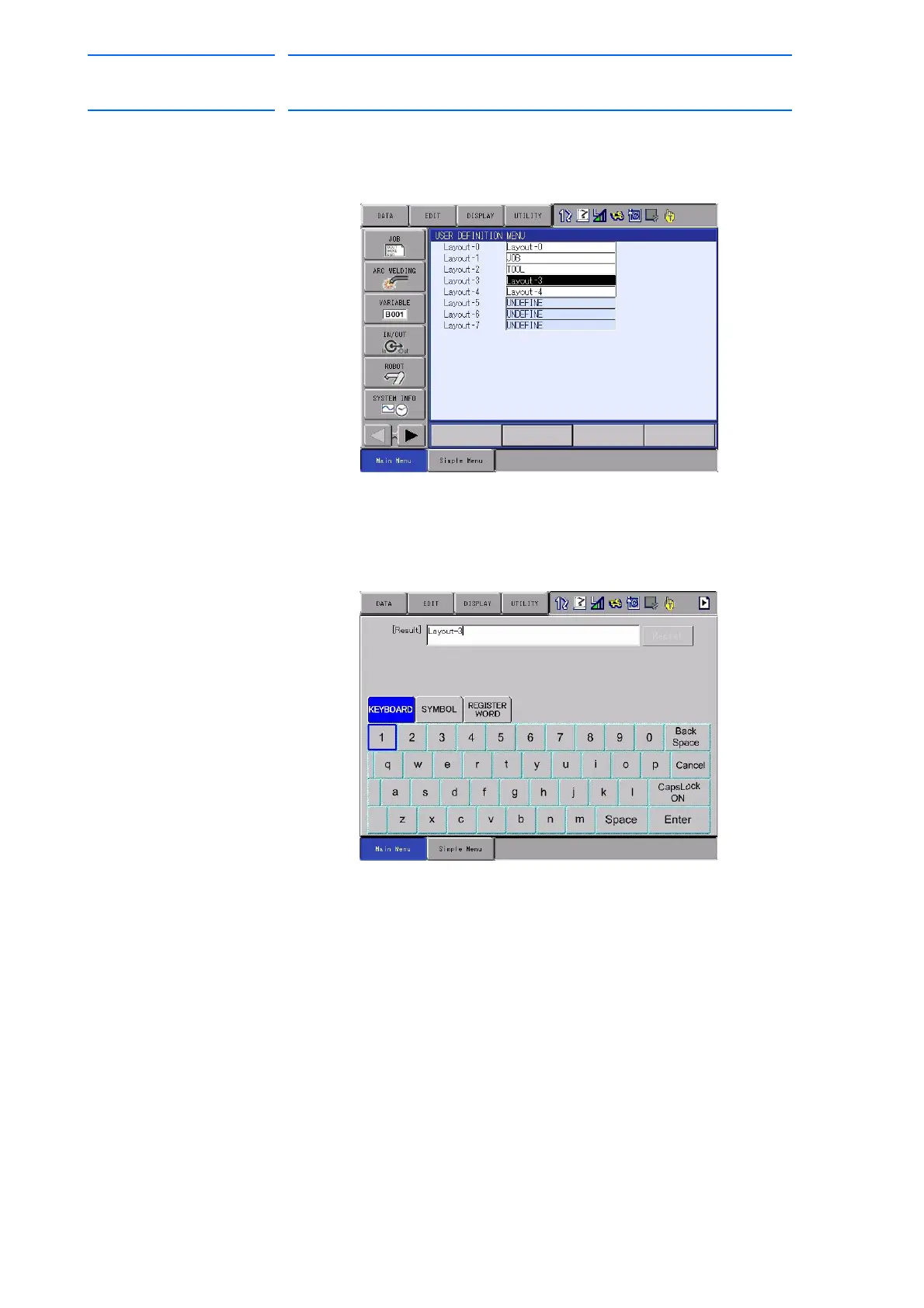

1. Display “USER DEFINITION MENU” window.
2. Move the cursor key to the layout name to be changed and press
[SELECT] key.
– The software key pad for inputting letters appears.
324 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
