YASKAWA DX100 Operator's Manual

8 Parameter
8.8 Hardware Control Parameters
8-51
155507-1CD
RE-CSO-A037
DX100
8.8 Hardware Control Parameters
These parameters make the hardware settings for fan alarm or relay
operation, etc.
8.8.0.1 S2C646: ANTICIPATOR FUNCTION
This parameter specifies anticipation output.
The anticipator function is a function to quicken or slow the ON/OFF timing
of four user output signals and two user output groups. Using this
function, signal output can be carried out before or after the step is
reached. As a result, timing deviation due to delayed motion of peripheral
devices and robot motion can be adjusted.
Setting the time to a negative value (-) advances the signal output.
This setting is effective when adjusting timing deviation due to delayed
motion of peripheral devices.
Setting the time to a positive value (+) delays the signal output.
This setting is effective when adjusting timing deviation due to delayed
robot motion.

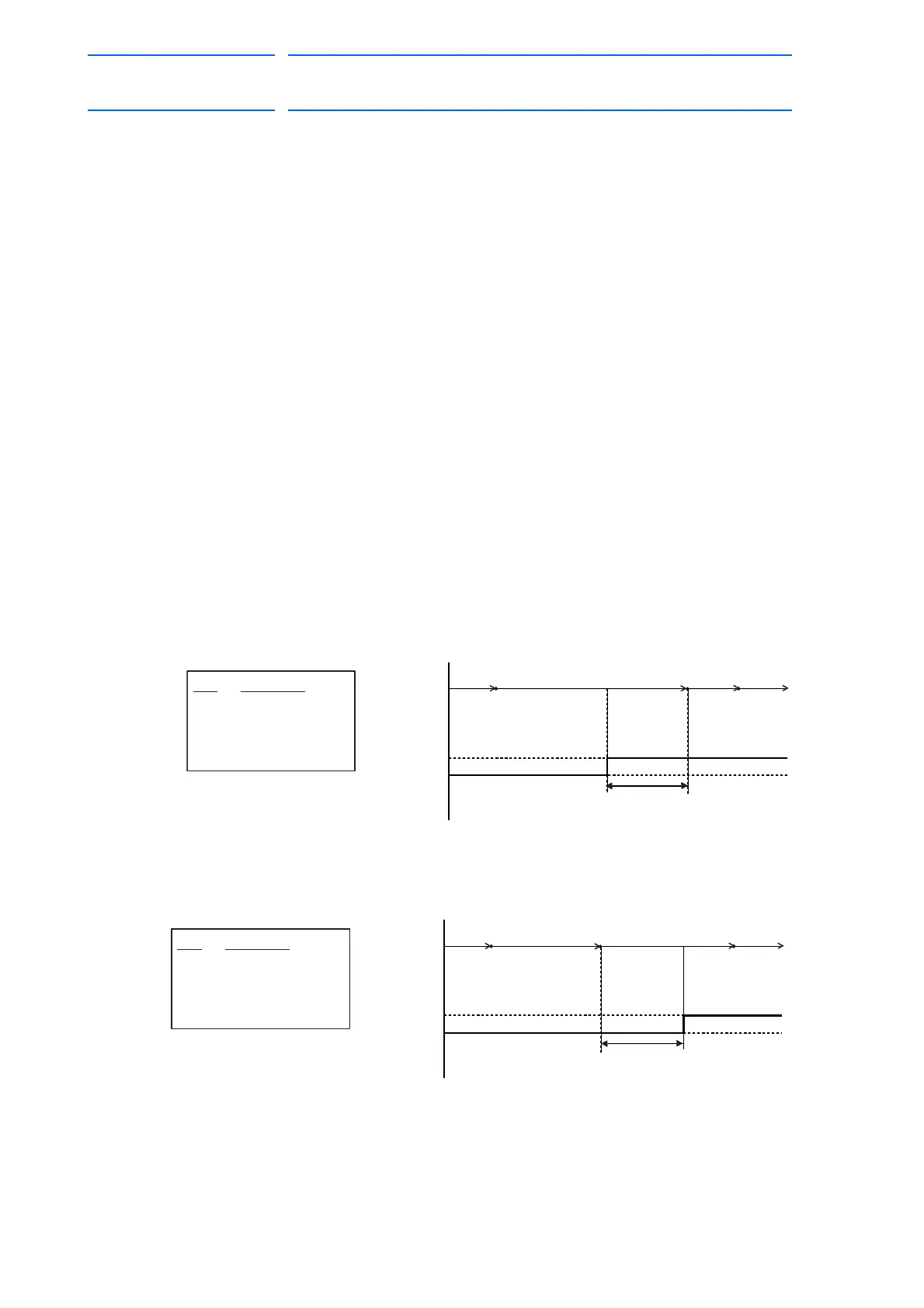

<Advanced Signal Output>
Signal output is carried out before the step is reached.
<Delayed Signal Output>
Signal output is carried out after the step is reached.
0 : Invalid
1:Valid
User output
n-1
n+1
n
Setting time for advanced output
Step
Step Instructions
: :
n-1 MOVL
n MOVL NWAIT
ANTOUT AT#(1) ON
n+1 MOVL
ON
OFF
n-1
n+1
n
Setting time for delayed output
User output
Step
Step Instructions
: :
n-1 MOVL
n MOVL NWAIT
ANTOUT AT#(2) ON
n+1 MOVL
ON
OFF
482 of 554
