YASKAWA DX100 Operator's Manual

3 Teaching
3.7 Editing Jobs
3-69
155507-1CD
RE-CSO-A037
DX100
3.7.5 Reverse Pasting
Before pasting, the range to be pasted has to be stored in the buffer.
1. Move the cursor to the line immediately before the desired position in
the JOB CONTENT window.

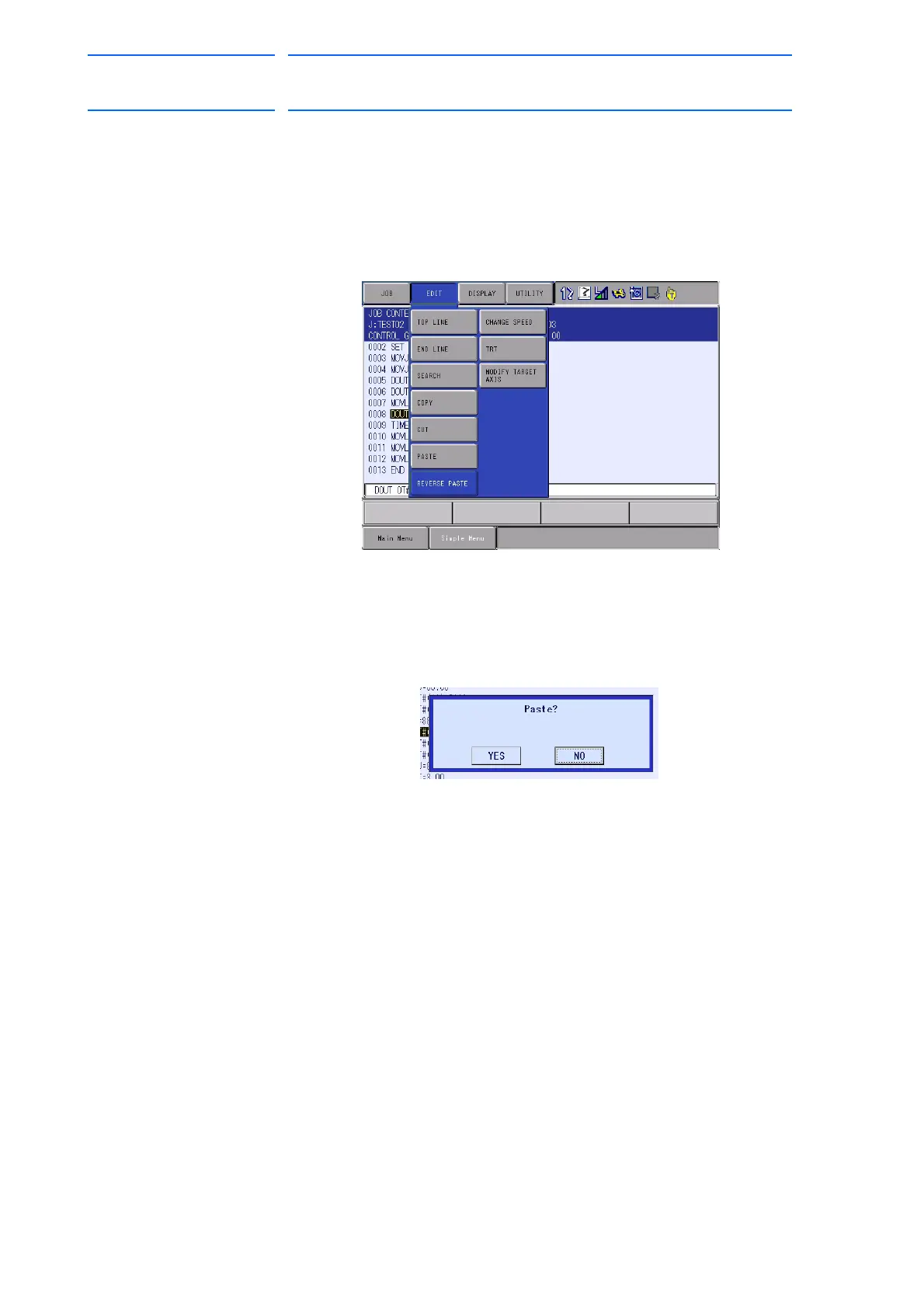

2. Select {EDIT} under the menu.
– The pull-down menu appears.
3. Select {REVERSE PASTE}.
– The confirmation dialog box appears.
– When “YES” is selected, the contents of the buffer are reverse
pasted to the job.
– When “NO” is selected, the reverse-pasting operation is canceled.
152 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
