YASKAWA DX100 Operator's Manual

6-17
155507-1CD
RE-CSO-A037
DX100
6 Convenient Functions
6.3 Parallel Shift Function
6.3.3 Registering Shift Instructions
To register the instruction, move the cursor to the address area in the JOB
CONTENT window during teach mode as follows:
1. Select {JOB} under the main menu.
2. Select {JOB}.

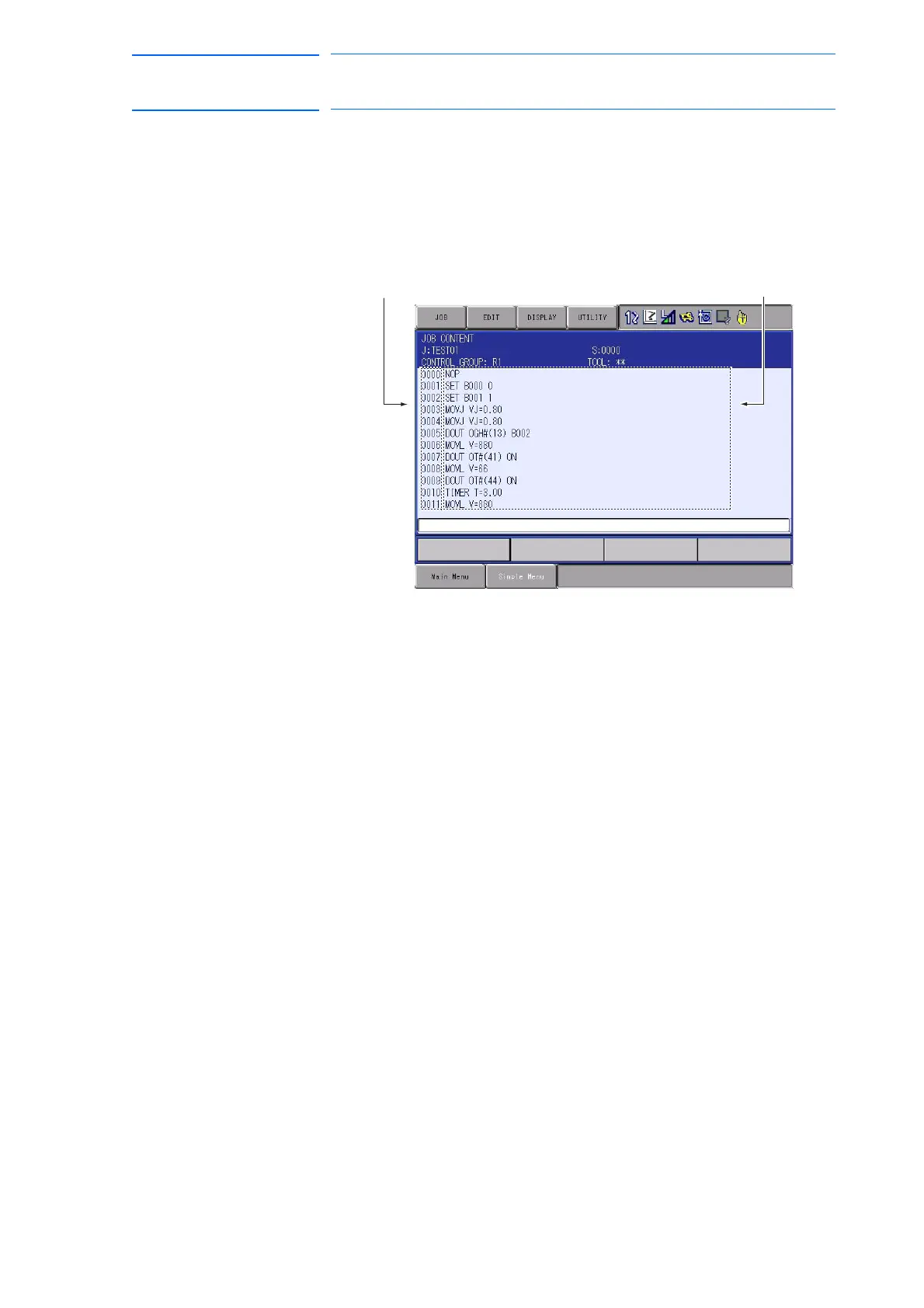

– The JOB CONTENT window appears.
3. Move the cursor to the address area.
Address area
Instruction area
257 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
