YASKAWA DX100 Operator's Manual

6 Convenient Functions
6.6 Mirror Shift Function
6-58
155507-1CD
RE-CSO-A037
DX100

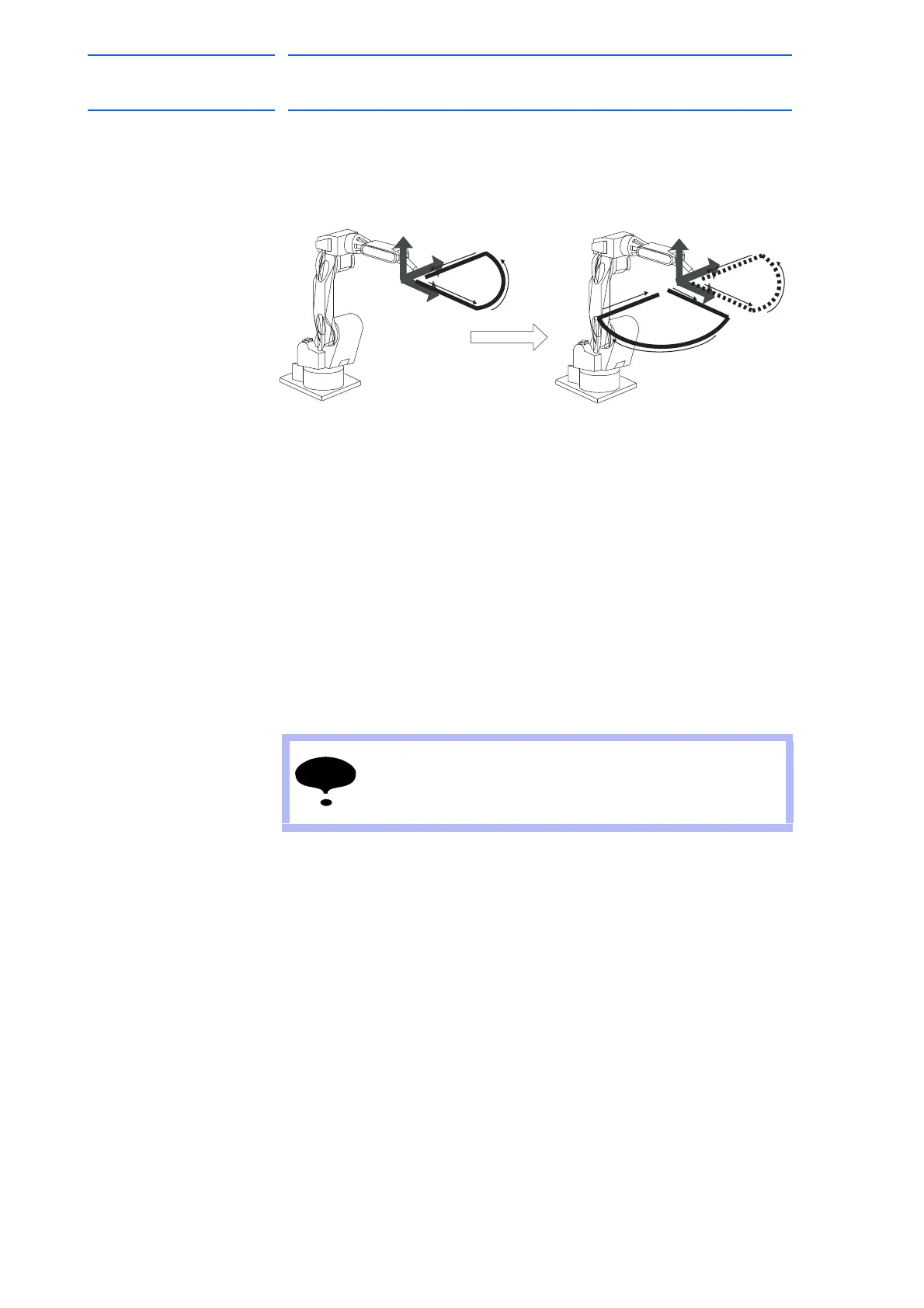

6.6.4 User-coordinates Mirror-shift Function
With the user-coordinates mirror-shift function, the mirror shift is
performed on the X-Z, X-Y, or Y-Z coordinate of the specified user
coordinates.
6.6.4.1 Object Job
Jobs without group axes cannot be converted.
6.6.4.2 Group Axes Specification
When specifying the group axes for the converted job in a multiple group
axes system, the group axes specified in the original and converted jobs
must be the same.
• Robot Axis: Same model
• Base Axis: Same configuration
• Station Axis: Same configuration
6.6.4.3 Position Variables
Position variables are not converted by the mirror shift function.
Z
X
Y
Z
X
Y
NOTE
With the user-coordinates mirror shift function, mirror shift
conversion for the station axis is performed by reversing the
sign for the axes specified with the parameter S1CxG065
"Mirror Shift Sign Reversing Axis Specification".
298 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
