YASKAWA DX100 Operator's Manual

6-51
155507-1CD
RE-CSO-A037
DX100
6 Convenient Functions
6.5 PAM Function
6.5.2.2 Executing the Adjustment
 Executing the Adjustment

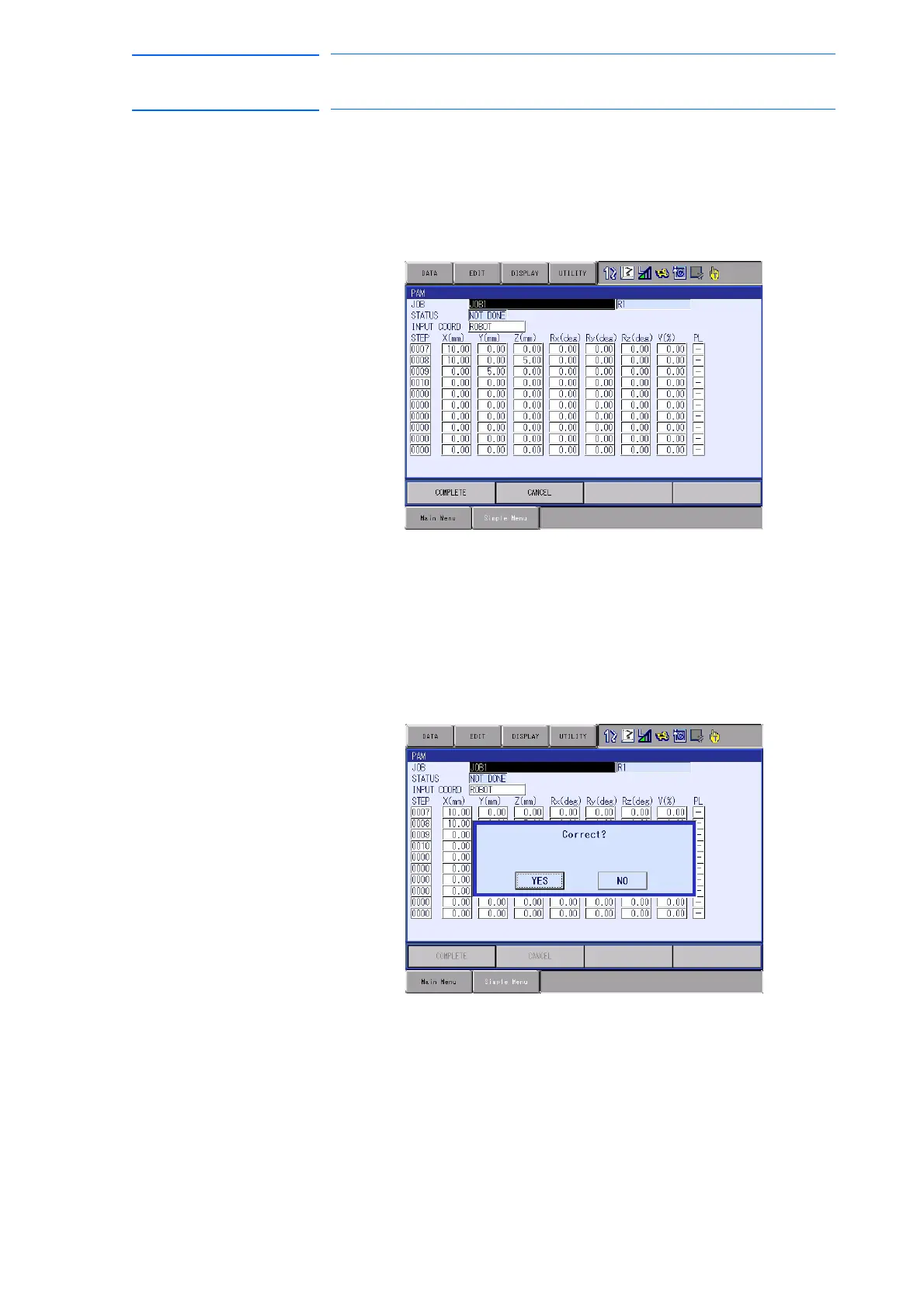

1. Touch “COMPLETE” on the screen.
– The confirmation dialog box appears.
2. Select “YES”.
– In the teach mode, the job adjustment can be immediately executed.
In the play mode, the job can be adjusted just before execution
(move operation).
– When the job adjustment is completed, the set data shown in the
PAM window is cleared. However, if the step’s adjusted position
exceeds the software limit, an error occurs, and the data in only that
step cannot be cleared on the window.
291 of 554
