4 Playback
4.1 Preparation for Playback
 Automatic Setting for Operation Cycle
Automatic setting of the operation cycle can be changed by the following
operation.
This can be done in the management mode only.
1. Select {SETUP} under the main menu.
2. Select {OPERATE COND}.

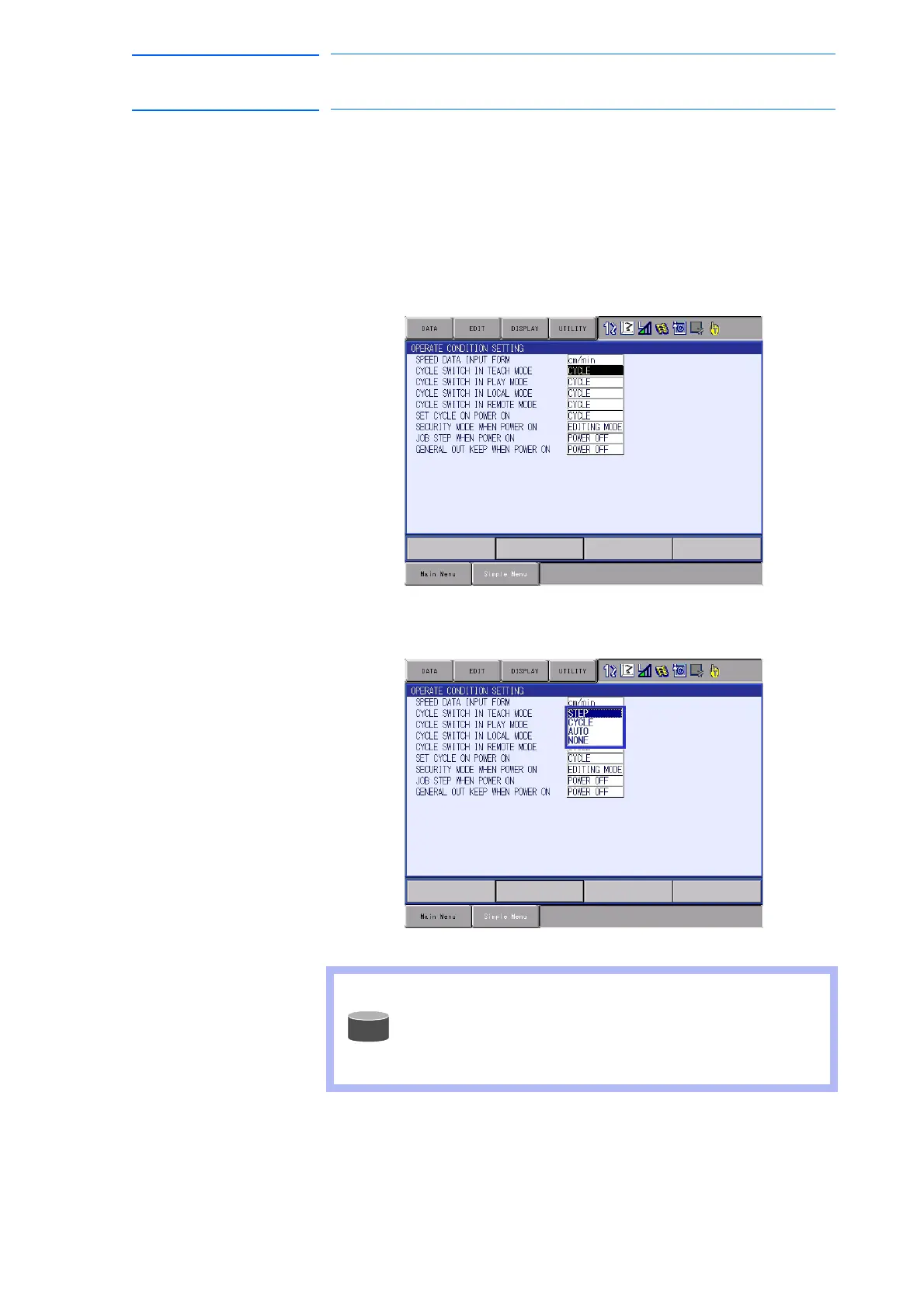

– The OPERATING CONDITION window appears. Use the cursor to
scroll the screen.
3. Select the desired operation.
– The selection dialog box appears.
SUPPLE-
MENT
“NONE” setting
The operation cycle is not changed when “NONE” is set.
For example, if the setting is “CYCLE SWITCH IN PLAY
MODE = NONE”, the operation cycle is maintained even
after switching to the play mode.
197 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
