YASKAWA DX100 Operator's Manual

6-11
155507-1CD
RE-CSO-A037
DX100
6 Convenient Functions
6.2 Job Edit Function During Playback
6.2.2.4 Canceling Write Request
The procedure to cancel a write request is described below.
 Canceling Write Request

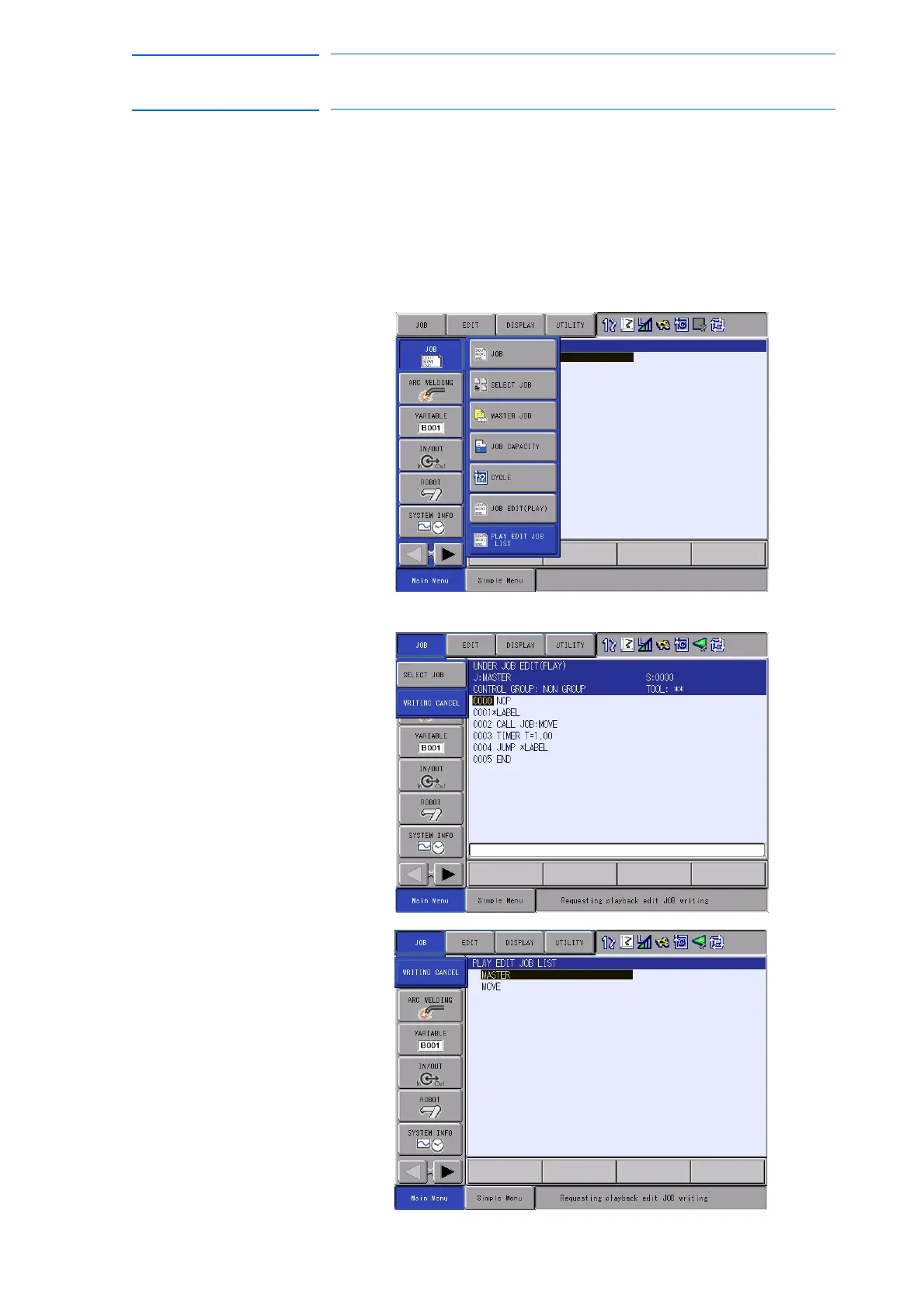

1. Select the main menu {JOB}, then select the submenu {PLAY EDIT
JOB LIST}, 
or 
select the main menu {JOB}, then select the submenu {JOB EDIT
(PLAY)}.
2. Select {WRITING CANCEL} under the pull-down menu {JOB}.
251 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
