3 Teaching
3.6 Editing Instructions
3.6 Editing Instructions

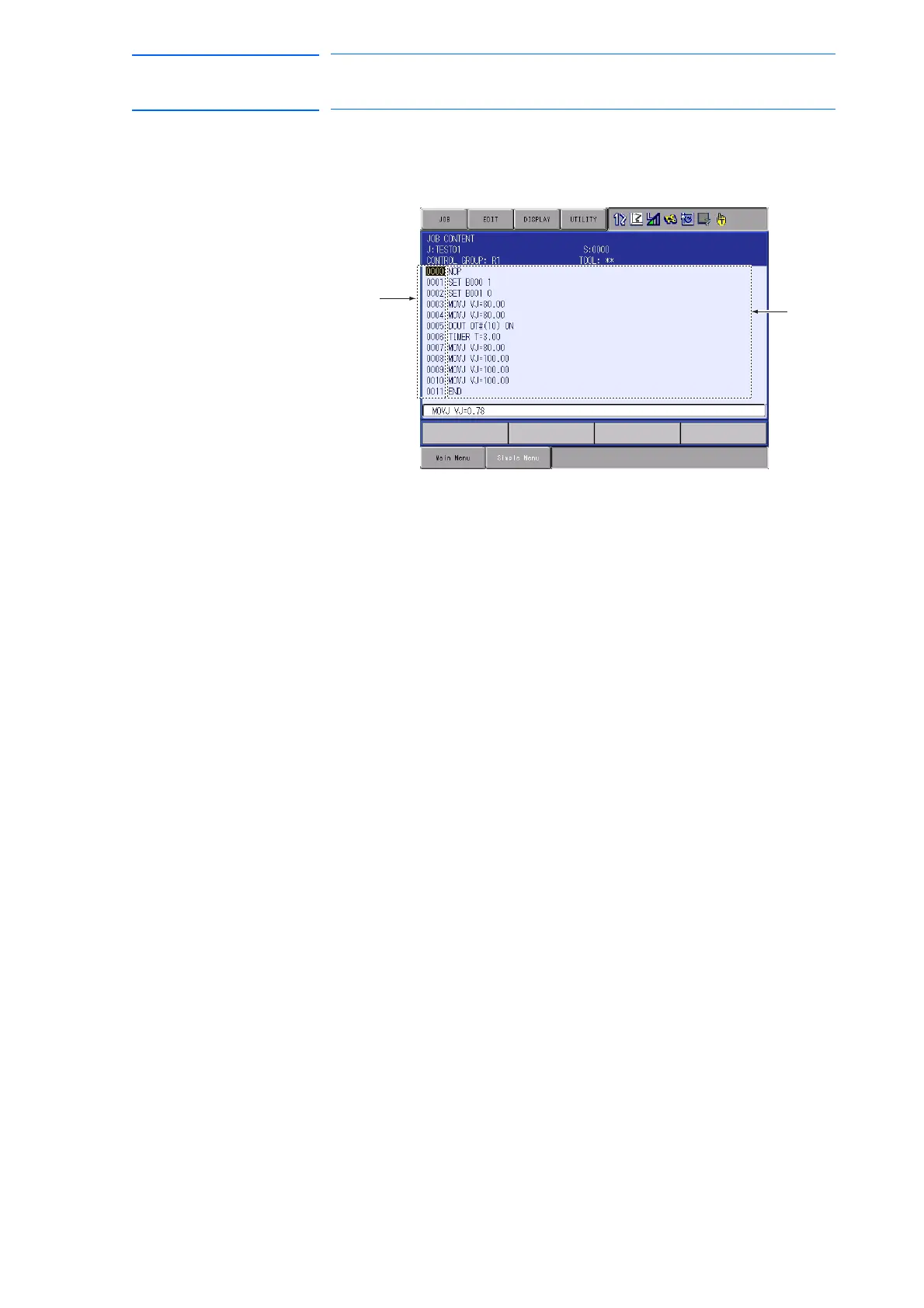

The editable content differs depending on whether the cursor is in the
address area or instruction area.
A. When the cursor is in the address area
Instructions can be inserted, deleted, or modified.
B. When the cursor is in the instruction area
The data of additional items of already-registered instructions can be
modified, inserted, or deleted.
Editing only additional items is called “line editing”.
When inserting or modifying instructions, input the instruction with the
function keys such as [TIMER], etc. or by using the instruction list dialog
box.
The selected instruction is displayed on the input buffer line with the same
additional items as registered previously.
If the addition, deletion or modification of additional item is needed, edit on
the instruction DETAIL EDIT window. If it is not needed, continue the
registration process.
B
A
133 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
