YASKAWA DX100 Operator's Manual

1-19
155507-1CD
RE-CSO-A037
DX100
1 Introduction
1.2 Programming Pendant
1.2.6.3 Alphanumeric Input
Number input is performed with the Numeric keys or on the following
alphanumeric input window. Numbers include 0 to 9, the decimal point (.),
and the minus sign/hyphen (-).
Note however, that the decimal point cannot be used in job names.

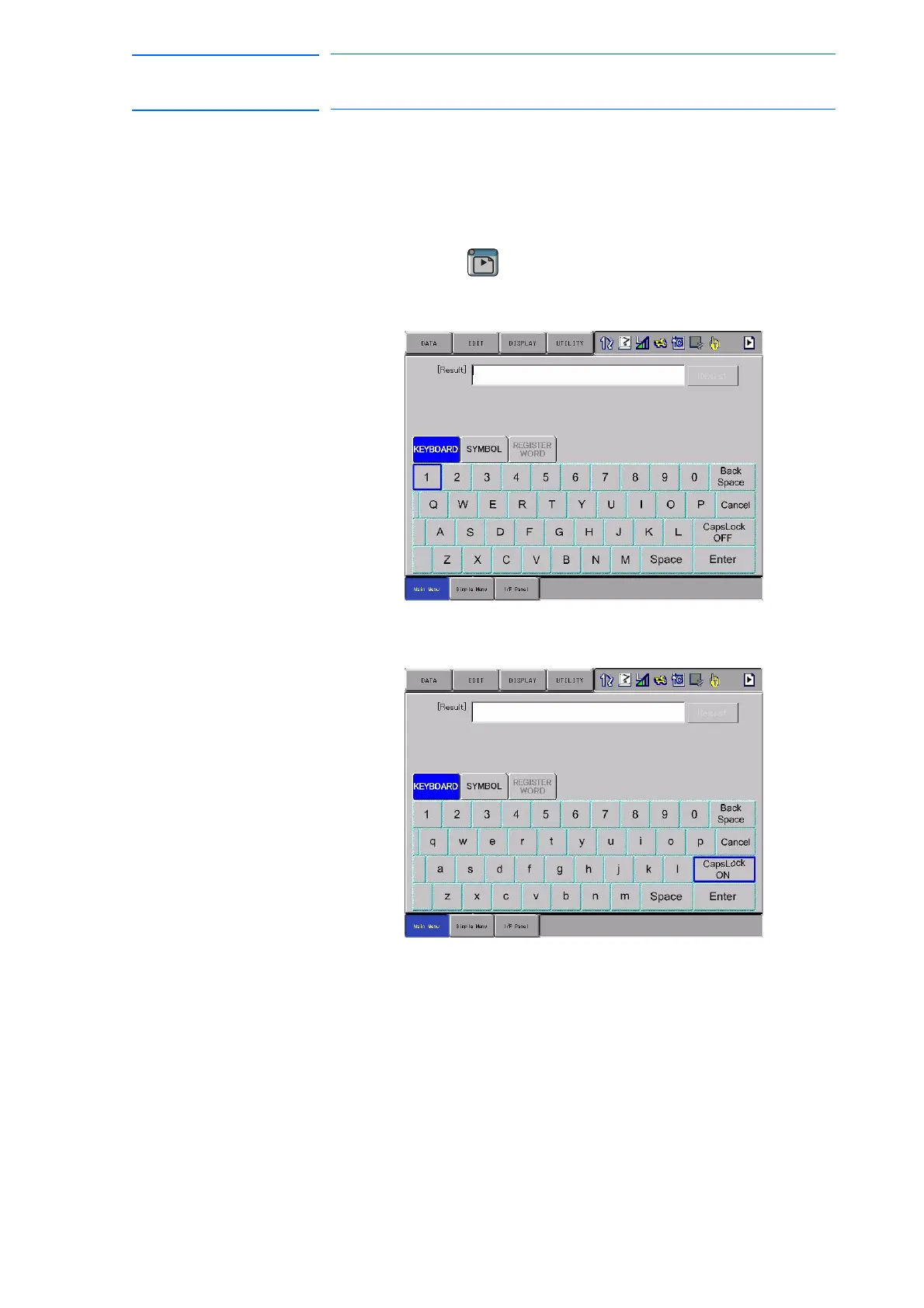

Press the page key to display the alphanumeric input window. Move
the cursor to the desired letter and press [SELECT] to enter the letter.
For Numbers and Upper-case Characters
For Numbers and Lower-case Characters
PAGE
GO BACK
PAGE
GO BACK
47 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
