6.7.4 Operation of Multi Window
6.7.4.1 Switching of Multi Window Mode and Single Window Mode
When more than two windows are displayed as a dividing pattern of the
multi window, it is possible to switch multi window mode to single window
mode.
1. Set the mode of the general-purpose displaying area to multi window
mode.
2. Press [SHIFT]+[MULTI] keys.

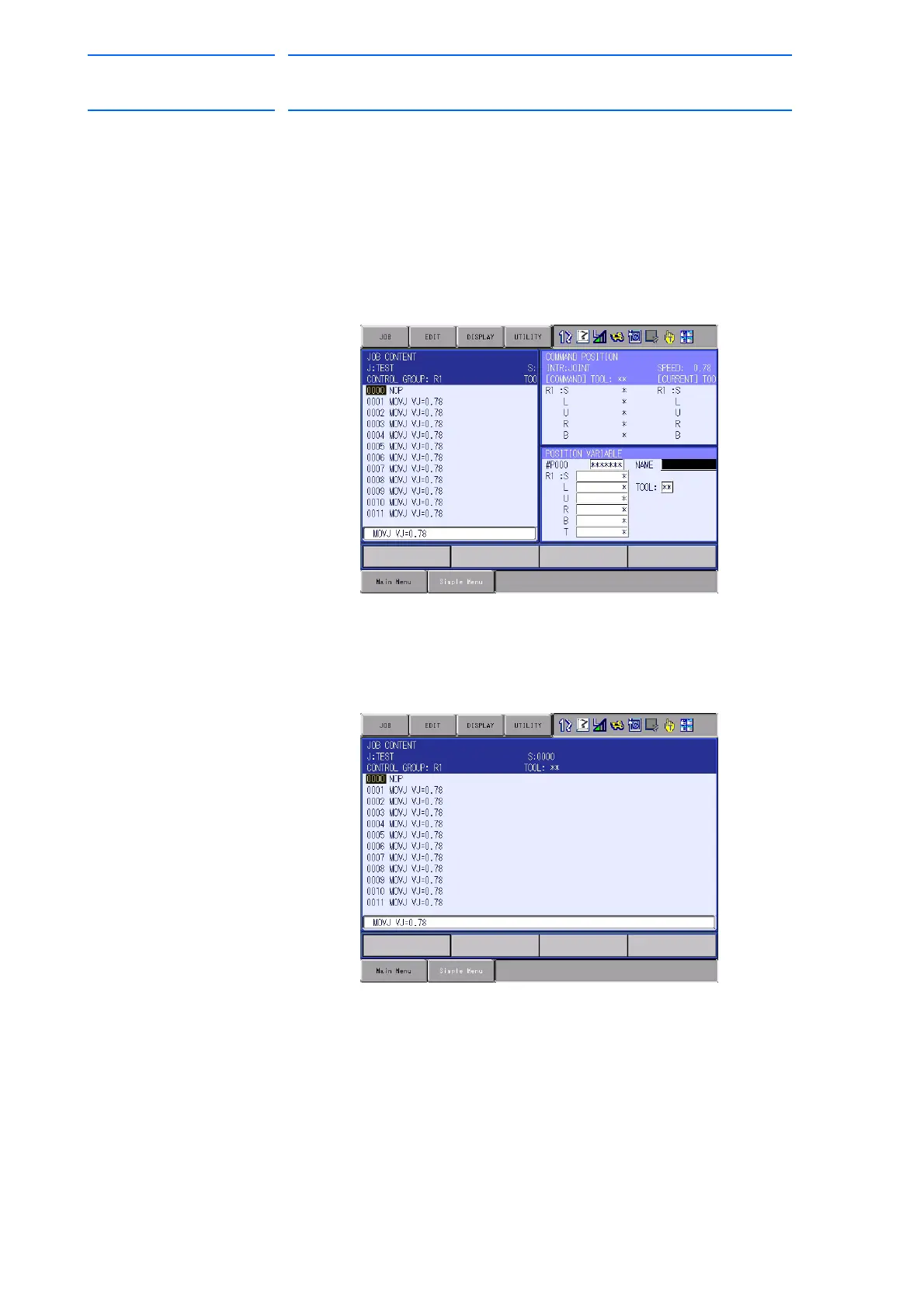

– Active window is displayed under single window mode in the
general-purpose window displaying area.
