YASKAWA DX100 Operator's Manual

4-4
155507-1CD
RE-CSO-A037
DX100
4 Playback
4.1 Preparation for Playback
4.1.1.3 Calling the Master Job
This operation is to call a master job. The job can be called in the JOB
CONTENT window, PLAYBACK window, JOB SELECT window, or the
MASTER JOB window.
 Calling from the JOB CONTENT, PLAYBACK, JOB SELECT Window

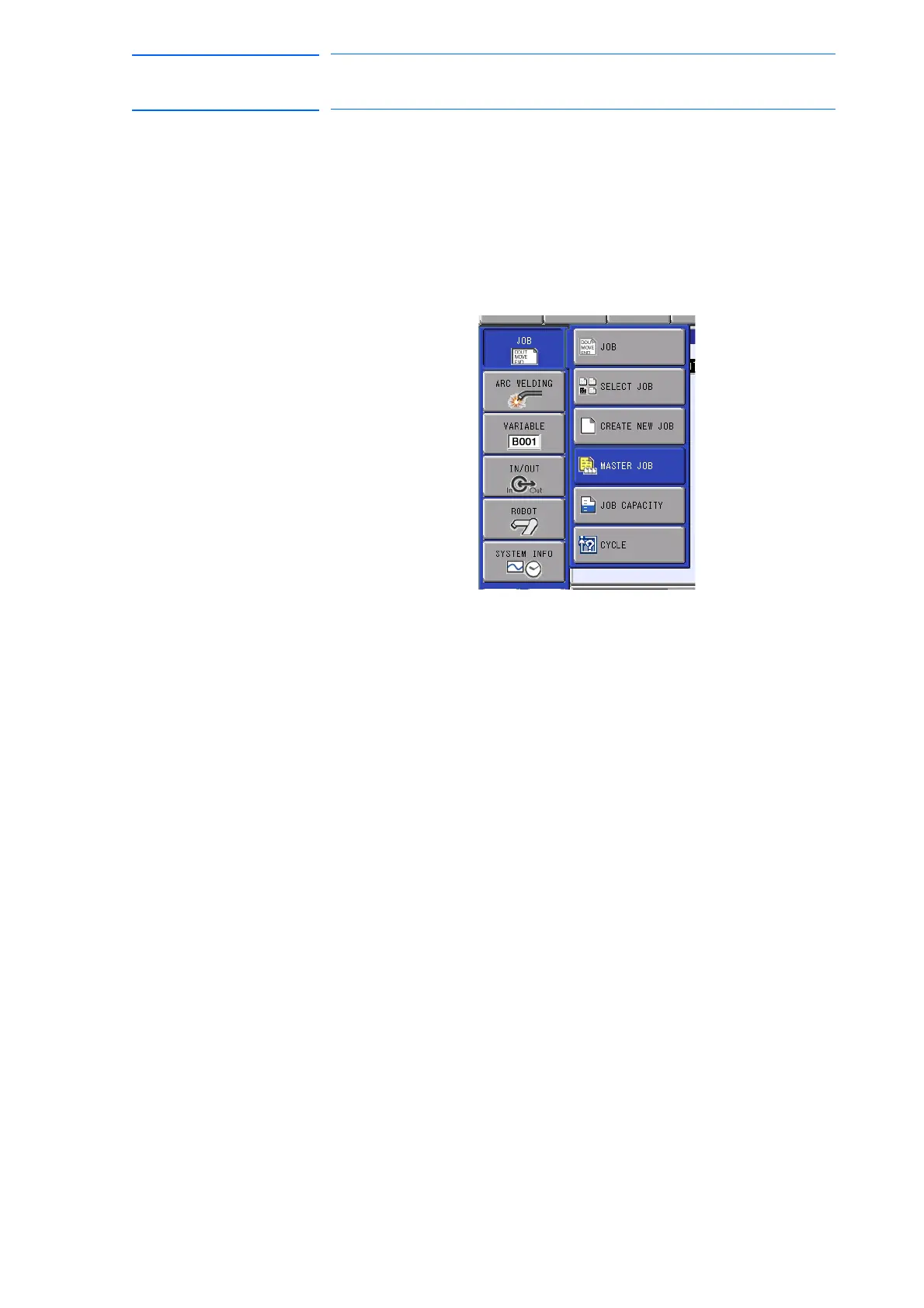

1. Select {JOB} under the menu.
2. Select {MASTER JOB}.
– The master job is called, and the JOB CONTENT window appears.
193 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
