3-92

155507-1CD

RE-CSO-A037

DX100

3 Teaching

3.9 Other Job-editing Functions

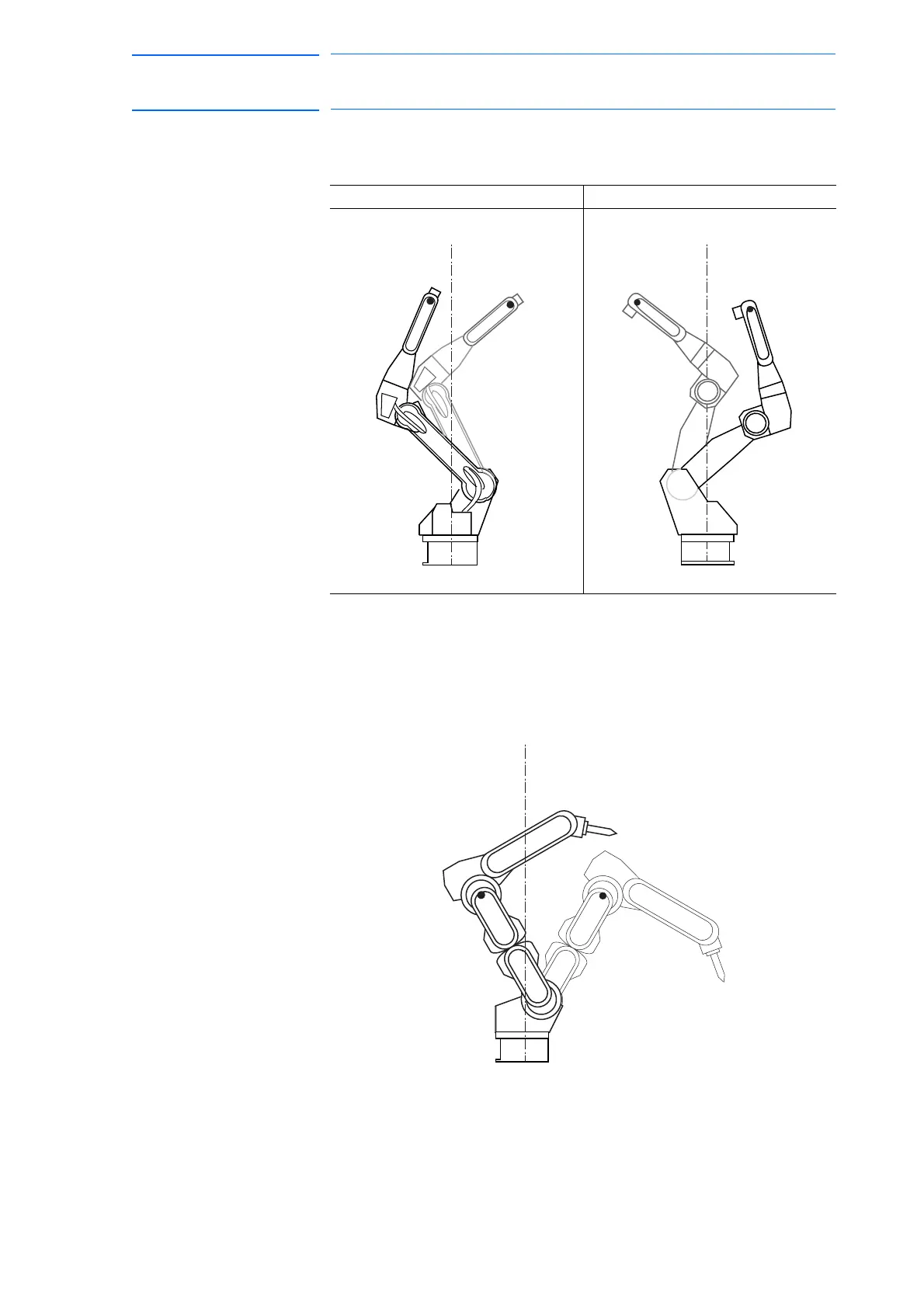

The diagram below shows the S-axis at 0and at 180. This is the

configuration when the L-axis and the U-axis are viewed from the right-

hand side.



For the manipulator with seven axes, this specifies where in the S-axis

rotation center the U-axis rotation center locates when viewing the L-axis

and U-axis from the right-hand side.

When viewed from the right-hand side, the right of the S-axis rotation

center is called the front, and the left is called the back.

S-axis 0

 S-axis 180

Back Front

Front Back

Back Front

175 of 554
