YASKAWA DX100 Operator's Manual

6-7
155507-1CD
RE-CSO-A037
DX100
6 Convenient Functions
6.2 Job Edit Function During Playback

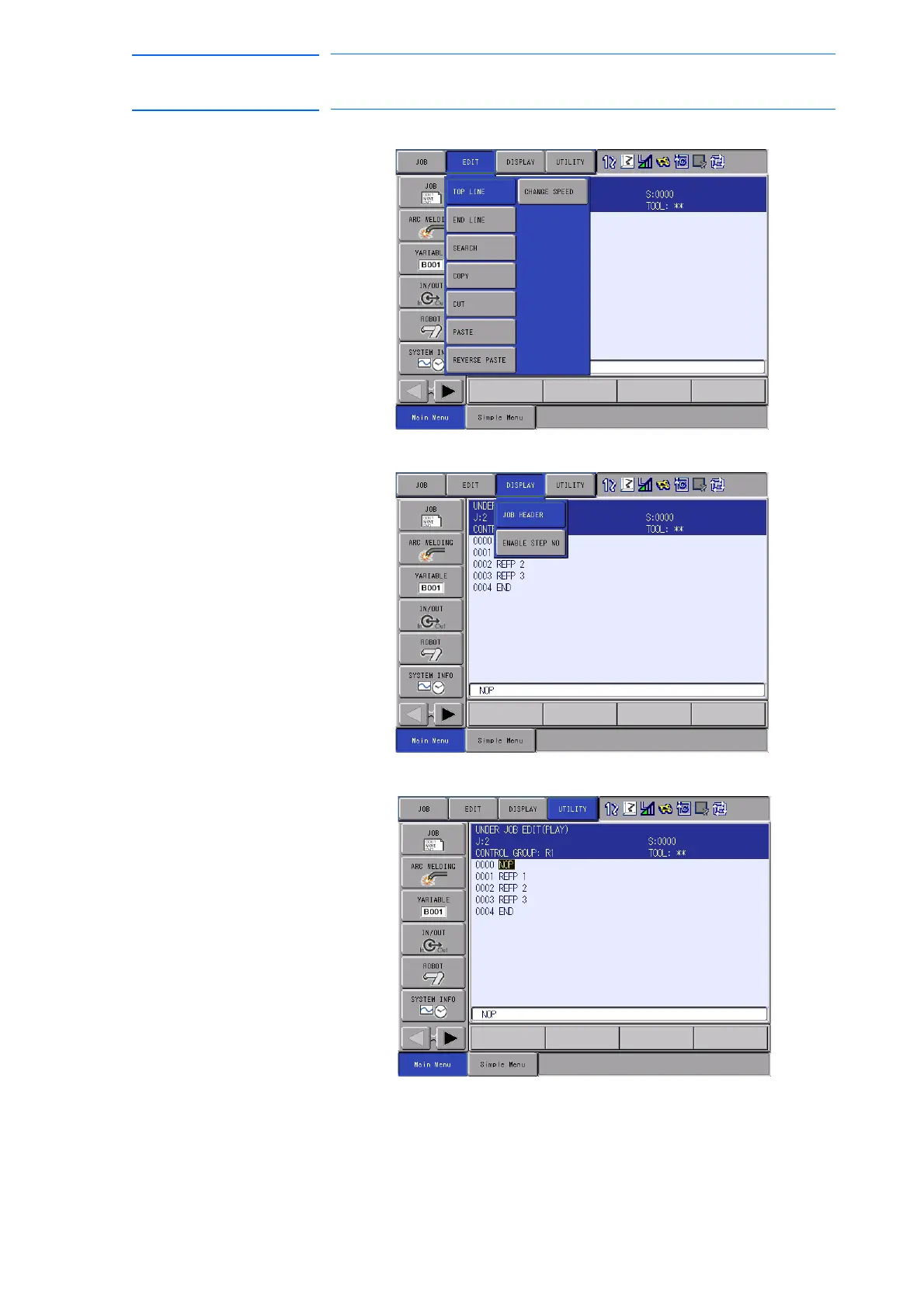

Fig. 6-2: Pull-down Menu (EDIT) * Cursor Is on Instruction
Fig. 6-3: Pull-down Menu (DISPLAY)
Fig. 6-4: Pull-down Menu (UTILITY)
In addition to the job edit operation described above, {CREATE NEW
JOB}, {RENAME JOB}, {COPY JOB}, and {DELETE JOB} under the pull-
down menu {JOB} are also available.
All of the above operations are performed for the jobs listed in “PLAY EDIT
JOB LIST”. 
247 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
