YASKAWA DX100 Operator's Manual

6 Convenient Functions
6.7 Multi Window Function
6-66
155507-1CD
RE-CSO-A037
DX100
3. Touching operation:

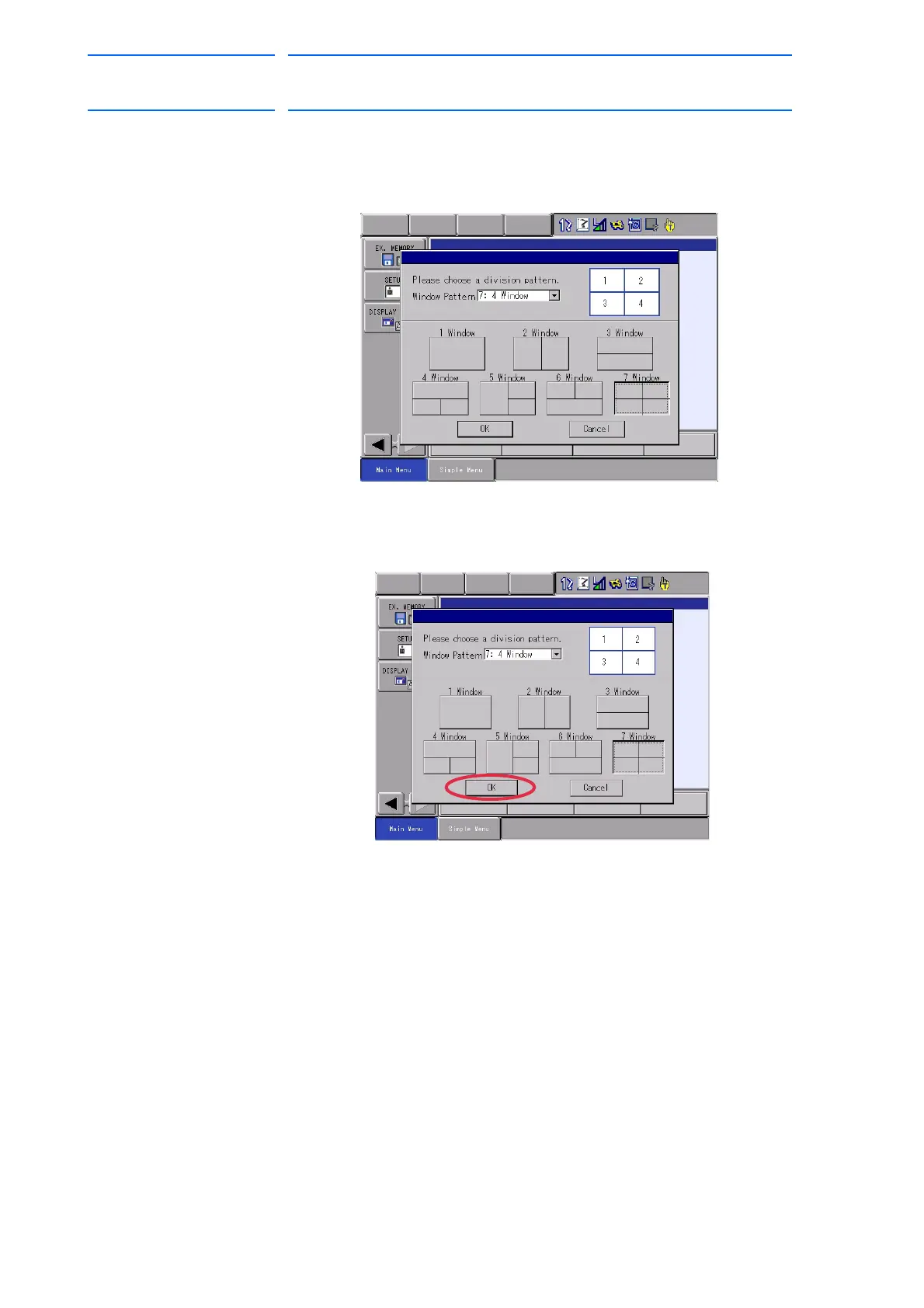

The desired pattern can be chosen by touching a pattern in the
window.
– Choose a pattern from the dividing pattern buttons.
4. Touch [OK] button or move the cursor to it and press [SELECT] key.
– The dividing pattern setting window closes and the chosen pattern
(chosen with the procedure either 1, 2 or 3) appears.
306 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
