YASKAWA DX100 Operator's Manual

6-75
155507-1CD
RE-CSO-A037
DX100
6 Convenient Functions
6.7 Multi Window Function
• Setting Value:1
– Call up the confirmation dialog box to confirm the switch of the
active window.

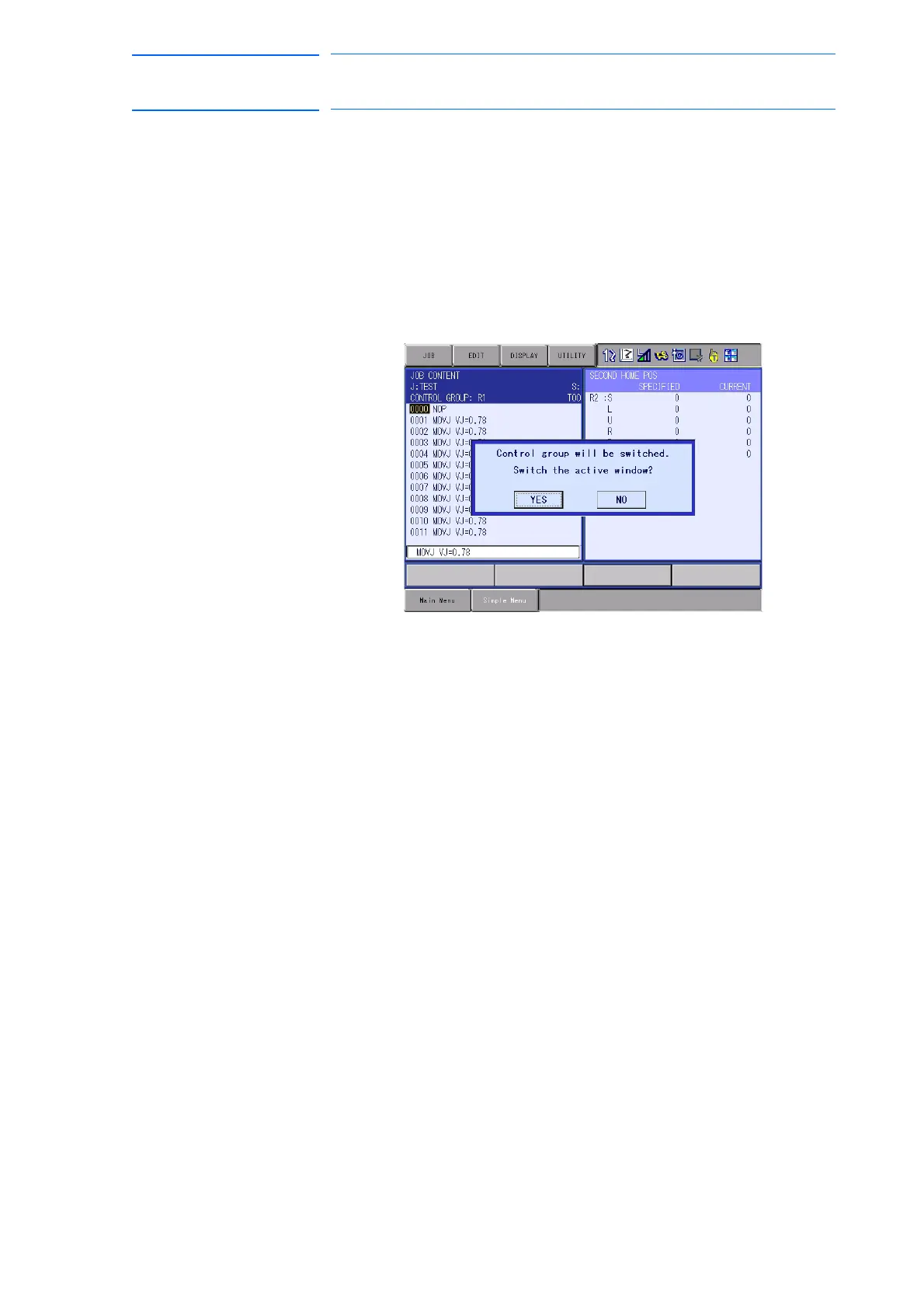

– Message “Control group will be changed. Switch the active
window?” is displayed
–“Yes”
······ After switching the window to be active, a message
appears in the human interface display area.
–“No”
······ Cancel the window to be active.
• Setting Value:2
– Do not notify the control group change.
315 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
