YASKAWA DX100 Operator's Manual

7-39
155507-1CD
RE-CSO-A037
DX100
7 External Memory Devices
7.3 Operation Flow

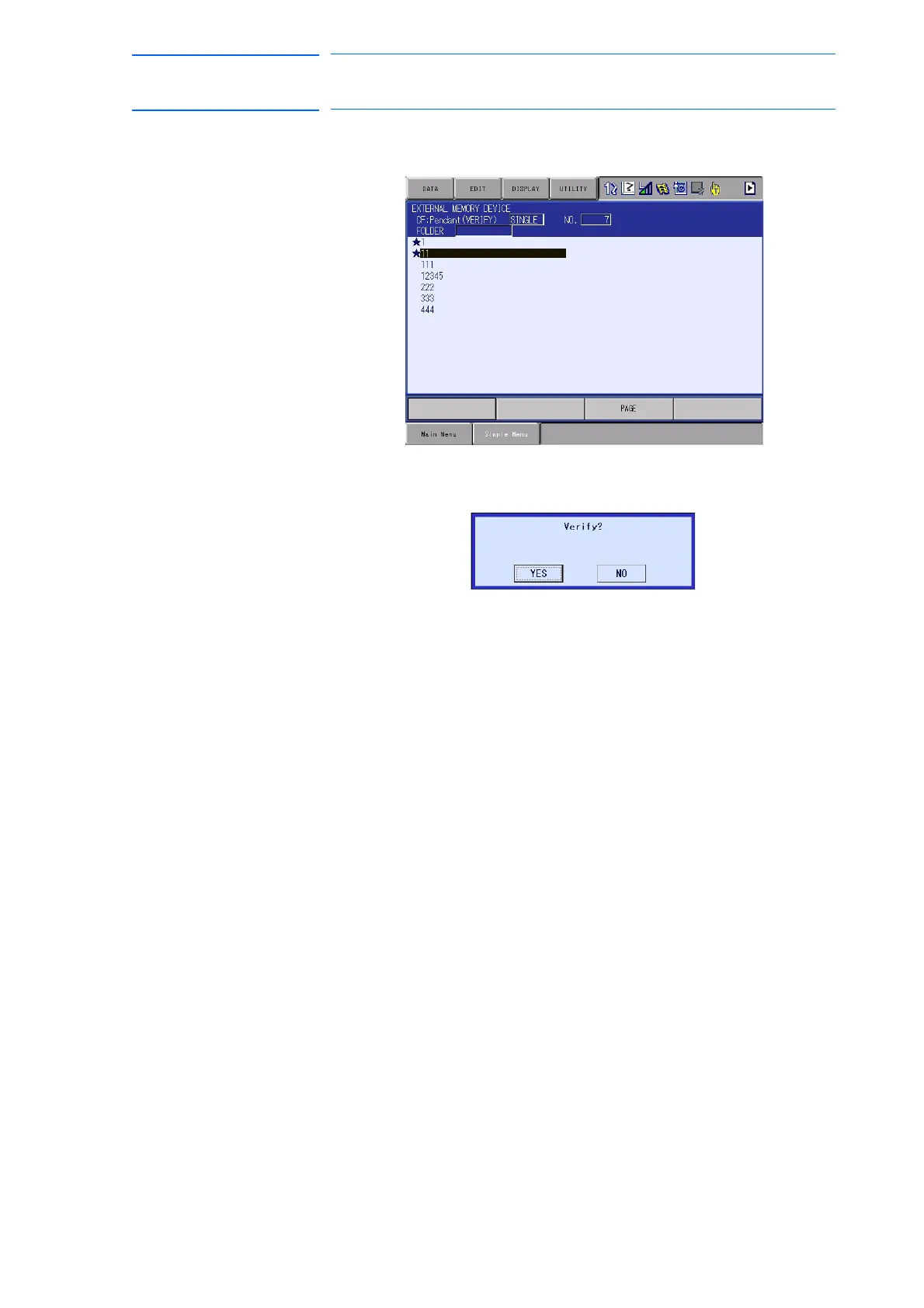

4. Select a job to be verified.
– The selected jobs are marked with “”.
5. Press [ENTER].
– The confirmation dialog box appears.
6. Select “YES”.
– The selected jobs are verified.
425 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
