10.1 Outlines
ALLOCATION.”)

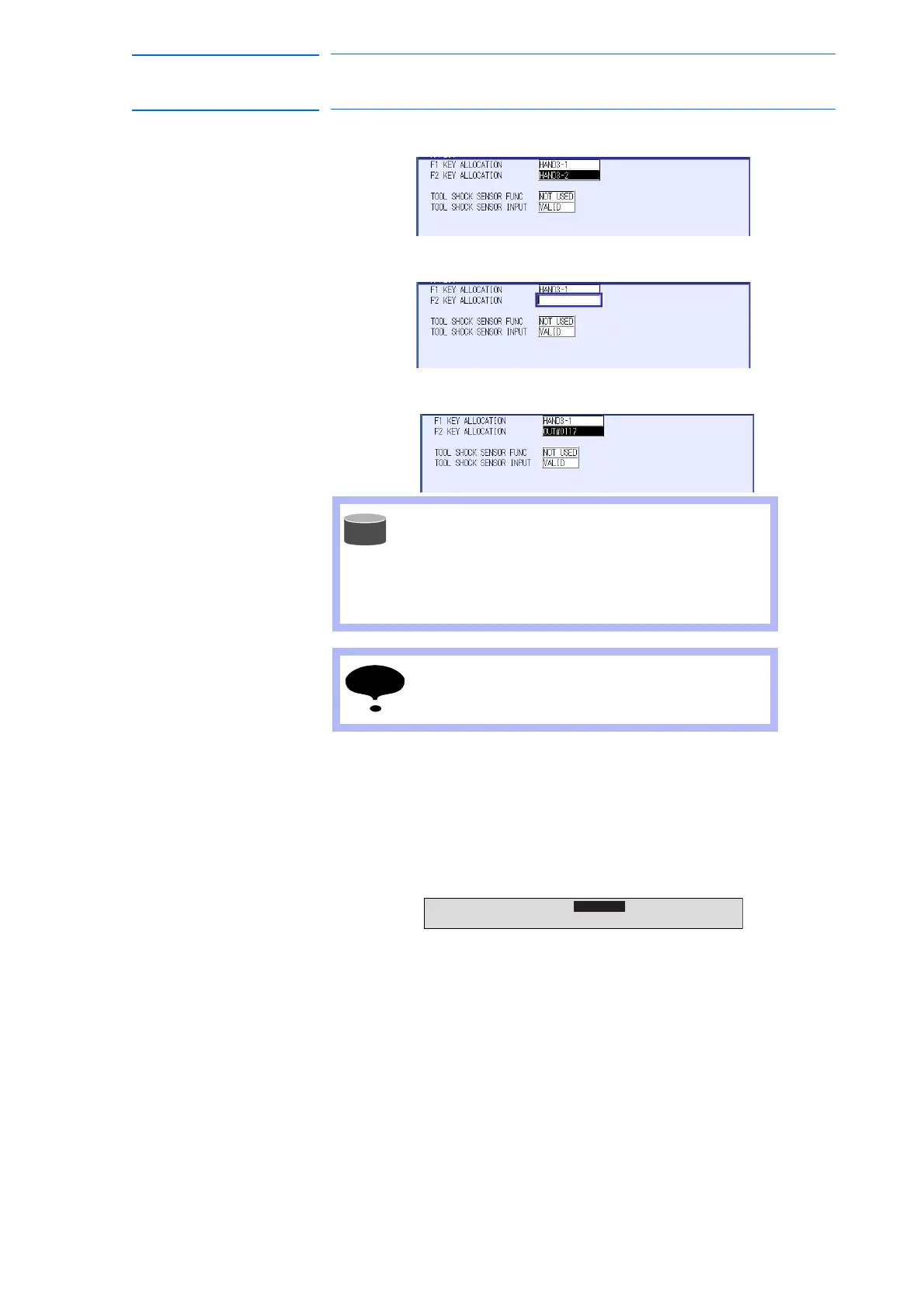

When HAND3 is set for the “F2 KEY ALLOCATION”
– When {USER OUT} is selected, the output number of user signal is
asked.
– Input desired number with Numeric keys and press [ENTER] to
change the allocation of user output signal.
4. Select “SHOCK SENSOR FUNC” or “SHOCK SENSOR INPUT,” and
then edit.
– If “SHOCK SENSOR FUNC” is selected, “USED” and “NOT USED”
are alternately displayed.
If “SHOCK SENSOR INPUT” is selected, “VALID” and “INVALID” are
alternately displayed.
The displayed state is the current setting.
An error message is displayed if the input number
lies outside the designated range. Press [CANCEL]
to cancel the modification of the key allocation.
If [f•1] or [f•2] and [INTERLOCK] are pressed simul-
taneously, the output of the designated signal is
switched ON and OFF.
The “-1” gripper valve signals can be allocated to
[f•1] and the “-2” gripper valve signals can be allo-
cated to [f•2].
SHOCK SENSOR FUNC
SHOCK SENSOR INPUT
: NOT USED
: VALID
To Next Page
