TP-Link T2600G Series User Manual

Managing System Example for PoE Configurations
User Guide
79
9
Example for PoE Configurations
9.1 Network Requirements
The network topology of a company is shown as below. Camera1 and Camera2 work for
the security of the company and cannot be power off all the time. AP1 and AP2 provide the
internet service and only work in the office time.

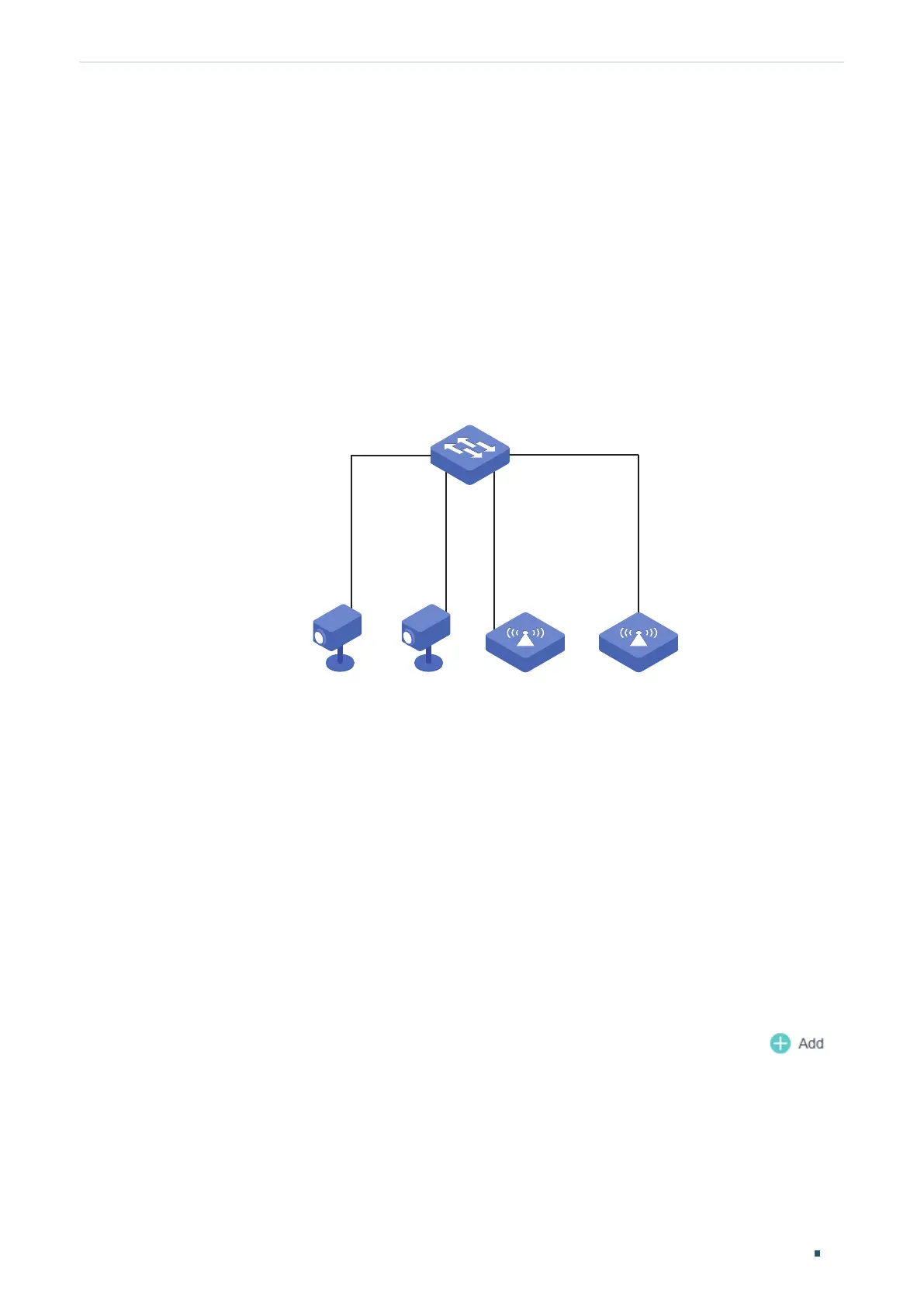

Figure 9-1 Network Topology
Gi1/0/1
Gi1/0/2 Gi1/0/3
Gi1/0/4
Camera1 Camera2 AP1 AP2
Switch A
9.2 Configuring Scheme
To implement this requirement, you can set a PoE time-range as the office time, for
example, from 08:30 to 18:00 on work days. Then apply the settings to port 1/0/3 and
1/0/4. Port 1/0/1 and port1/0/2 need to supply power all the time, so the time range
configurations can be left as the default settings here.
9.3 Using the GUI
The configurations of port 1/0/4 is similar with the configurations of port 1/0/3. Here we
take port 1/0/3 for example.
1) Choose the menu SYSTEM > Time Range > Time Range Create and click
to
load the following page.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
