TP-Link T2600G Series User Manual

User Guide 984
Configuring OAM Ethernet OAM Configurations
2.1.5 Viewing OAM Status
Choose the menu MAINTENANCE > Ethernet OAM > Basic Config > Discovery Info to
load the following page.

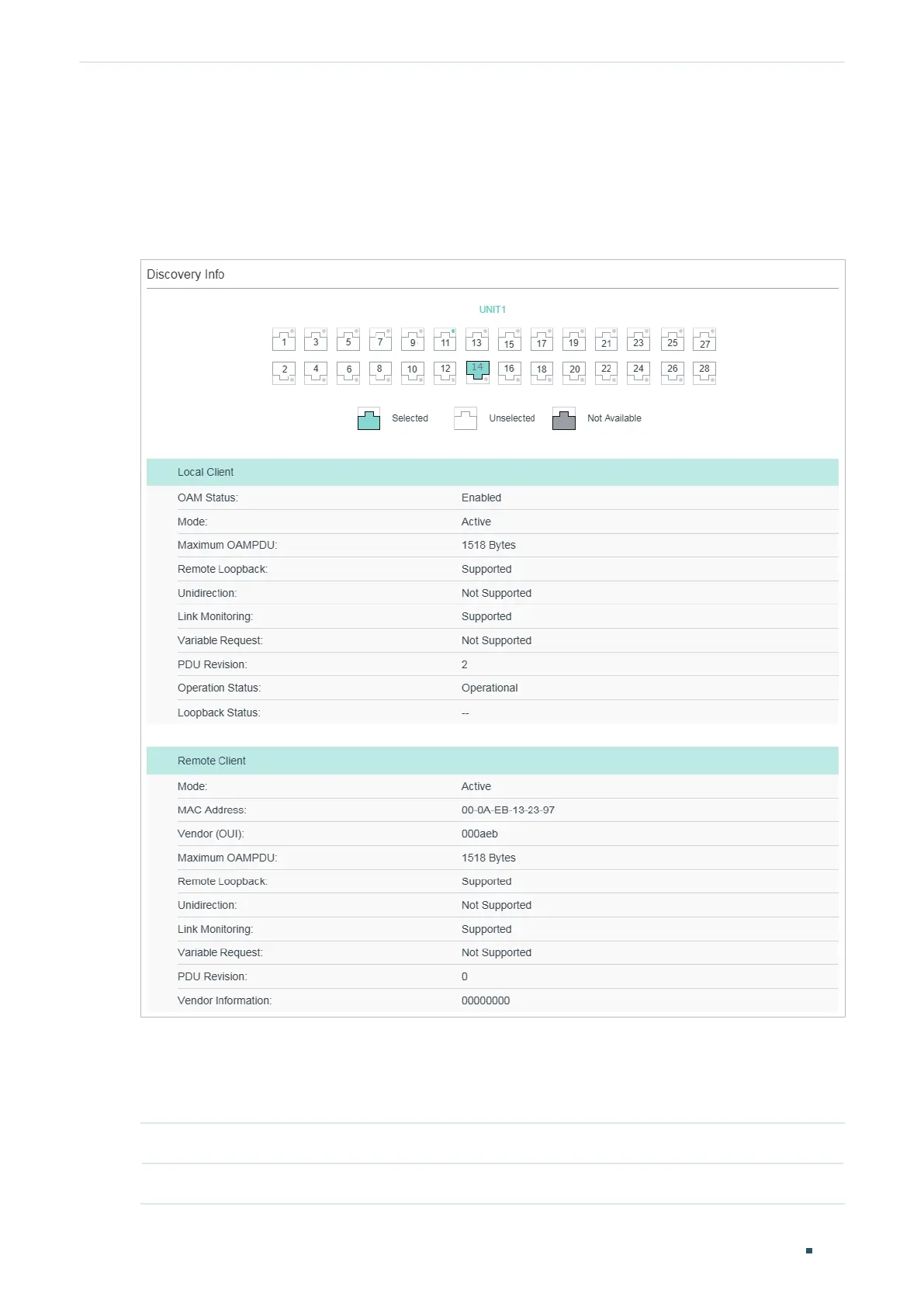

Figure 2-5 View OAM Status
Select a port to view whether the OAM connection is established with the peer. Additionally,
you can view the OAM information of the local and the remote entities.
The OAM information of the local entity is as follows:
OAM Status Displays whether OAM is enabled.
Mode Displays the OAM mode of the local entity.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
