TP-Link T2600G Series User Manual

User Guide 648
Configuring QoS Bandwidth Control Configuration
3.1.2 Configuring Storm Control
Choose the menu QoS > Bandwidth Control > Storm Control to load the following page.

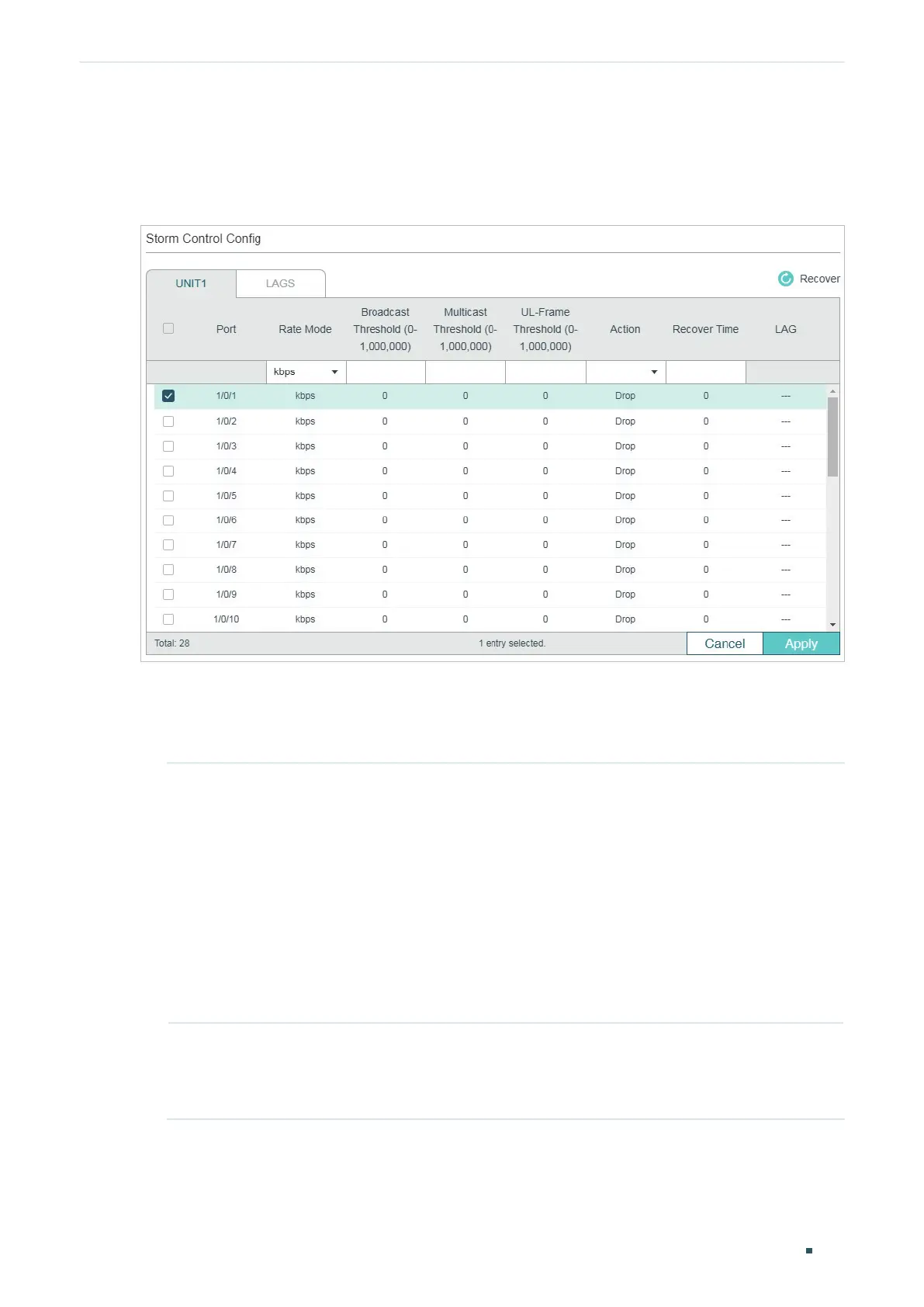

Figure 3-2 Configuring Storm Control
Follow these steps to configure the Storm Control function:
1) Select the desired port and configure the upper rate limit for forwarding broadcast
packets, multicast packets and UL-frames (Unknown unicast frames).
Rate Mode Specify the Rate Mode for the broadcast threshold, multicast threshold and UL-
Frame threshold on the desired port.
kbps: The switch will limit the maximum speed of the specific kinds of traffic in
kilo-bits per second.
ratio: The switch will limit the percentage of bandwidth utilization for specific
kinds of traffic.
pps: The switch will limit the maximum number of packets per second for specific
kinds of traffic.
Note: pps is not available for T2600G-18TS.
Broadcast
Threshold (0-
1,000,000)
Specify the upper rate limit for receiving broadcast packets. The valid values
differ among different rate modes. The value 0 means the broadcast threshold is
disabled. The broadcast traffic exceeding the limit will be processed according to
the Action configurations.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
