Configuring Protocol VLAN Overview
User Guide
201
1
Overview
Protocol VLAN is a technology that divides VLANs based on the network layer protocol.
With the protocol VLAN rule configured on the basis of the existing 802.1Q VLAN, the
switch can analyze specific fields of received packets, encapsulate the packets in specific
formats, and forward the packets with different protocols to the corresponding VLANs.
Since different applications and services use different protocols, network administrators
can use protocol VLAN to manage the network based on specific applications and
services.
The figure below shows a common application scenario of protocol VLAN. With protocol
VLAN configured, Switch 2 can forward IPv4 and IPv6 packets from different VLANs to the
IPv4 and IPv6 networks respectively.

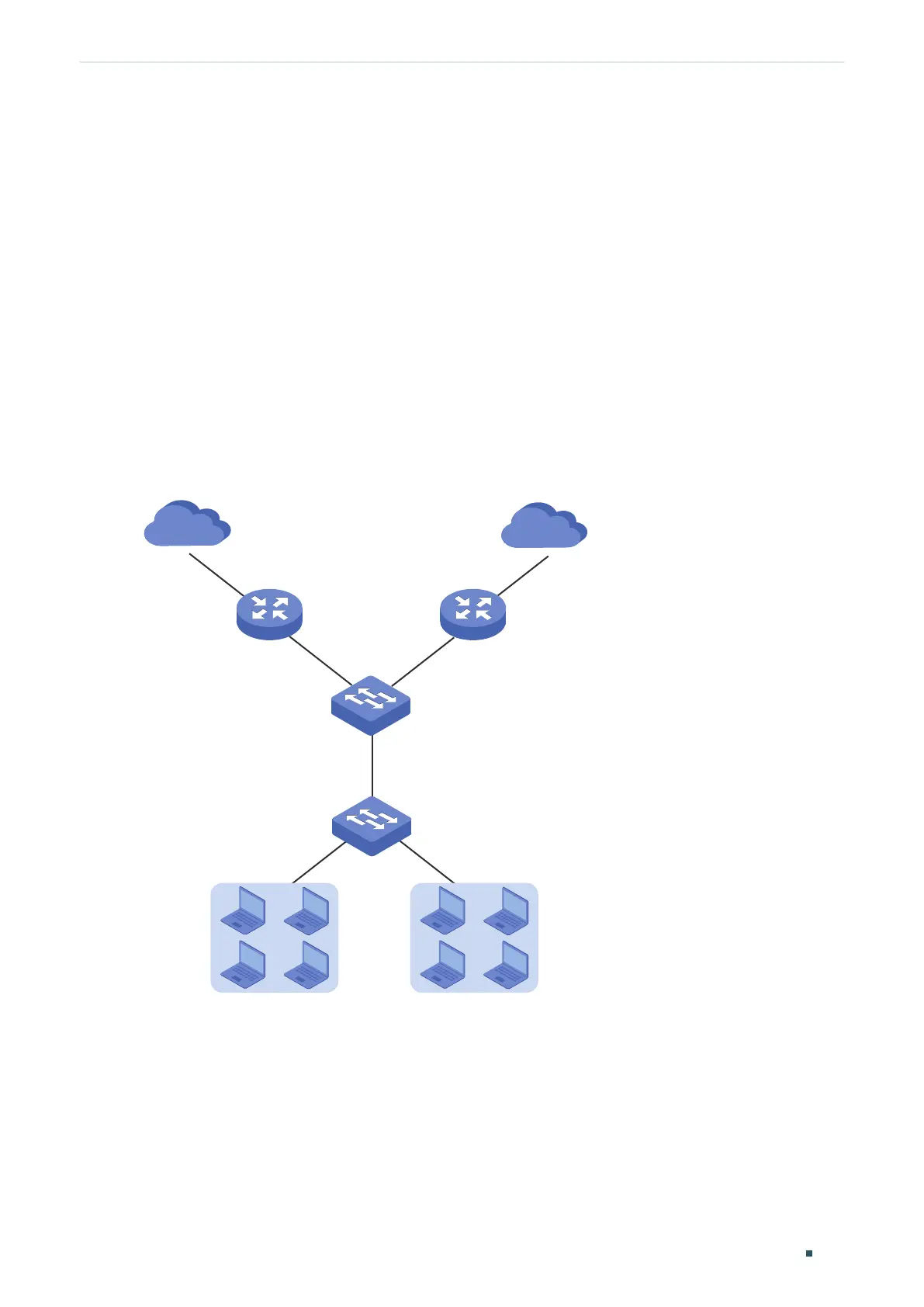

Figure 1-1 Common Application Scenario of Protocol VLAN
IPv4 Hosts
VLAN 10
IPv6 Hosts
VLAN 20
Switch 2
VLAN 20VLAN 10
Switch 1
RouterRouter
IPv4 Internet
IPv6 Internet

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
