Configuring GVRP Configuration Example

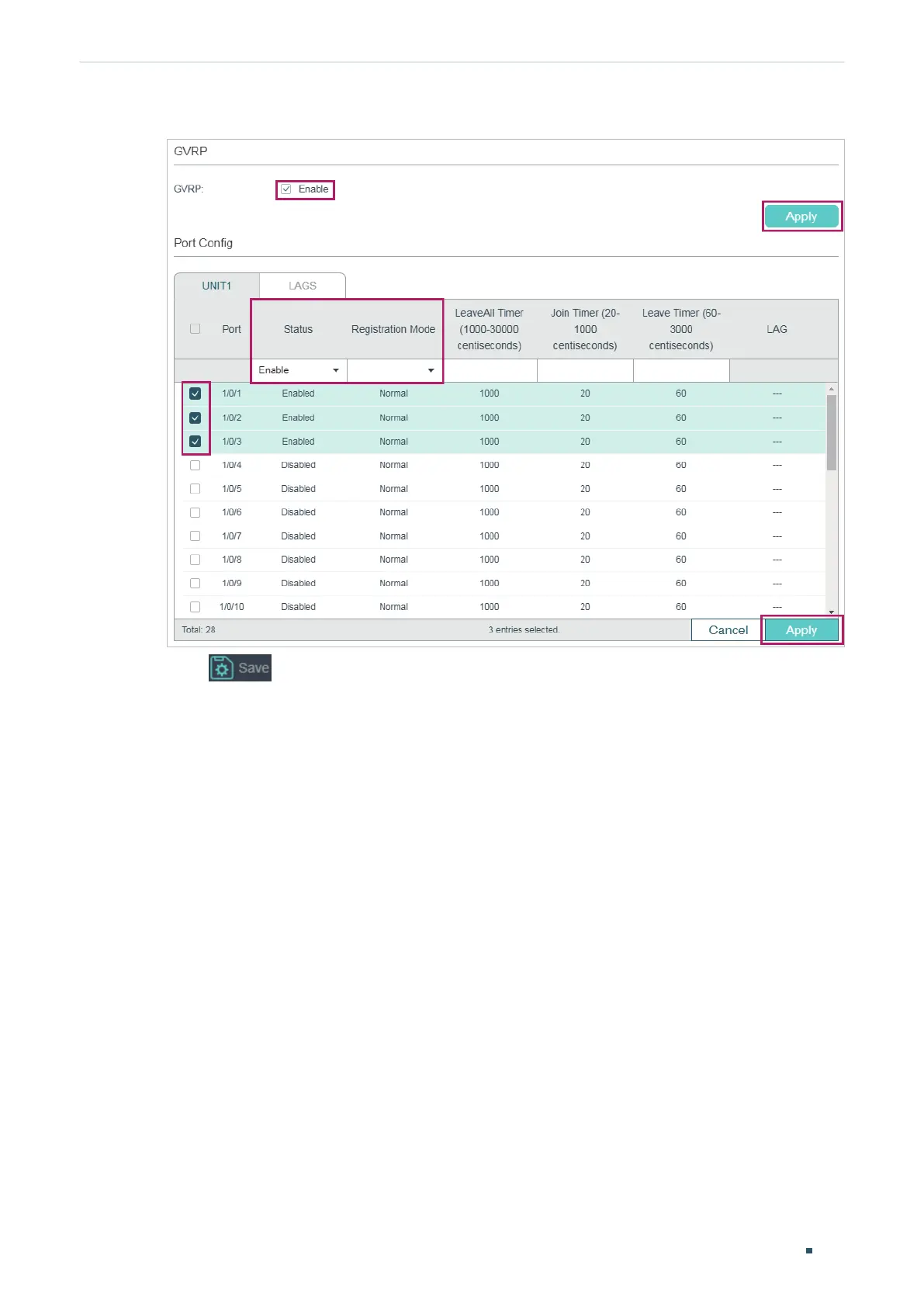

Figure 3-6 GVRP Configuration
2) Click to save the settings.
3.4 Using the CLI
GVRP configurations for Switch 3 is the same as Switch 1, and Switch 4 is the same as
Switch 2. Other switches share similar configurations.
The following configuration procedures take Switch 1, Switch 2 and Switch 5 as examples.
■ Configurations for Switch 1
1) Enable GVRP globally.
Switch_1#configure
Switch_1(config)#gvrp
2) Create VLAN 10.
Switch_1(config)#vlan 10
Switch_1(config-vlan)#name Department_A
Switch_1(config-vlan)#exit
3) Add port 1/0/1 as a tagged port to VLAN 10. Enable GVRP on the port and set the
registration mode as Fixed.
