TP-Link T2600G Series User Manual

User Guide 1084
Diagnosing the Device & Network Diagnosing the Device
1
Diagnosing the Device
The device diagnostics feature provides cable testing, which allows you to troubleshoot
based on the connection status, cable length and fault location.
1.1 Using the GUI
Choose the menu MAINTENANCE > Device Diagnostics to load the following page.

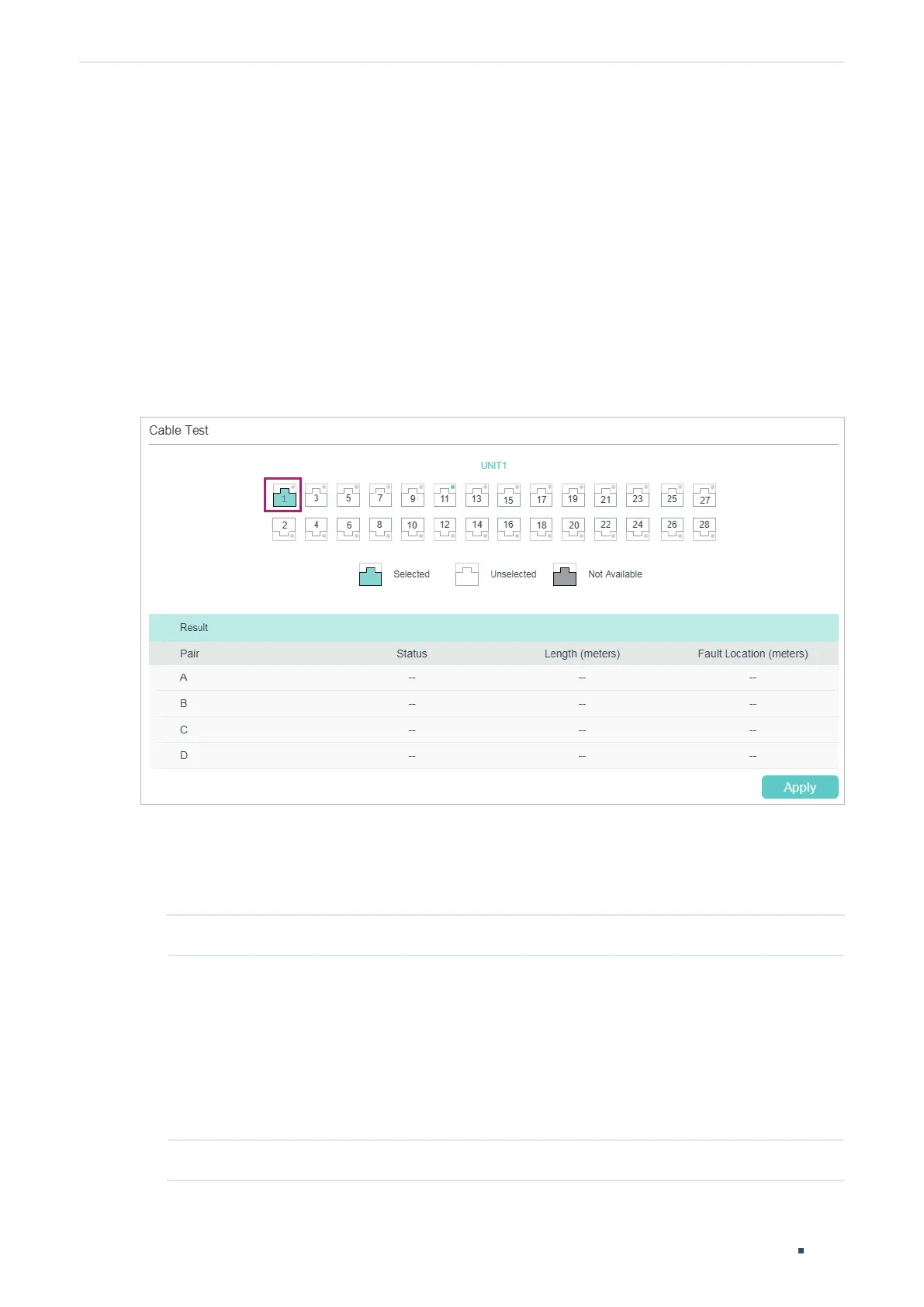

Figure 1-1 Diagnosing the Cable
Follow these steps to diagnose the cable:
1) Select your desired port for the test and click Apply.
2) Check the test results in the Result section.
Pair Displays the Pair number.
Status Displays the cable status. Test results include normal, closed, open and crosstalk.
Normal : The cable is connected normally.
Closed: A short circuit is being caused by abnormal contact of wires in the cable.
Open: No device is connected to the other end or the connection is broken.
Crosstalk: Impedance mismatch due to the poor quality of the cable.
Length If the connection status is normal, the length range of the cable is displayed.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
