TP-Link T2600G Series User Manual

Configuring QoS Configuration Examples
User Guide
665
Demonstrated with T2600G-28TS, the following sections provide configuration procedure
in two ways: using the GUI and using the CLI.
6.1.3 Using the GUI
1) Choose the menu QoS > Class of Service > Port Priority to load the following page.
Set the trust mode of port 1/0/1 and 1/0/2 as untrusted. Specify the 802.1p priority of
port 1/0/1 as 1 and specify the 802.1p priority of port 1/0/2 as 0. Click Apply.

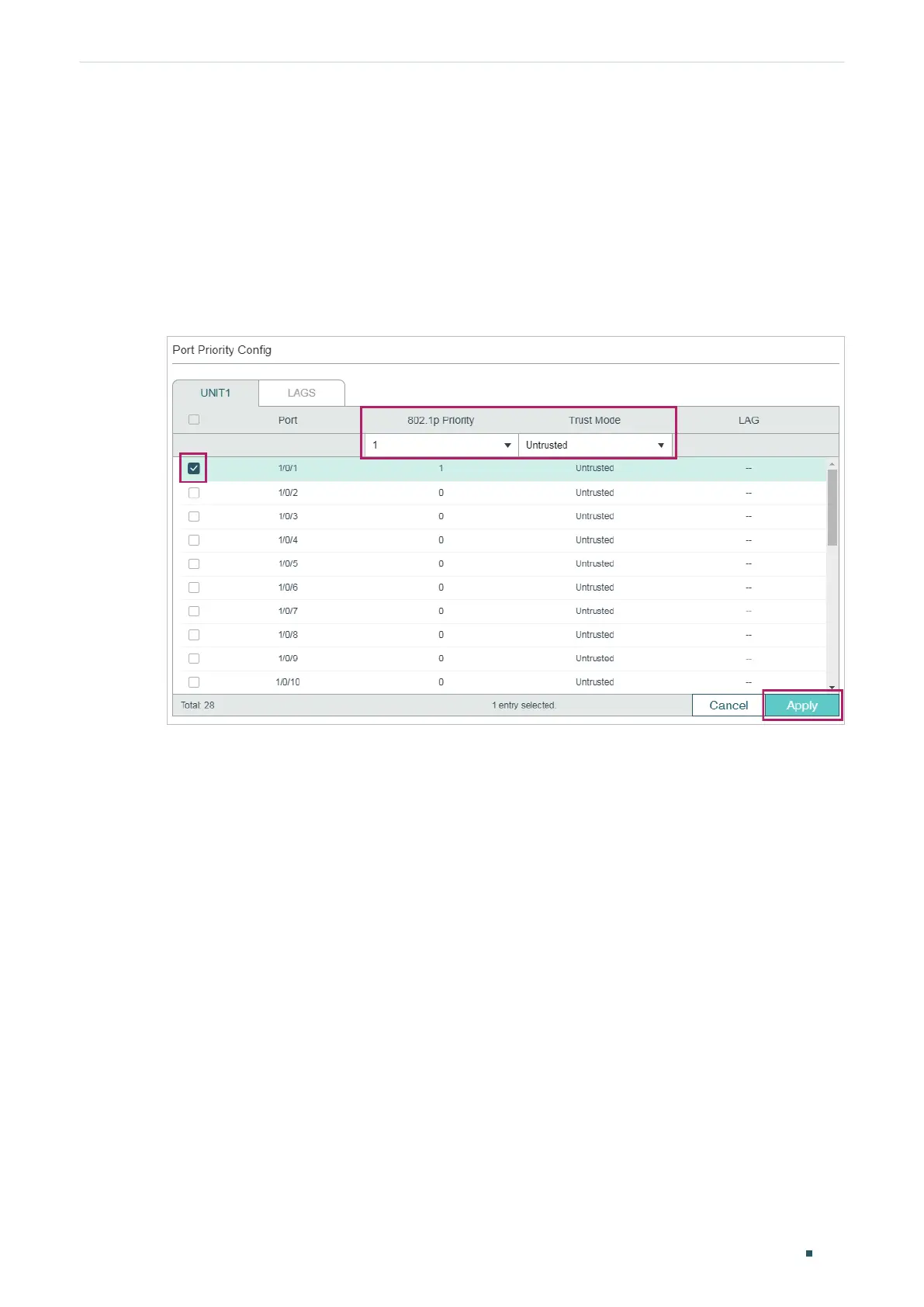

Figure 6-2 Configuring Port Priority
2) Choose the menu QoS > Class of Service > 802.1p Priority to load the following page.
Map the 802.1p priority 0 to TC-1 and map the 802.1p priority 1 to TC-0. Click Apply.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
