TP-Link T2600G Series User Manual

Monitoring Traffic Traffic Monitor
User Guide
947
1
Traffic Monitor
With Traffic Monitor function, you can monitor each port’s traffic information, including the
traffic summary and traffic statistics in detail.
1.1 Using the GUI
Choose the menu MAINTENANCE > Traffic Monitor to load the following page.

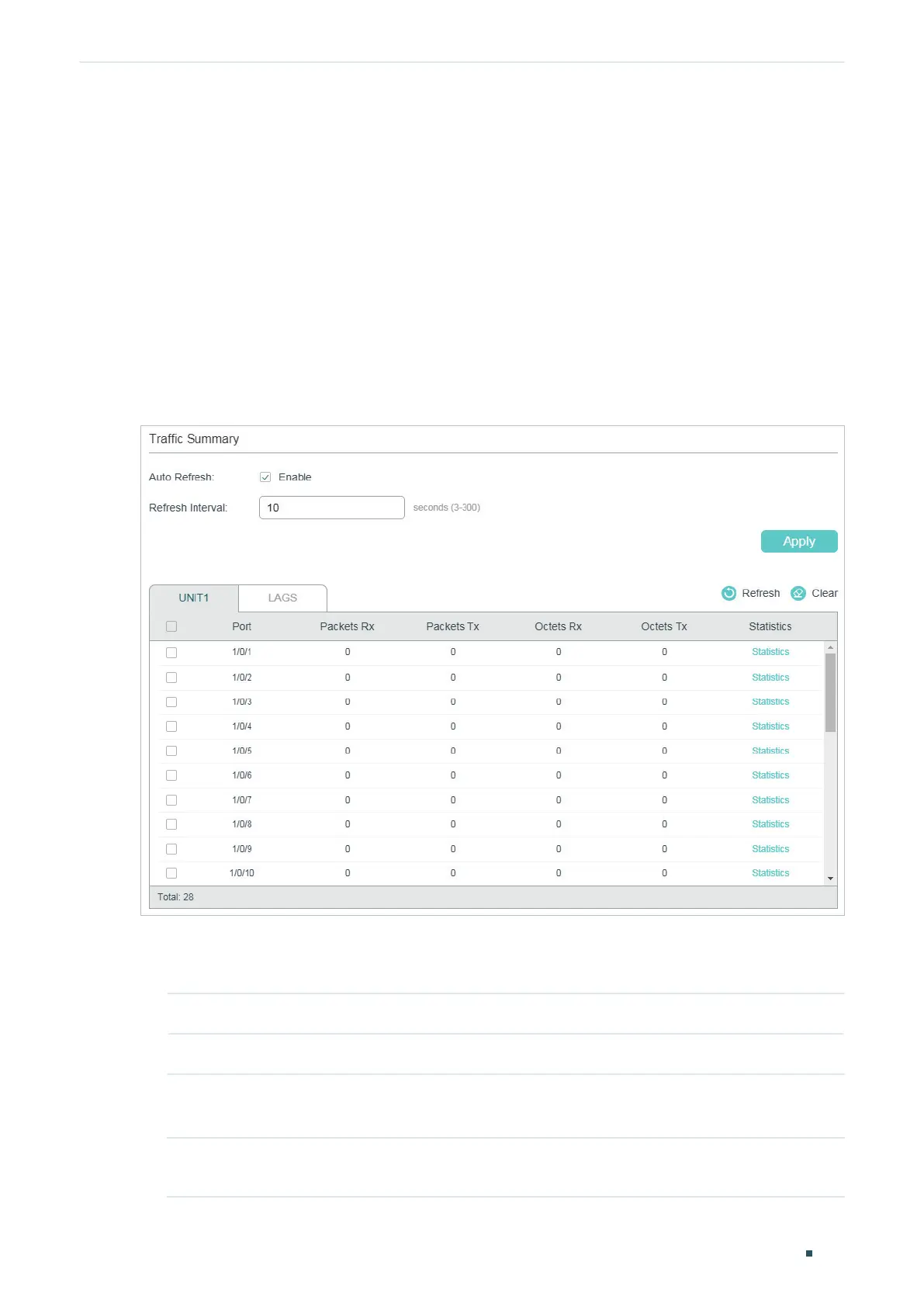

Figure 1-1 Traffic Summary
Follow these steps to view the traffic summary of each port:
1) To get the real-time traffic summary, enable Auto Refresh, or click Refresh.
Auto Refresh: With this option enabled, the switch will automatically refresh the traffic summary.
Refresh Interval: Specify the time interval for the switch to refresh the traffic summary.
2) In the Traffic Summary section, click UNIT1 to show the information of the physical
ports, and click LAGS to show the information of the LAGs.
Packets Rx: Displays the number of packets received on the port. Error packets are not
counted.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
