TP-Link T2600G Series User Manual

Configuring Protocol VLAN Configuration Example
User Guide
209
3
Configuration Example
3.1 Network Requirements
A company uses both IPv4 and IPv6 hosts, and these hosts access the IPv4 network
and IPv6 network respectively via different routers. It is required that IPv4 packets are
forwarded to the IPv4 network, IPv6 packets are forwarded to the IPv6 network, and other
packets are dropped.
The figure below shows the network topology. The IPv4 host belongs to VLAN 10, the IPv6
host belongs to VLAN 20, and these hosts access the network via Switch 1. Switch 2 is
connected to two routers to access the IPv4 network and IPv6 network respectively. The
routers belong to VLAN 10 and VLAN 20 respectively.

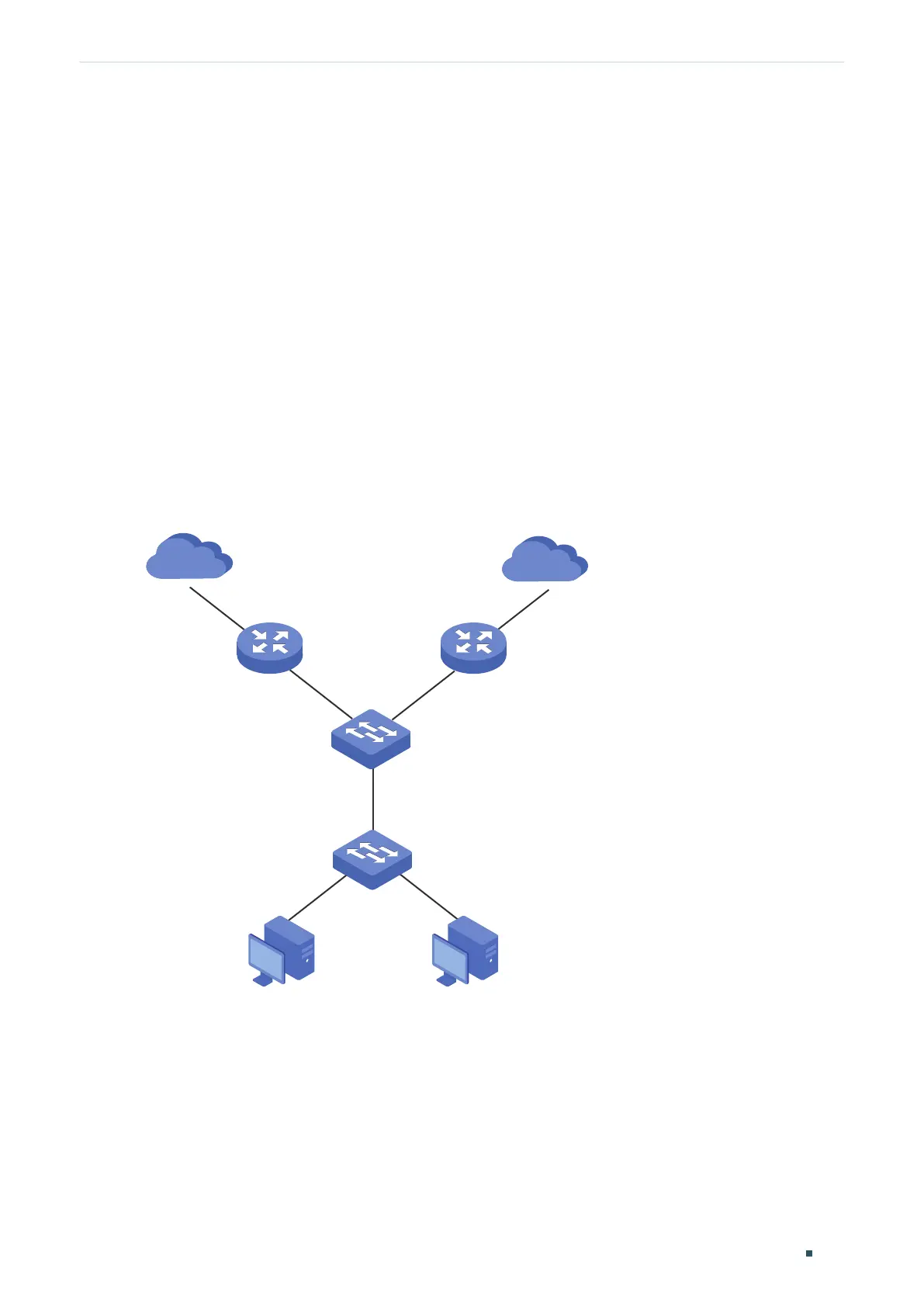

Figure 3-1 Network Topology
IPv4 Host IPv6 Host
Switch 2
Gi1/0/3
VLAN 20
Gi1/0/2
VLAN 20
Gi1/0/1
VLAN 10
Gi1/0/1
Gi1/0/3
Gi1/0/2
VLAN 10
Switch 1
Router 2Router 1
IPv4 Internet
IPv6 Internet
3.2 Configuration Scheme
You can configure protocol VLAN on port 1/0/1 of Switch 2 to meet this requirement.
When this port receives packets, Switch 2 will forward them to the corresponding VLANs
according to their protocol types. The overview of the configuration on Switch 2 is as
follows:

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
