TP-Link T2600G Series User Manual

Configuring PPPoE ID Insertion PPPoE ID Insertion Configuration
User Guide
497
2
PPPoE ID Insertion Configuration
2.1 Using the GUI
Choose the menu L2 FEATURES > PPPoE to load the following page.

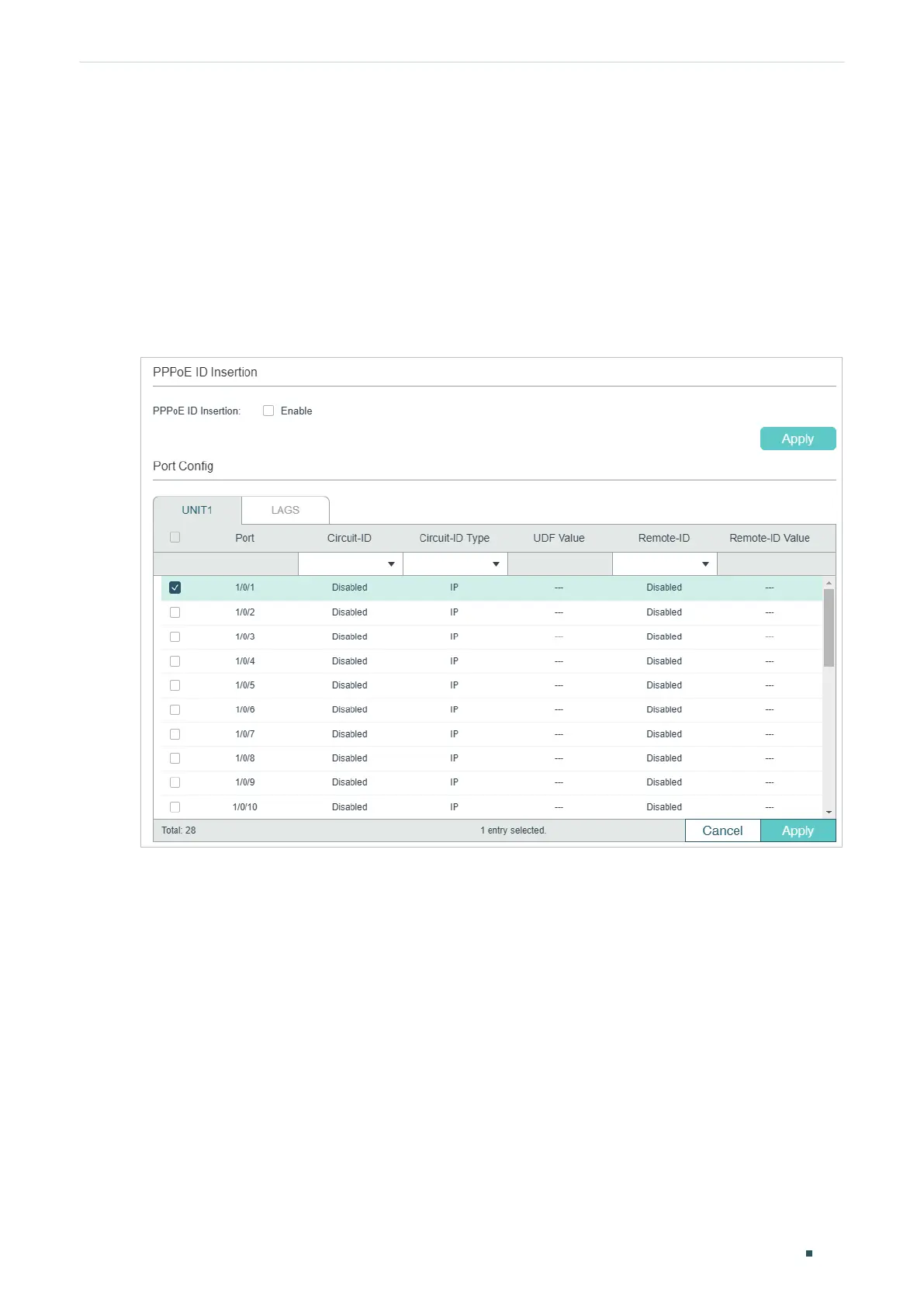

Figure 2-1 Configuring PPPoE ID Insertion
Follow these steps to configure PPPoE ID-Insertion:
1) In the PPPoE ID Insertion section, enable PPPoE ID Insertion and click Apply.
2) In the Port Config section, select one or more ports, and configure the relevant
parameters. Then click Apply.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
