User Guide 252
Configuring VLAN-VPN Configuration Examples

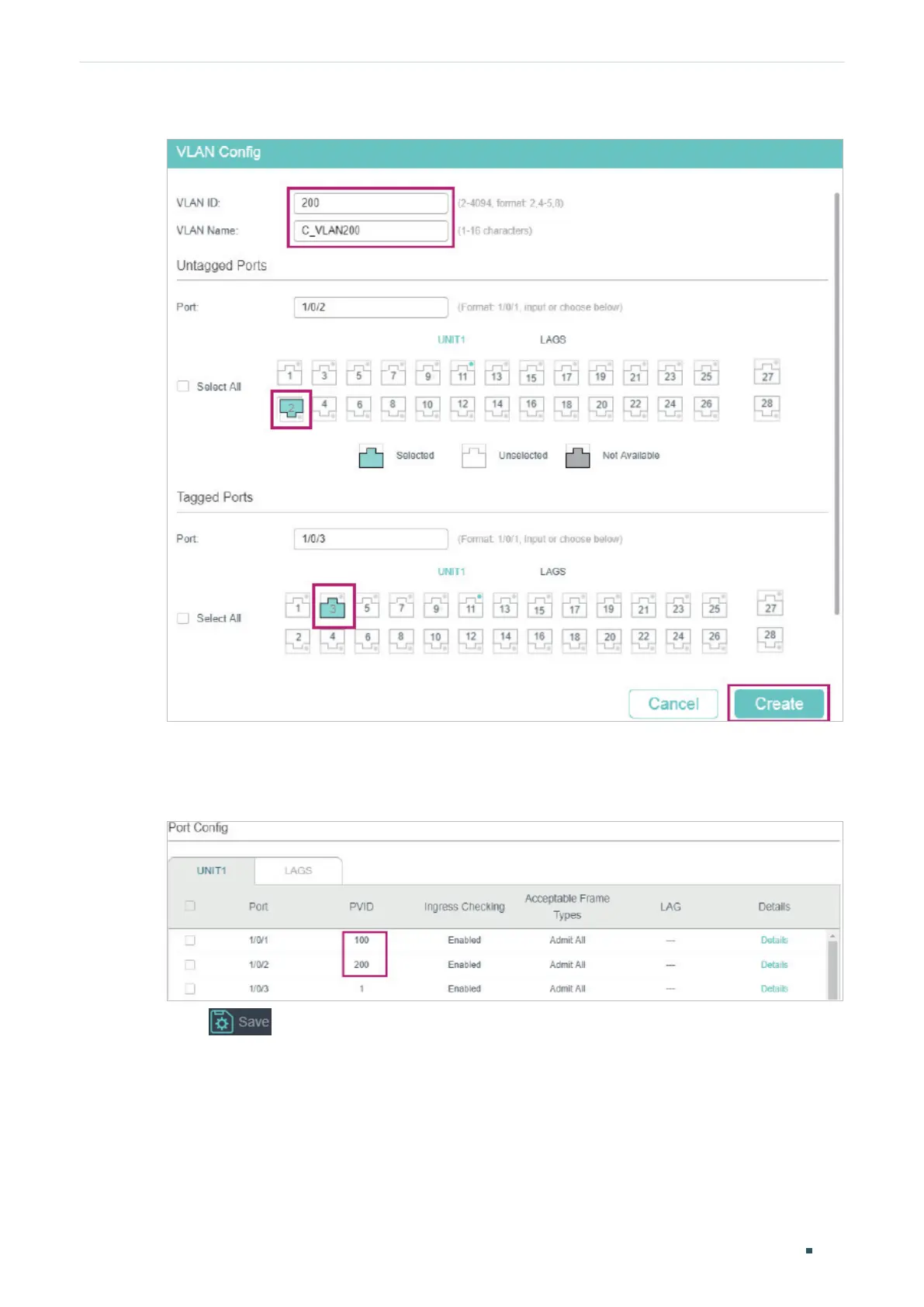

Figure 4-19 Creating VLAN 200
2) Go to L2 FEATURES > VLAN > Port Config to set the PVID as 100 for port 1/0/1 and
200 for port 1/0/2.
Figure 4-20 Configuring PVID
3) Click to save the settings.
4.2.4 Using the CLI
■ Configuring Switch 1
1) Create VLAN 100, VLAN 200, VLAN 1050 and VLAN 1060.
Switch_1#configure
