Configuring sFlow (Only for Certain Devices) Configuration Example
3
Configuration Example
3.1 Network Requirements
The company network manager needs to monitor and analyze the network usage in
department A.

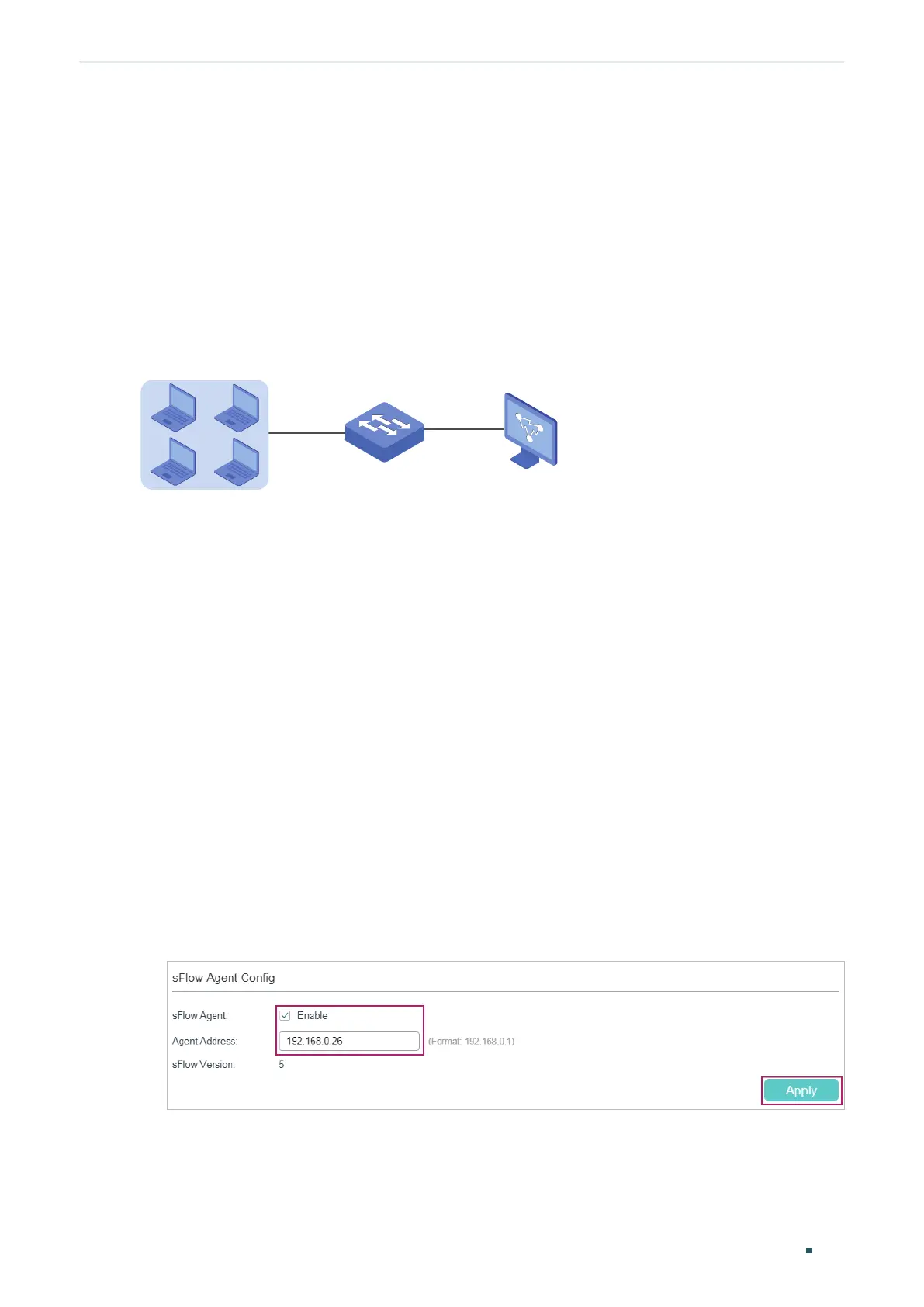

Figure 3-1 Network Topology
IP: 192.168.0.26/24 IP: 192.168.0.27/24
Department A
Switch
PC
Gi1/0/1
Gi1/0/2
3.2 Configuration Scheme
The network manager can configure sFlow to monitor and analyze the network. Set the
switch as the sFlow Agent that collects traffic data on port 1/0/1, and configure an sFlow
Collector on the PC to process sFlow packets and display results.
Demonstrated with T2600G-28TS, this chapter provides configuration procedures in two
ways: using the GUI and Using the CLI.
3.3 Using the GUI
1) Choose the menu MAINTENANCE > sFlow > sFlow Agent to load the following page.
Enable sFlow Agent, set the switch IP address 192.168.0.26 as the Agent address, and
click Apply.
Figure 3-2 Configuring sFlow Agent
2) Choose the menu MAINTENANCE > sFlow > sFlow Collector to load the following
page. Select Collector 1, enter the PC’s IP address 192.168.0.27 as the Collector IP
address, and click Apply.
