TP-Link T2600G Series User Manual

User Guide 756
Configuring 802.1x 802.1x Configuration
Note:
If a port is in an LAG, its 802.1x authentication function cannot be enabled. Also, a port with 802.1x
authentication enabled cannot be added to any LAG.
2.1.4 View the Authenticator State
Choose the menu SECURITY > 802.1x > Authenticator State to load the following page.

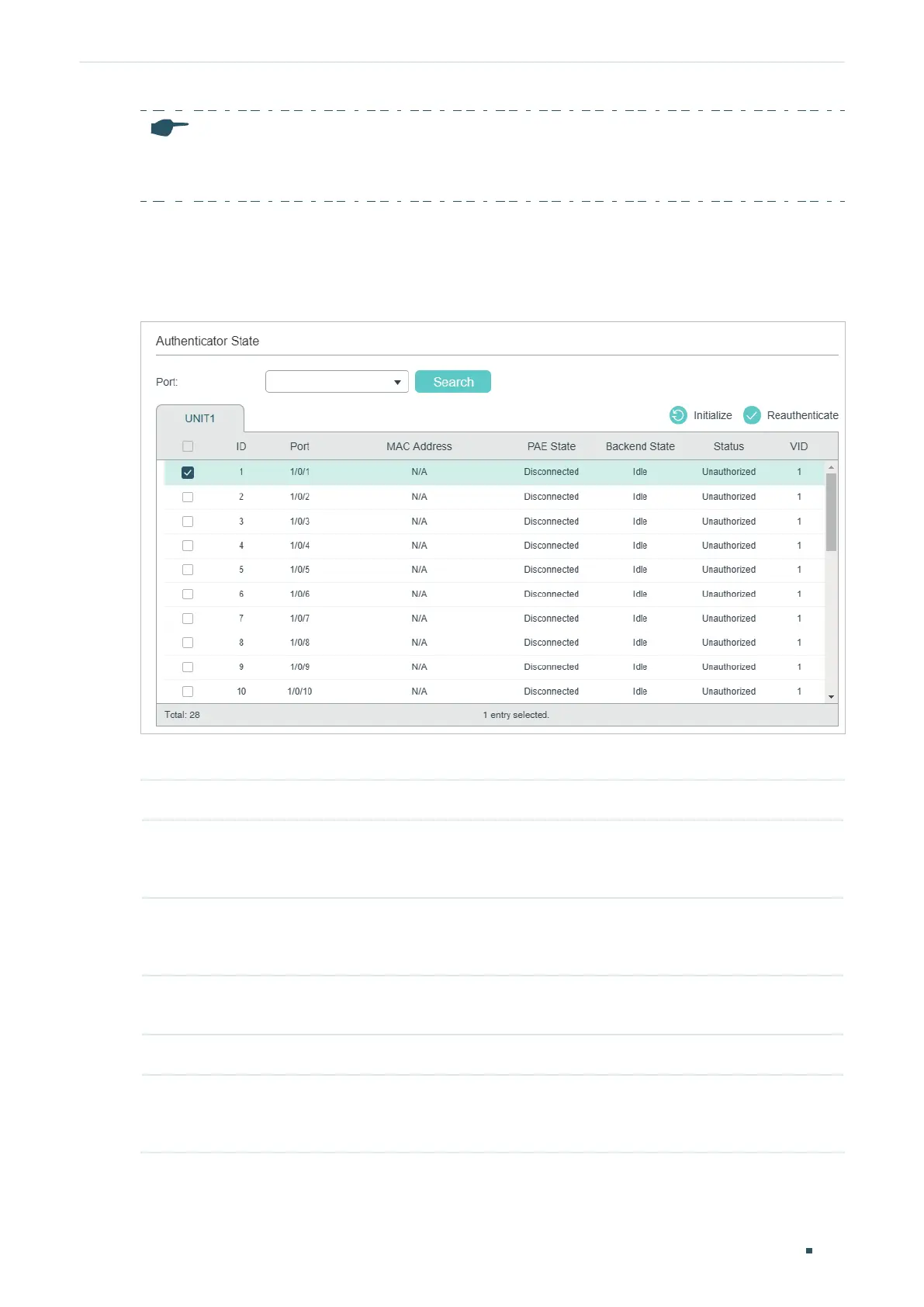

Figure 2-8 View Authenticator State
On this page, you can view the authentication status of each port:
Port Displays the port number.
MAC Address Displays the MAC address of the authenticated device. When the port method is Port
Based, the MAC address of the first authenticated device wil be displayed with a suffix
“p”.
PAE State Displays the current state of the authenticator PAE state machine. Possible values are:
Initialize, Disconnected, Connecting, Authenticating, Authenticated, Aborting, Held,
ForceAuthorized and ForceUnauthorized.
Backend State Displays the current state of the backend authentication state machine. Possible
values are: Request, Response, Success, Fail, Timeout, Initialize and Idle.
Status Displays whether the port is authorized or not.
VID Displays the VLAN ID assigned by the authenticator to the supplicant device when the
related port is authorized. If the related port is unauthorized and there is a Guest VLAN
ID, the Guest VLAN ID will be displayed.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
