User Guide 470
Configuring LLDP Configuration Examples

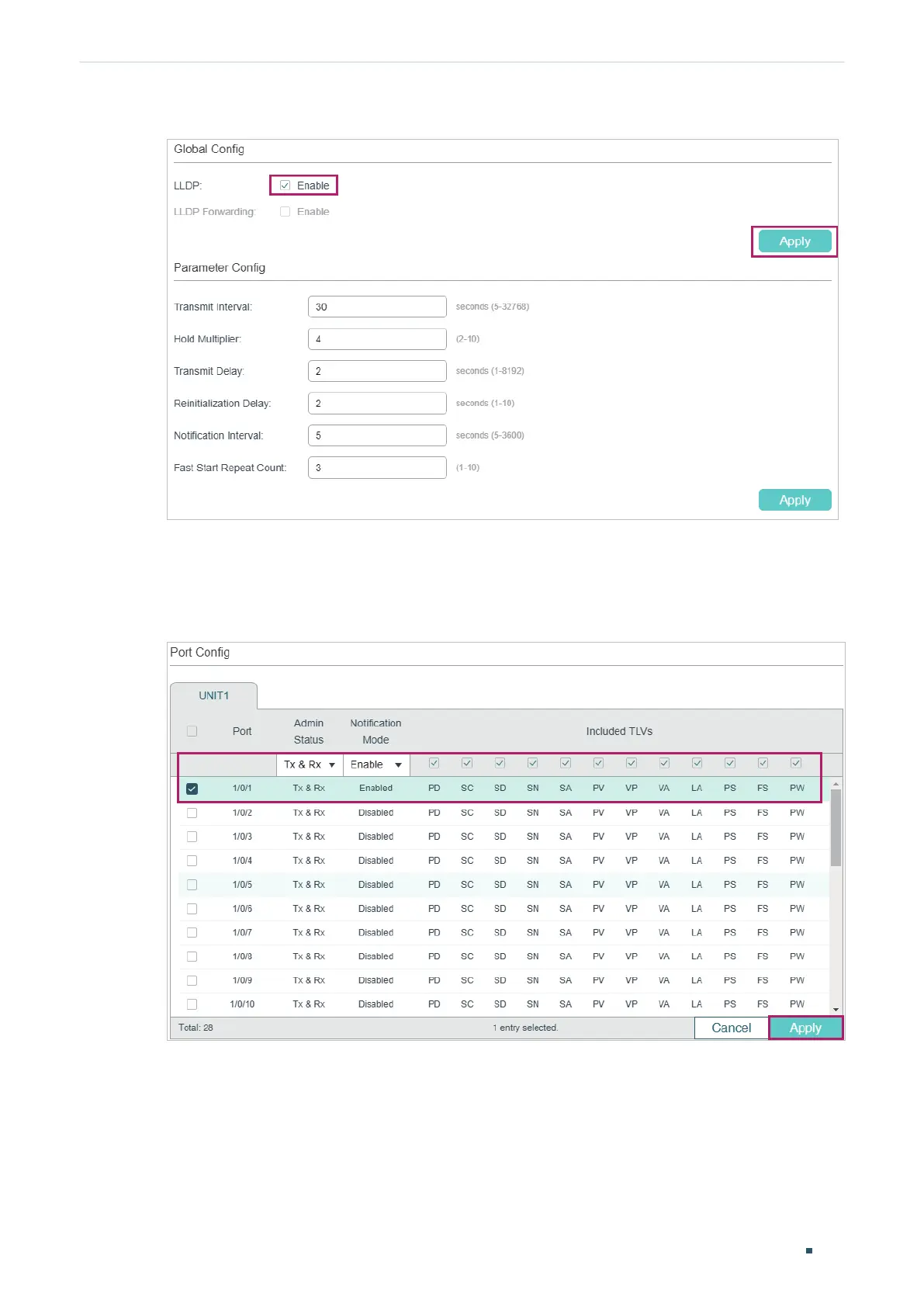

Figure 6-2 LLDP Global Config
2) Choose the menu L2 FEATURES > LLDP > LLDP Config > Port Config to load the
following page. Set the Admin Status of port Gi1/0/1 as Tx&Rx, enable Notification Mode
and configure all the TLVs included in the outgoing LLDP packets.
Figure 6-3 LLDP Port Config
6.1.4 Using CLI
1) Enable LLDP globally and configure the corresponding parameters.
Switch_A#configure
Switch_A(config)#lldp
