TP-Link T2600G Series User Manual

Managing MAC Address Table Address Configurations
User Guide
151
Choose the menu L2 FEATURES > Switching > MAC Address > Address Table and click
to load the following page.

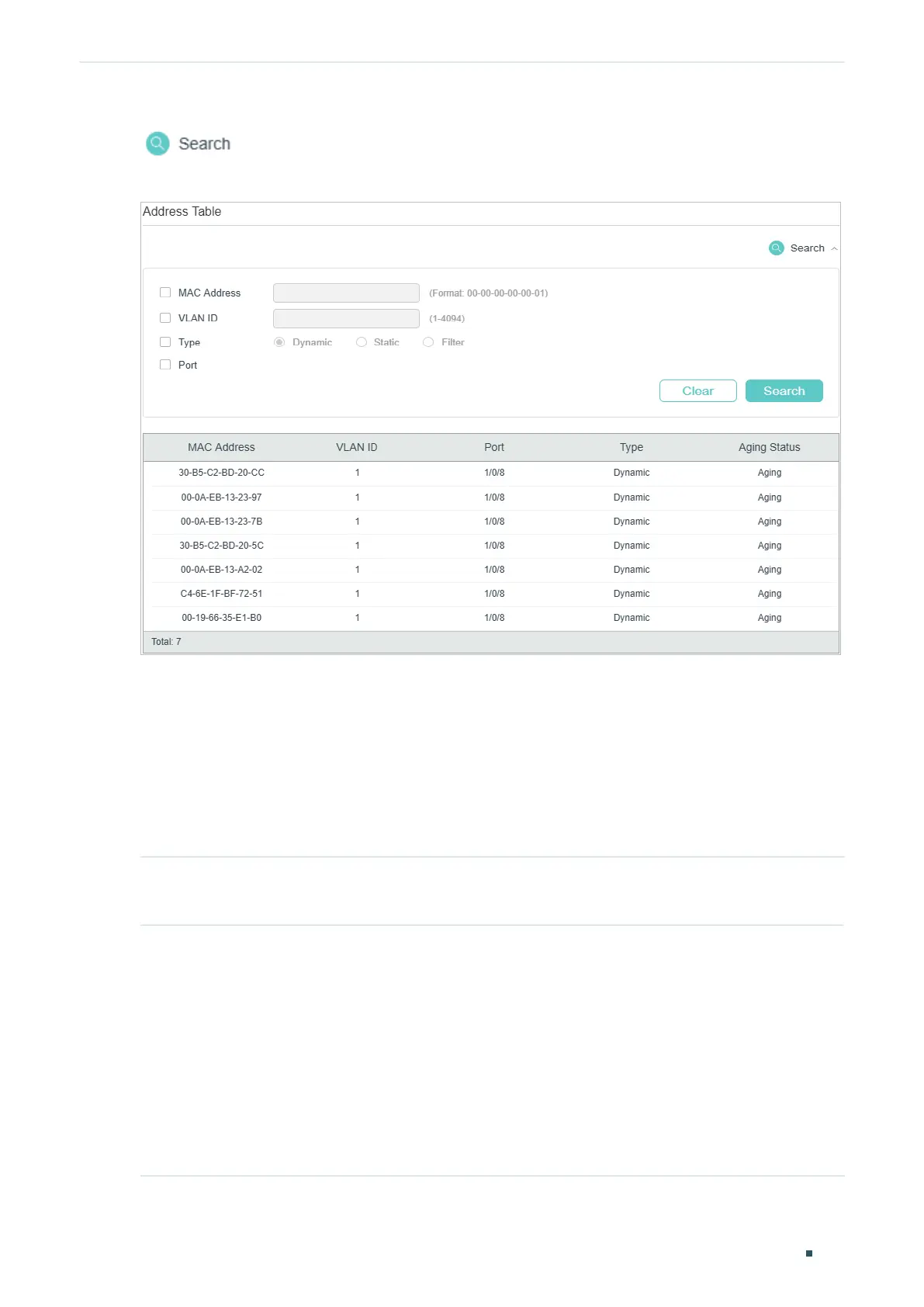

Figure 2-5 Viewing Address Table Entries
2.2 Using the CLI
2.2.1 Adding Static MAC Address Entries
Follow these steps to add static MAC address entries:
Step 1 configure
Enter global configuration mode.
Step 2 mac address-table static
mac-addr vid vid interface { fastEthernet port | gigabitEthernet
port | ten-gigabitEthernet port }
Bind the MAC address, VLAN and port together to add a static address to the VLAN.
mac-addr : Enter the MAC address, and packets with this destination address received in the
specified VLAN are forwarded to the specified port. The format is xx:xx:xx:xx:xx:xx, for example,
00:00:00:00:00:01.
vid : Specify an existing VLAN in which packets with the specific MAC address are received.
port: Specify a port to which packets with the specific MAC address are forwarded. The port
must belong to the specified VLAN.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
