TP-Link T2600G Series User Manual

Configuring Spanning Tree STP Security Configurations
User Guide
423
4
STP Security Configurations
4.1 Using the GUI
Choose the menu L2 FEATURES > Spanning Tree > STP Security to load the following
page.

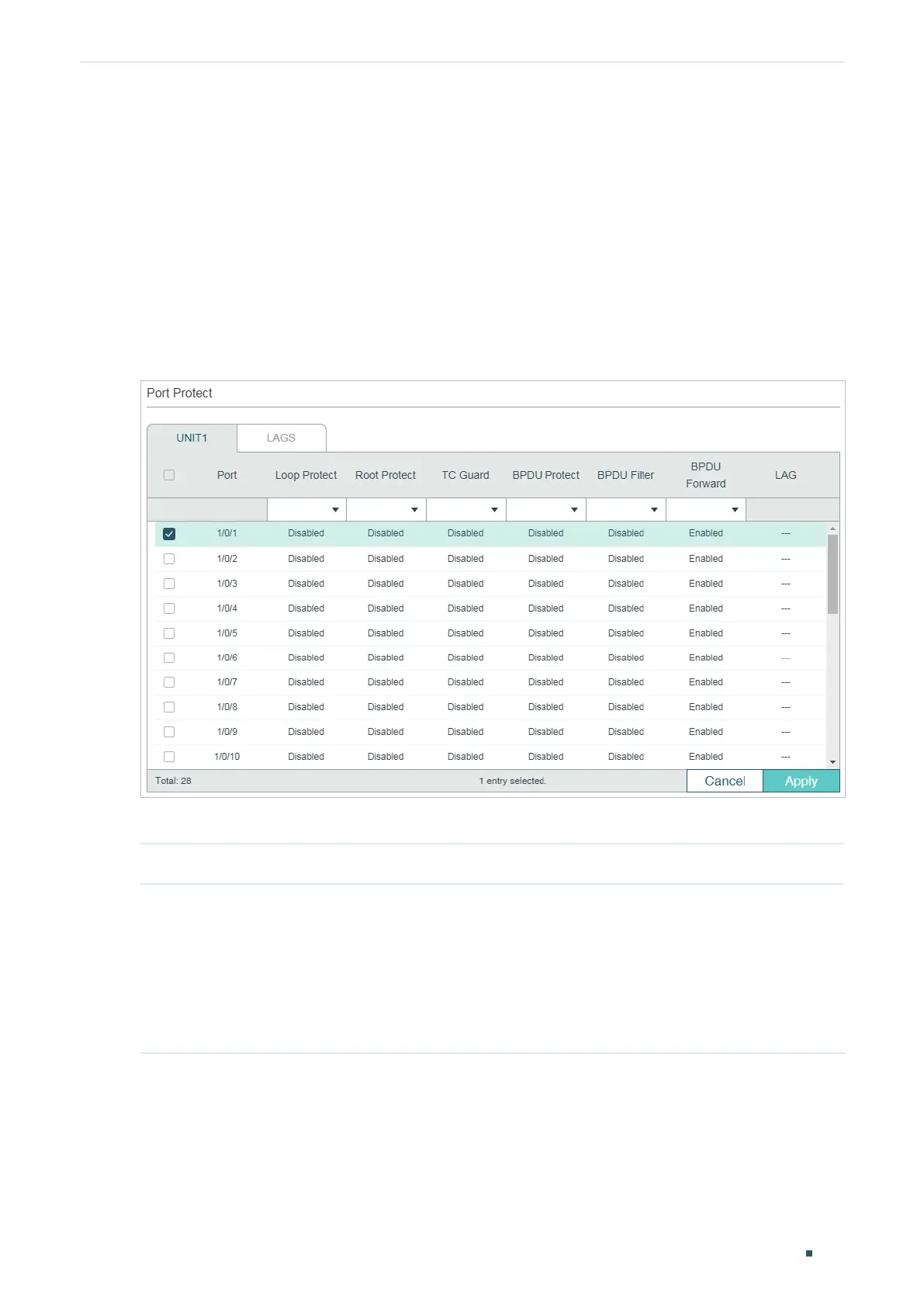

Figure 4-1 Configuring the Port Protect
Configure the Port Protect features for the selected ports, and click Apply.
UNIT Select the desired unit or LAGs for configuration.
Loop Protect Enable or disable Loop Protect. It is recommended to enable this function on
root ports and alternate ports.
When there are link congestions or link failures in the network, the switch will not
receive BPDUs from the upstream device in time. Loop Protect is used to avoid
loop caused by the recalculation in this situation. With Loop Protect function
enabled, the port will temporarily transit to a blocking state after it does not
receive BPDUs in time.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
