TP-Link T2600G Series User Manual

Configuring MAC VLAN Configuration Example
User Guide
189
3
Configuration Example
3.1 Network Requirements
Two departments share all the meeting rooms in the company, but use different servers
and laptops. Department A uses Server A and Laptop A, while Department B uses Server B
and Laptop B. Server A is in VLAN 10 while Server B is in VLAN 20. It is required that Laptop
A can only access Server A and Laptop B can only access Server B, no matter which
meeting room the laptops are being used in. The figure below shows the network topology.

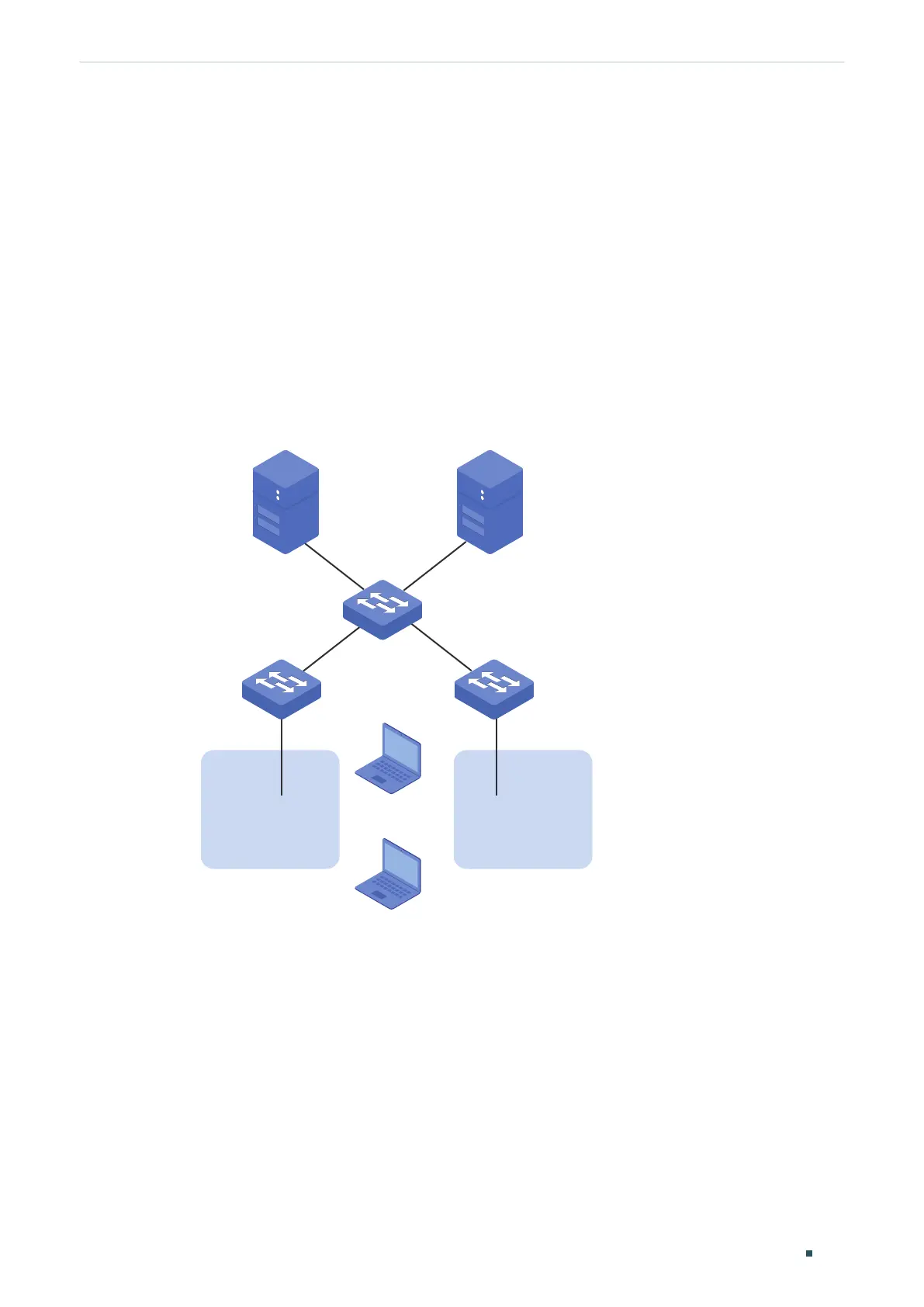

Figure 3-1 Network Topology
Meeting Room 1
Laptop A
00-19-56-8A-4C-71
Laptop B
00-19-56-82-3B-70
Meeting Room 2
Switch 3
Gi1/0/3Gi1/0/2
Gi1/0/2 Gi1/0/2
Gi1/0/1Gi1/0/1
Gi1/0/5
Gi1/0/4
Switch 1 Switch 2
Server B
VLAN 20
Server A
VLAN 10
3.2 Configuration Scheme
You can configure MAC VLAN to meet this requirement. On Switch 1 and Switch 2, bind the
MAC addresses of the laptops to the corresponding VLANs respectively. In this way, each
laptop can access only the server in the VLAN it joins, no matter which meeting room the
laptops are being used in. The overview of the configuration is as follows:
1) Create VLAN 10 and VLAN 20 on each of the three switches and add the ports to the
VLANs based on the network topology. For the ports connecting to the laptops, set the

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
