Configuring 802.1Q VLAN 802.1Q VLAN Configuration
User Guide
169
2.1 Using the GUI
2.1.1 Configuring the VLAN
Choose the menu L2 FEATURES > VLAN > 802.1Q VLAN > VLAN Config and click
to load the following page.

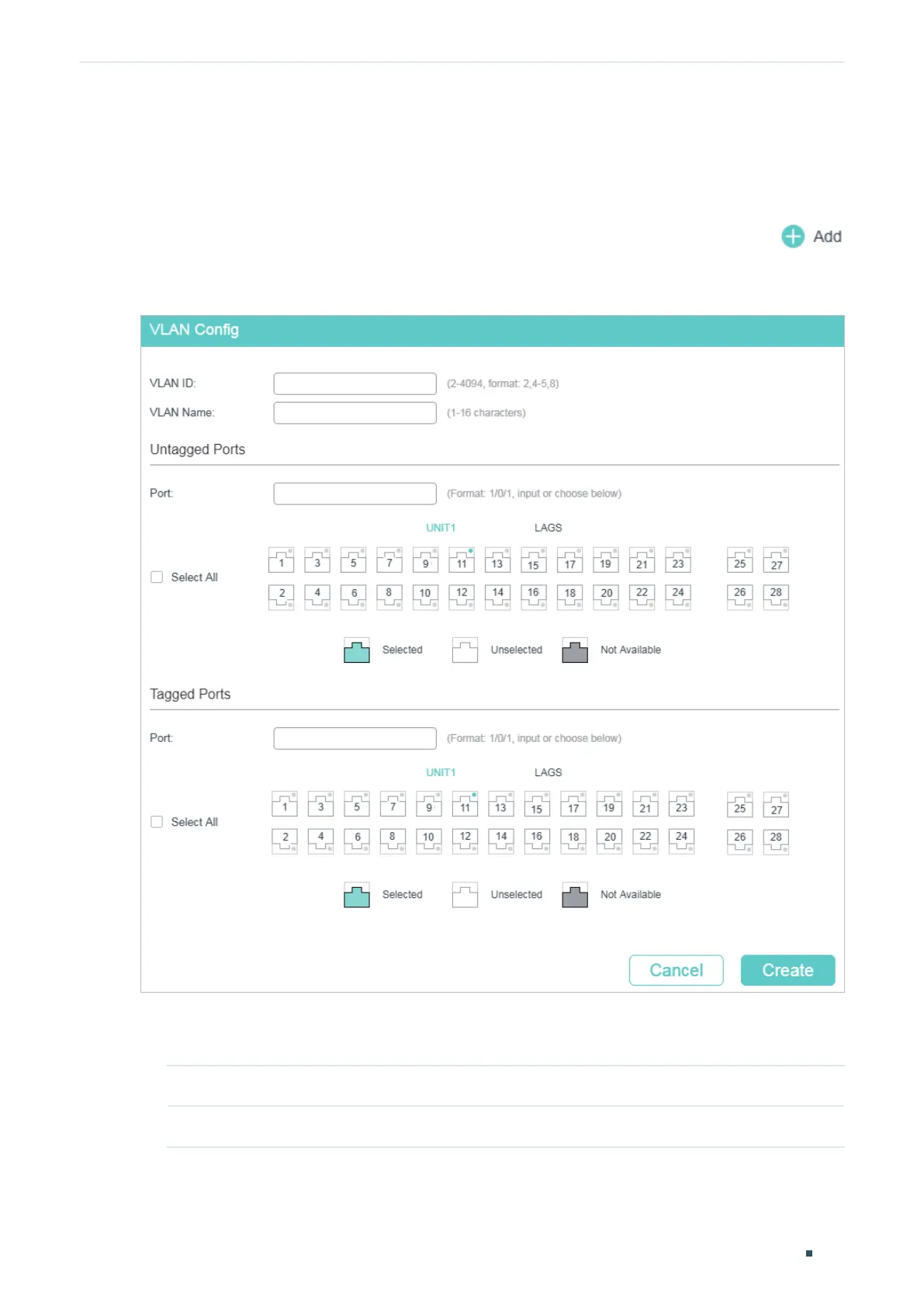

Figure 2-1 Configuring VLAN
Follow these steps to configure VLAN:
1) Enter a VLAN ID and a description for identification to create a VLAN.
VLAN ID Enter a VLAN ID for identification with the values between 2 and 4094.
VLAN Name Give a VLAN description for identification with up to 16 characters.
2) Select the untagged port(s) and the tagged port(s) respectively to add to the created
VLAN based on the network topology.
