TP-Link T2600G Series User Manual

Configuring ACL Configuration Example for ACL
User Guide
841

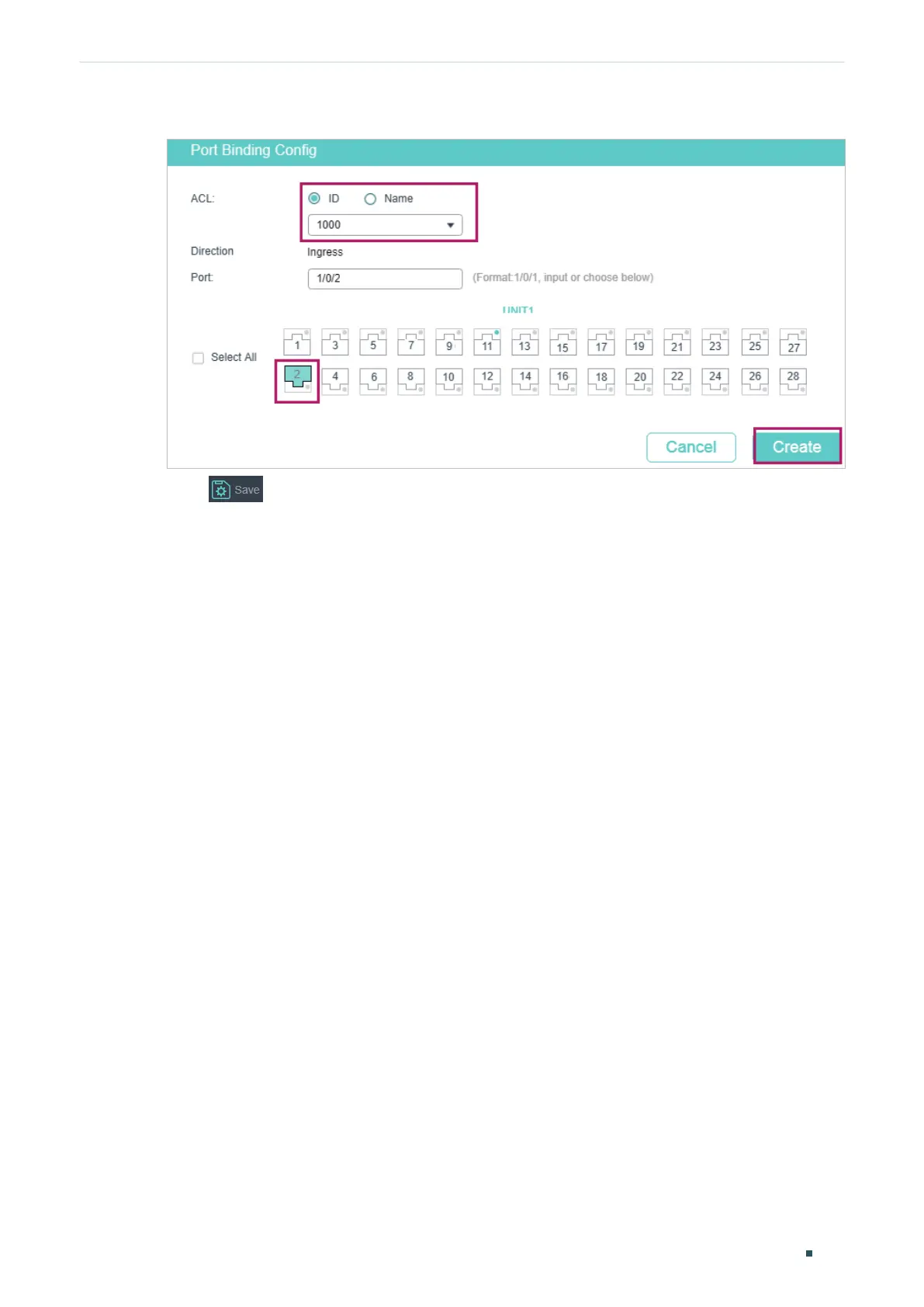

Figure 3-30 Binding the ACL to Port 1/0/2
8) Click to save the settings.
3.3.4 Using the CLI
1) Create a Combined ACL.
Switch#configure
Switch(config)#access-list create 1000 name ACL_Telnet
2) Configure rule 5 to permit packets with the source MAC address 6C-62-6D-F5-BA-48
and destination port TCP 23 (Telnet service port).
Switch(config)#access-list combined 1000 rule 5 permit logging disable smac
6C:62:6D:F5:BA: 48 smask FF: FF: FF: FF: FF: FF type 0800 protocol 6 d-port 23 d-port-
mask FFFF
3) Configure rule 15 to deny all the packets except the packet with source MAC address
6C-62-6D-F5-BA-48, and destination port TCP 23 (Telnet service port).
Switch(config)#access-list combined 1000 rule 15 deny logging disable type 0800
protocol 6 d-port 23 d-port-mask FFFF
4) Configure rule 25 to permit all the packets. The rule makes sure that all devices can get
other network services normally.
Switch(config)#access-list combined 1000 rule 25 permit logging disable type 0800
protocol 6 d-port 23 d-port-mask FFFF
5) Bind ACL500 to port 1/0/2.
Switch(config)#access-list bind 500 interface gigabitEthernet 1/0/2
Switch(config)#end
Switch#copy running-config startup-config

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
