Mirroring Traffic Configuration Examples
2
Configuration Examples
2.1 Network Requirements
As shown below, several hosts and a network analyzer are directly connected to the switch.
For network security and troubleshooting, the network manager needs to use the network
analyzer to monitor the data packets from the end hosts.

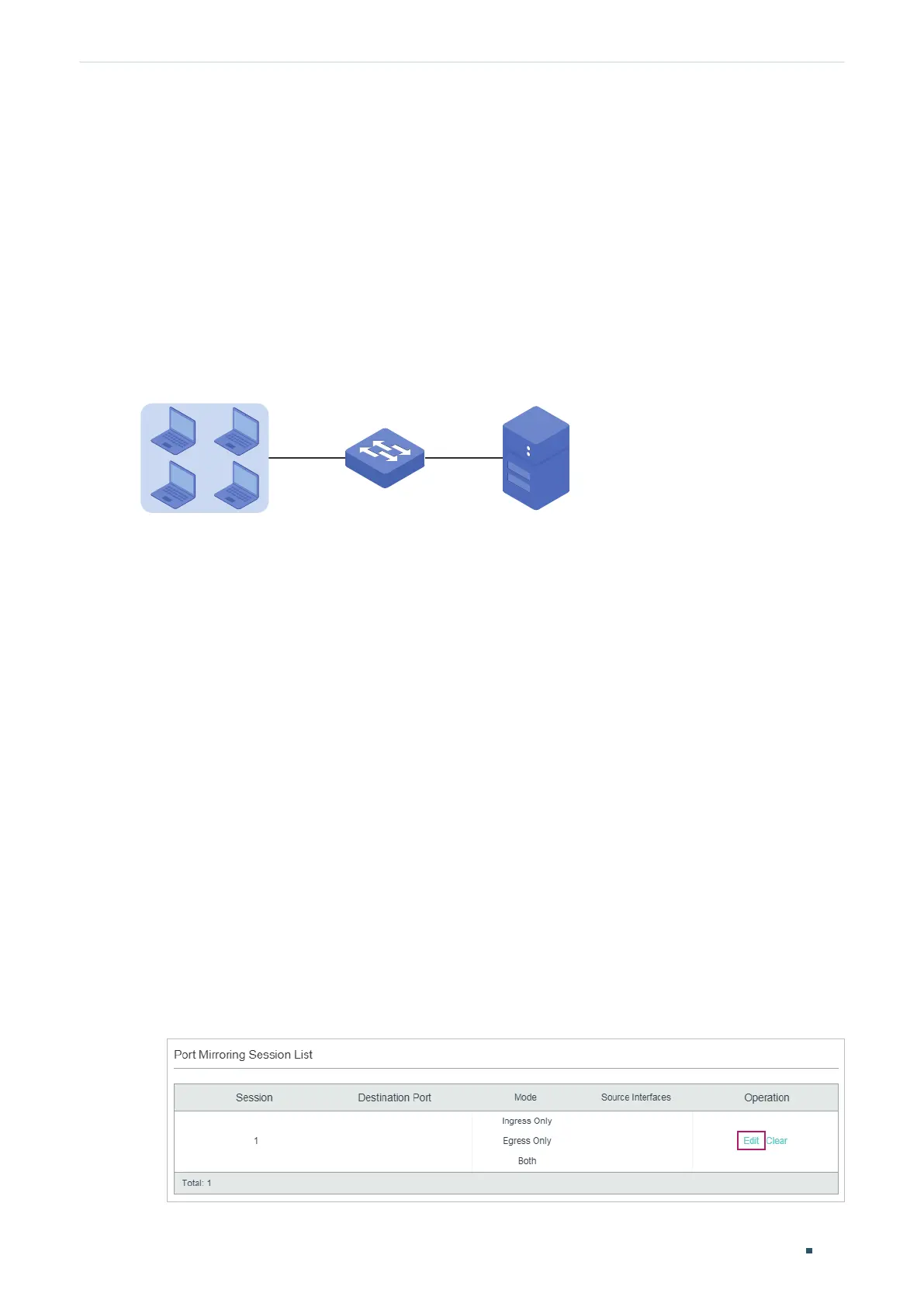

Figure 2-1 Network Topology
Switch
Network Analyzer
Hosts
Gi1/0/2-5
Gi1/0/1
2.2 Configuration Scheme
To implement this requirement, you can use Mirroring feature to copy the packets from
ports 1/0/2-5 to port 1/0/1. The overview of configuration is as follows:
1) Specify ports 1/0/2-5 as the source ports, allowing the switch to copy the packets from
the hosts.
2) Specify port 1/0/1 as the destination port so that the network analyzer can receive
mirrored packets from the hosts.
Demonstrated with T2600G-28TS, the following sections provide configuration procedure
in two ways: using the GUI and using the CLI.
2.3 Using the GUI
1) Choose the menu MAINTENANCE > Mirroring to load the following page. It displays the
information of the mirroring session.
Figure 2-2 Mirror Session List

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
