Configuring ACL ACL Configuration

User Guide

799

Configuring the Packet Content ACL Rule

Note:

Packet Content ACL is not available for T2600G-18TS.

Click Edit ACL for a Packet Content ACL entry to load the following page.

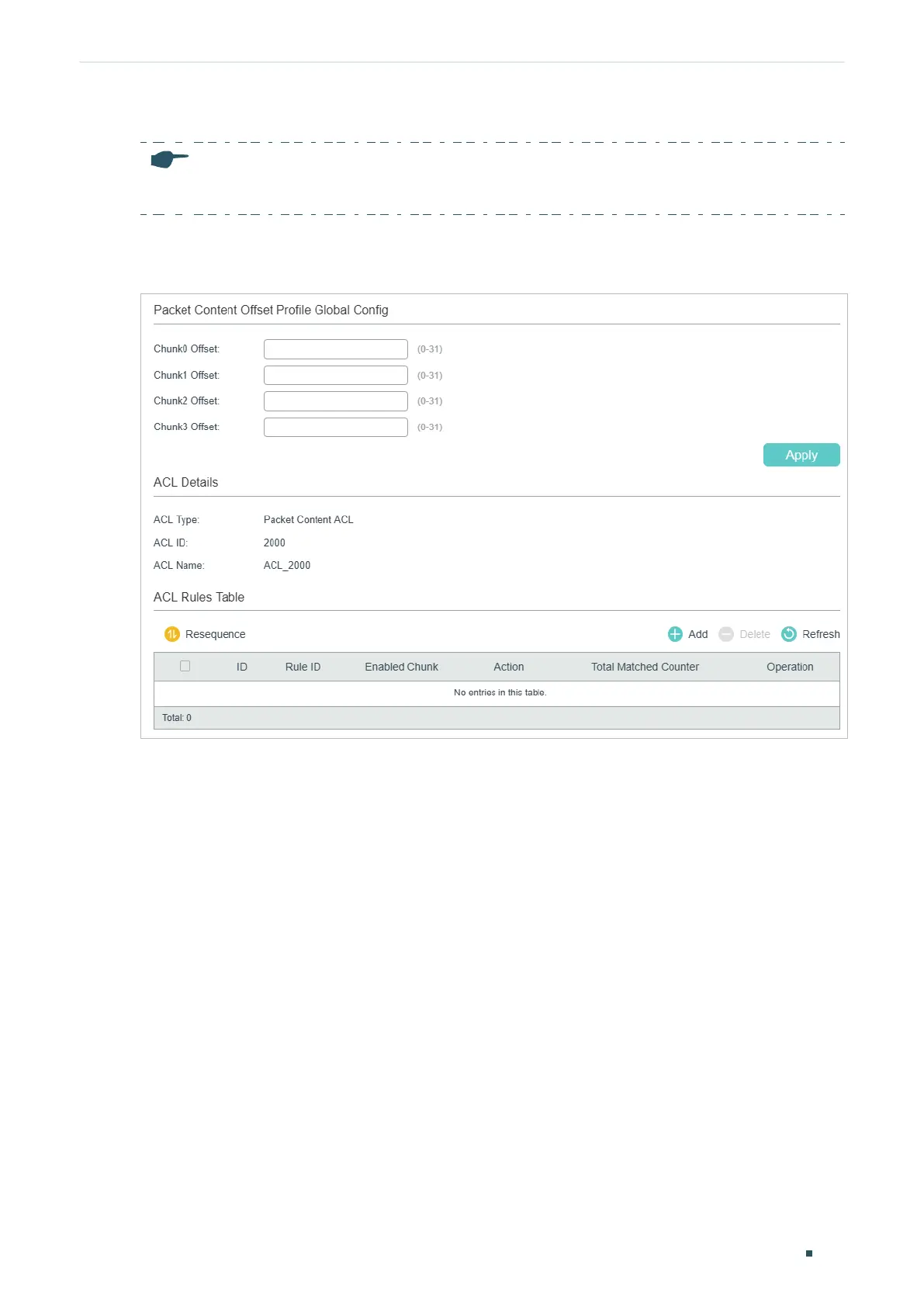

Figure 2-27 Configuring the Packet Content ACL Rule
